40 D33363 | Date 01/2020
Menu mode
1. Activate the
SETUP display and select
Alarm temp with the turn control.
SETUP
Unit
IP address 255.145.136.225
Subnet mask 255.255. 0. 0
Alarm temp
°C F
TWW TWB
Timer mode
Slid i i
2. Accept the selection by pressing the con-
firmation key. The adjustment options are
automatically highlighted.
SETUP
Unit
IP address 255.145.136.225
Subnet mask 255.255. 0. 0
Alarm temp
°C F
TWW TWB
Timer mode
3. With the turn control, select the desired
setting – in this example TWB.
SETUP
Unit
IP address 255.145.136.225
Subnet mask 255.255. 0. 0
Alarm temp
°C F
TWW TWB
Timer mode
Slid i it
4. Save the setting by pressing the confir-
mation key.
SETUP
Unit
IP address 255.145.136.225
Subnet mask 255.255. 0. 0
Alarm temp
°C F
TWW TWB
Timer mode
Slid i it
5. Select Max Alarm with the turn control.
SETUP
Max Alarm
190 °C
2/2
6. Accept the selection by pressing the
confirmation key. The current settings are
automatically highlighted.
SETUP
Max Alarm
190 °C
2/2
7. With the turn control, select the desired
new trigger temperature - in this example
160 °C.
SETUP
Max Alarm
160 °C
2/2
8. Save the setting by pressing the confir-
mation key. The electronic temperature
monitoring system will now be triggered
when the actual temperature reaches 160
°C.
SETUP
Max Alarm
160 °C
2/2
D33363 | Date 01/2020 41
Menu mode
7.3.4 Timer Mode
Here, you can choose whether the digital backwards counter with
target time setting (see page 29, timer) should run setpoint-
dependent or not – this determines whether the timer should
not start until a tolerance band of ±3 K around the set
temperature is reached (Fig. 23, B) or whether it should start
right after activation (A).
t
Timer
t
Timer
A
B
°C/°F
t
6 K
Fig. 23 Timer Mode
A Timer independent of setpoint: Timer starts right after activation
B Timer setpoint-dependent: Timer does not start until tolerance band is reached
If the temperature tolerance band is exceeded in setpoint-dependent operation, the timer will
be interrupted and only be resumed when the setpoint temperature has been reached again.
7.3.5 Type of the slide-in unit (Grid or Shelf)
Here, you have to set the type of the slide-in unit (grid or shelf)
used. The selection Shelf enables you to adjust the control
function to the different air flow characteristics in the interior
when using optional sliding shelves instead of the grids that are
part of the standard delivery.
7.3.6 Remote control
In the setup entry Remote control, you can set whether the
appliance should be controlled via remote control and if
so, in which mode. These settings are available:
► Off
► Read Only
► Write + Read
► Write + Alarm
When the appliance is in remote control mode, the
symbol appears in the temperature display. In the
settings
Write + Read and Write + Alarm, the appliance
cannot be controlled at the ControlCOCKPIT until the
remote control has been switched off (setting Off) or set
to
Read Only.
In order to use the remote control function, program-
ming skills and special libraries are required.
SETUP
Unit
IP address 255.145.136.225
Subnet mask 255.255. 0 .0
Alarm temp
°C F
TWW TWB
Timer mode
Unit
IP adress 255. 145.136.225
Subnet mask 255.255. 0 .0
°C °F
Timer mode
Alarm temp
TWW TWB
Slide-in unit
Grid Shelf
Setup
Balance
Remote Control Off
Gateway 192.168.5 .1
+30 %
2/2
23.2 °C
TEMP
Set 38
.0 °C
42 D33363 | Date 01/2020
Menu mode
7.3.7 Gateway
The setup entry Gateway is used to connect two networks
with different protocols.
The gateway is set the same way as the IP address (see
page 38).
7.4 Date and Time
In the Time display, you can set date and time, time zone and daylight saving time. Changes
can only be made in manual operating mode.
Always set the time zone (and summer time yes/no) before you set the date and time.
Avoid changing the set time after that since this can lead to gaps or overlapping when
recording measured values. If you still need to change the time, you should not run a
programme immediately before or after doing so.

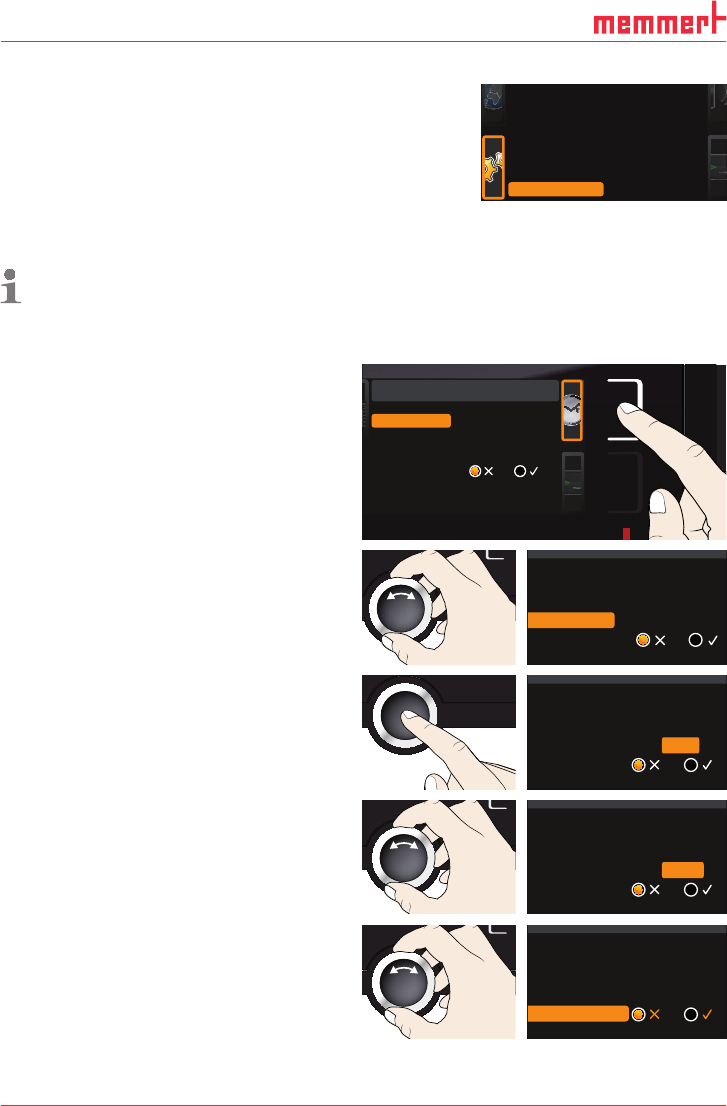

1. Activate the time setting. To do so, press
the activation key on the right side of
the
Time display. The display is enlarged
and the first adjustment option (
Date)
automatically highlighted.
Date and time
Time
Time zone
Daylight savings
12. 05 . 2012
12:00
GMT 01:00
Date
2. Turn the turn control until Time zone is
highlighted.
Time
Daylight savings
12. 05 . 2012
12: 00
GMT 01:00
Date
Time zone
3. Accept the selection by pressing the
confirmation key.
Time
Daylight savings
12. 05 . 2012
12: 00
GMT
Date
Time zone
01:00
4. Set the time zone of the installation site
with the turn control, e.g. 00:00 for Great
Britain, 01:00 for France, Spain or Ger-
many. Accept the selection by pressing
the confirmation key.
Time
Daylight savings
12. 05 . 2012
12: 00
GMT
Date
Time zone
00:00
5. With the turn control, select the Daylight
savings entry
Time
12. 05 . 2012
12: 00
GMT 00:00
Date
Time zone
Daylight savings
Balance
Remote Control Off
Gateway 192.168.5 .1
+30 %
2/2
