Advance d High Speed Flex i ble Mounter 4-6 4.2. Flying V is ion 4.2.1. Fl ying IO Board 4.2.1.1 . Require d too ls  T W r en ch (othe r tools supplied ) or He x W r ench  Spanne r 4.2.1.2 . Fl ying IO Board replacem e…

Head

4-5

 Head Z/R Offset

 Fid Camera Offset

 Pitch Home Offset

 Head Offset

 LSO Head COR to RefFid

 Variable Pitch Offset

Advanced High Speed Flexible Mounter

4-6

4.2. Flying Vision

4.2.1. Flying IO Board

4.2.1.1. Required tools

 T Wrench (other tools supplied) or Hex Wrench

 Spanner

4.2.1.2. Flying IO Board replacement procedure

1. Manipulate the teaching box to move the head module to the front.

2. Close the PC as usual and turn off the main switch at the front of the machine.

3. Remove the connectors connected to the head module.

Flying IO Board

Connector

Head

4-7

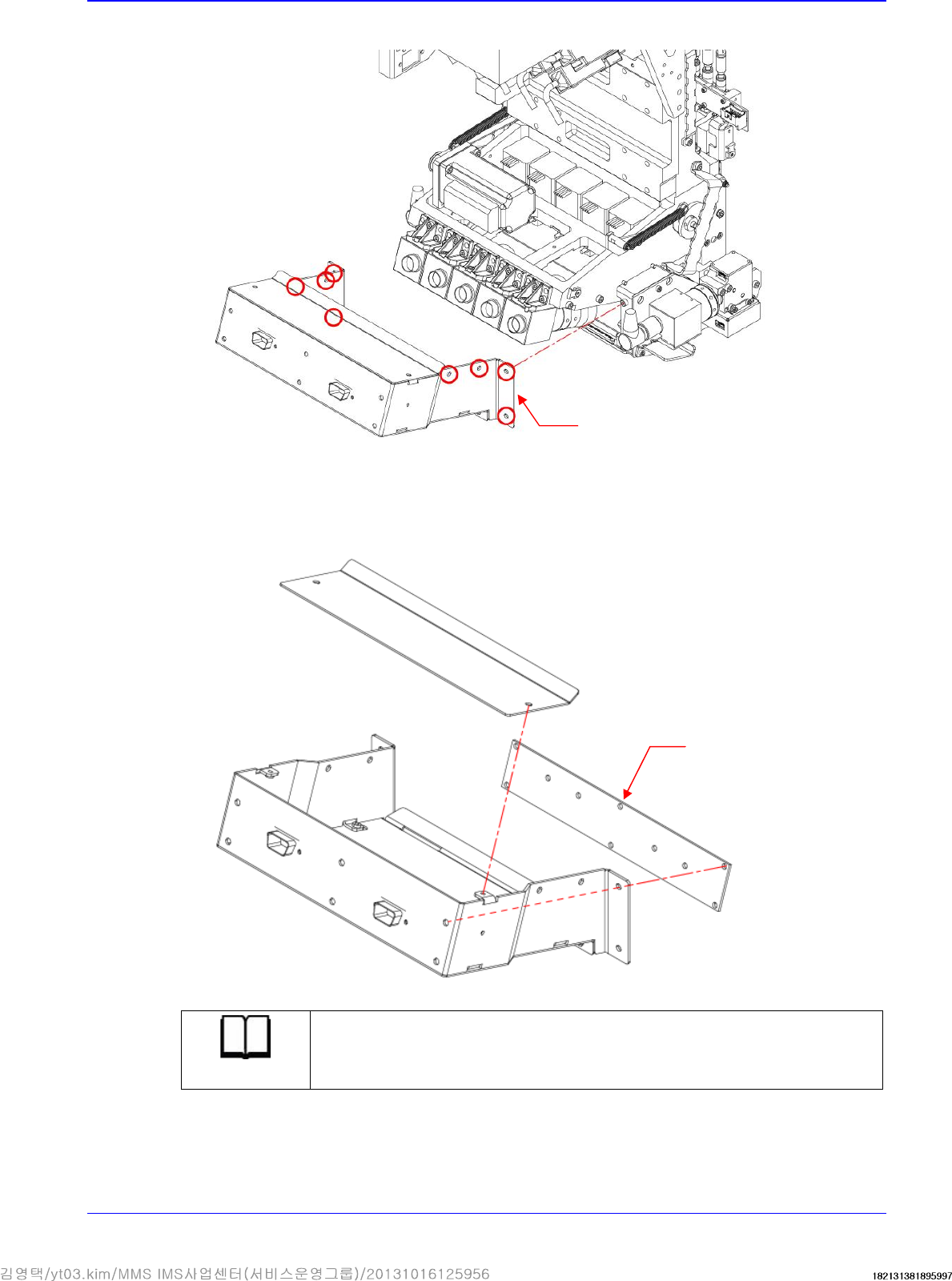

4. Unscrew the fixing bolts securing the Camera Cover using a hex wrench and remove it.

5. Remove the cable connected to board.

6. Remove the board.

7. Replace the board with a new one.

Reference

The part number of the new Flying IO board is AM06-000358A

8. Assemble the board in the reverse order of disassembling.

Camera Cover

Flying IO Board
