4.1.3. Head Module Assembling Procedure

1. Assemble the head module in the reverse order of disassembling. However, assemble it paying

attention to the following.

2. Once the assembling is completed, turn on the main switch on the front of the machine and

boot the PC.

3. It is necessary to perform calibration of the following.

 Axis Home Calibration

 Fiducial Camera Calibration

 Gantry Common XY

 Gantry Mapping

Head IF Board

Motor IF Board

Head

4-5

 Head Z/R Offset

 Fid Camera Offset

 Pitch Home Offset

 Head Offset

 LSO Head COR to RefFid

 Variable Pitch Offset

Advanced High Speed Flexible Mounter

4-6

4.2. Flying Vision

4.2.1. Flying IO Board

4.2.1.1. Required tools

 T Wrench (other tools supplied) or Hex Wrench

 Spanner

4.2.1.2. Flying IO Board replacement procedure

1. Manipulate the teaching box to move the head module to the front.

2. Close the PC as usual and turn off the main switch at the front of the machine.

3. Remove the connectors connected to the head module.

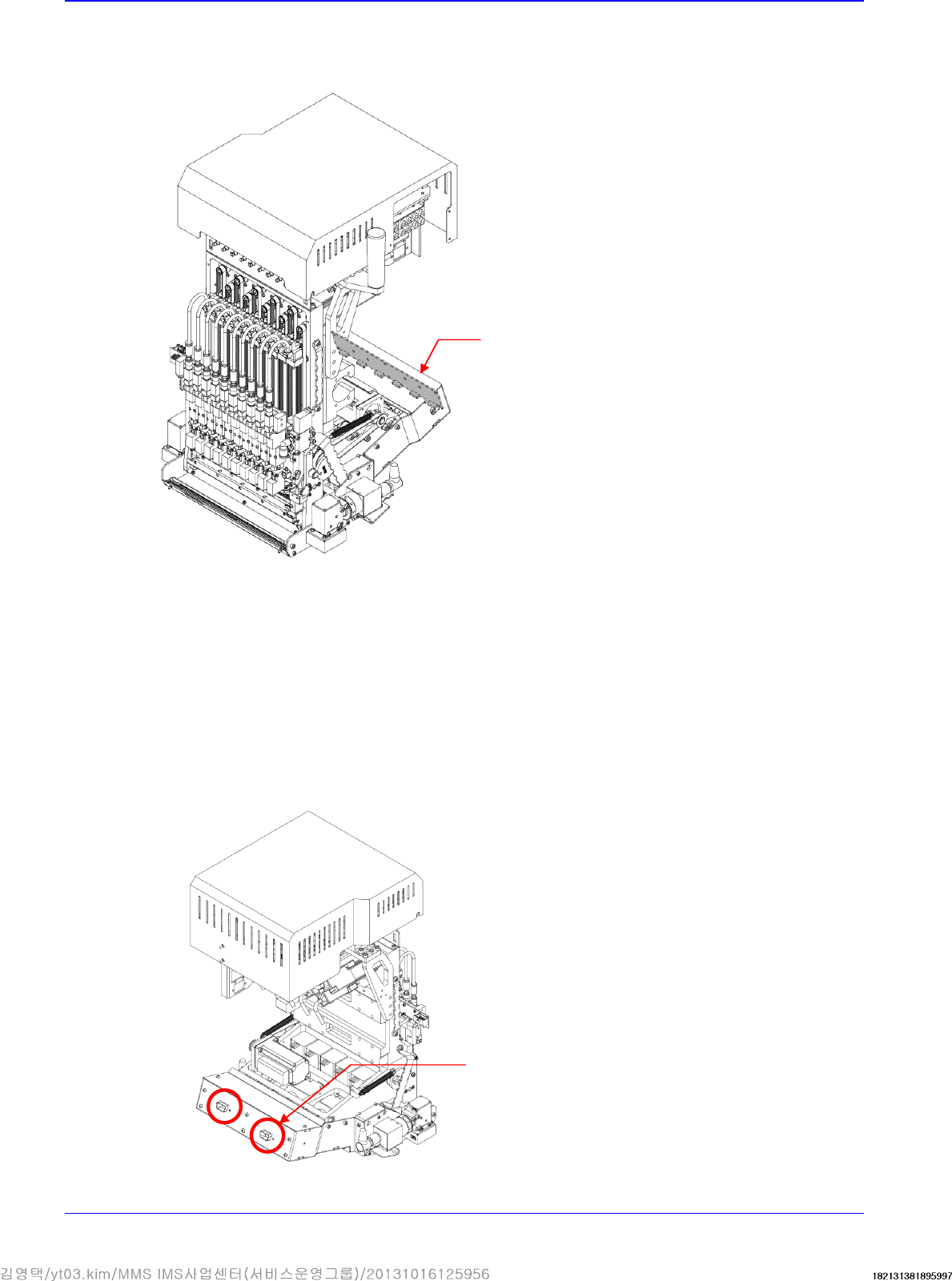

Flying IO Board

Connector
