Advanced High Speed Flexible Mounter

4-8

4.2.2. Flying Camera

4.2.2.1. Required tools

 T Wrench (other tools supplied) or Hex Wrench

 Spanner

4.2.2.2. Flying camera replacement procedure

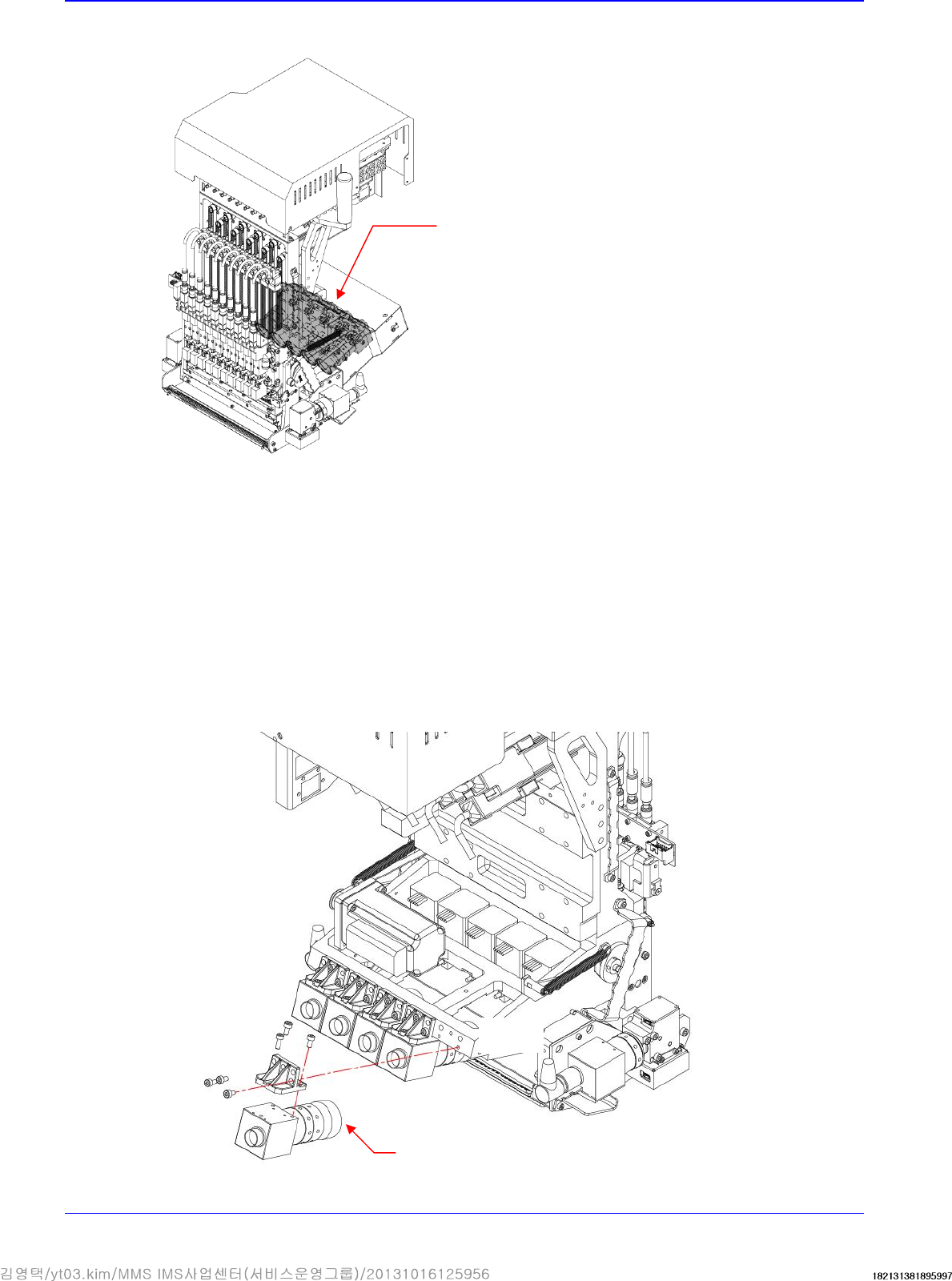

1. Remove the camera cover referring to the flying IO board removal procedure.

2. Remove the connectors connected to the flying IO board.

3. Remove the connectors connected to camera.

4. Unscrew the fixing bolts securing the Camera using a hex wrench and remove it.

Camera

Flying Camera

Head

4-9

5. Replace the camera with a new one.

Reference

The part number of the new camera is J91851018A

6. Assemble the camera in the reverse order of disassembling.

7. Turn on the main switch on the front side of the machine and boot the PC.

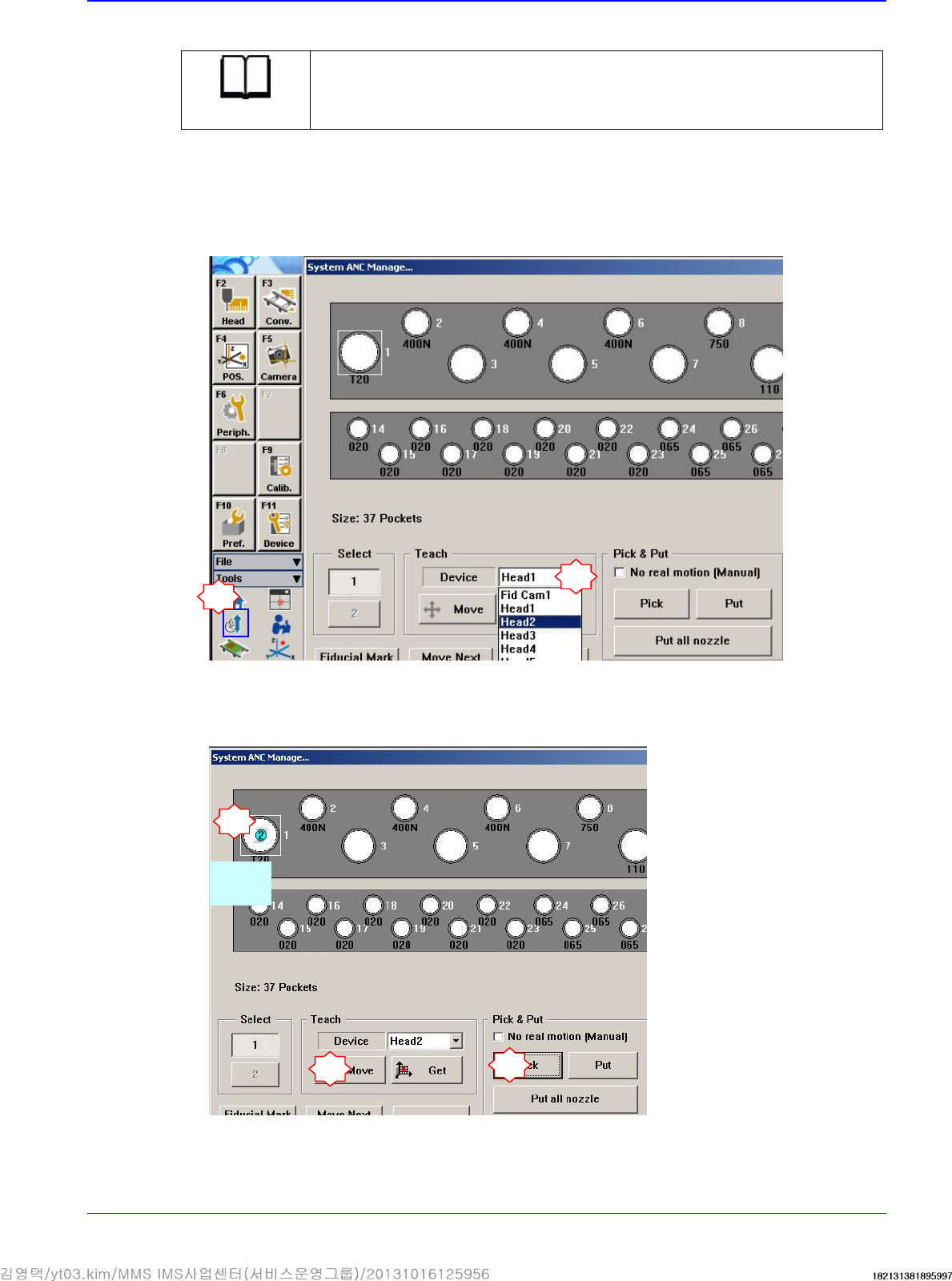

8. Insert the calibration tool (CNT20) in the nozzle-hoder of the head corresponding to the

replaced camera.

Select the head corresponding to the replaced camera

Select

CNT20

Advanced High Speed Flexible Mounter

4-10

9. Perform the following procedure to move the calibration tool to the ‘part-alignment height’.

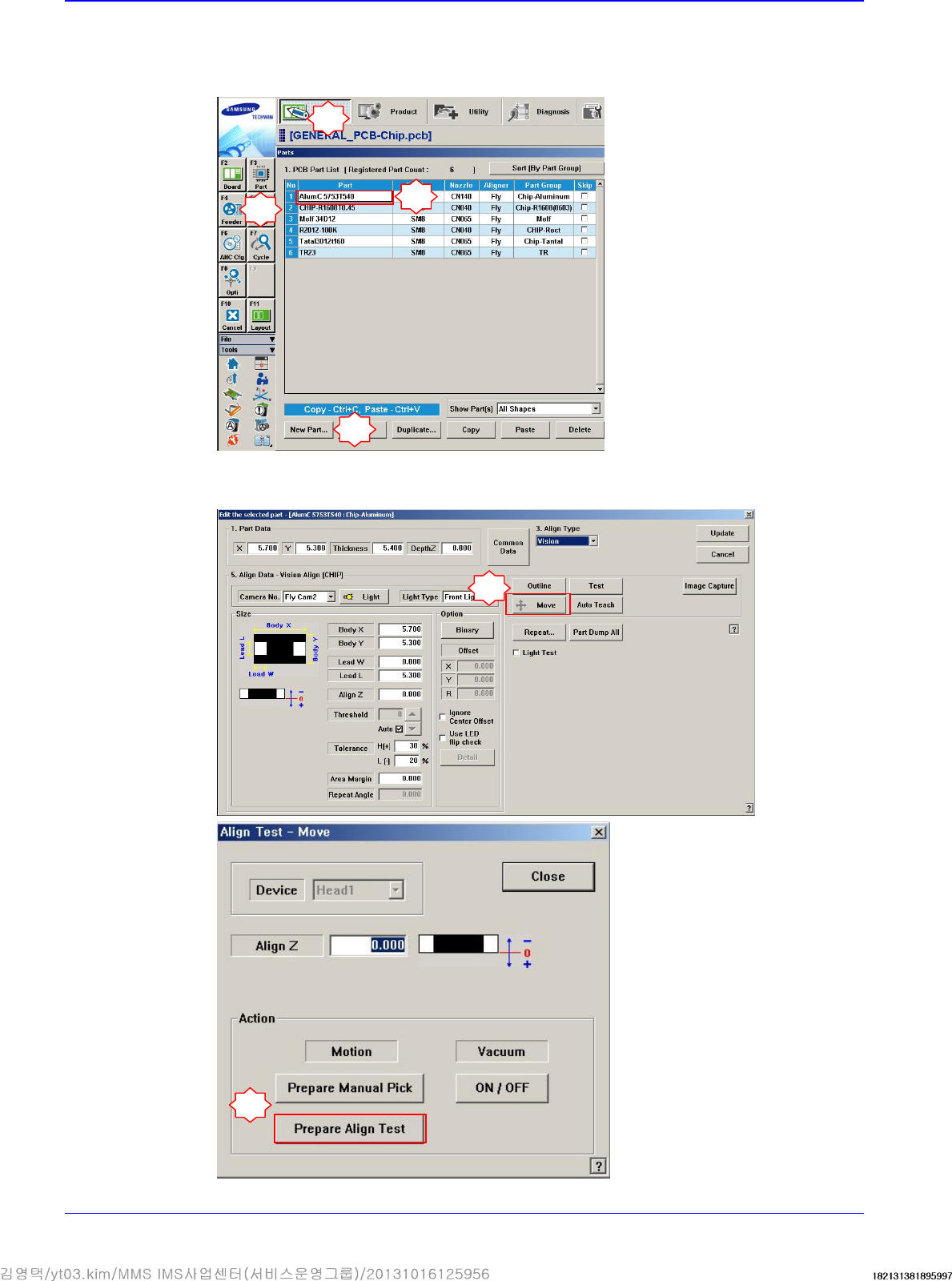

 Select a part in the ‘Part’ dialog box and click the <Edit> button. Execute the ‘Part Editor’

dialog box.

 Click the <Move> button and then click the <Prepare Align Test> button.
