Advanced High Speed Flexible Mounter

4-22

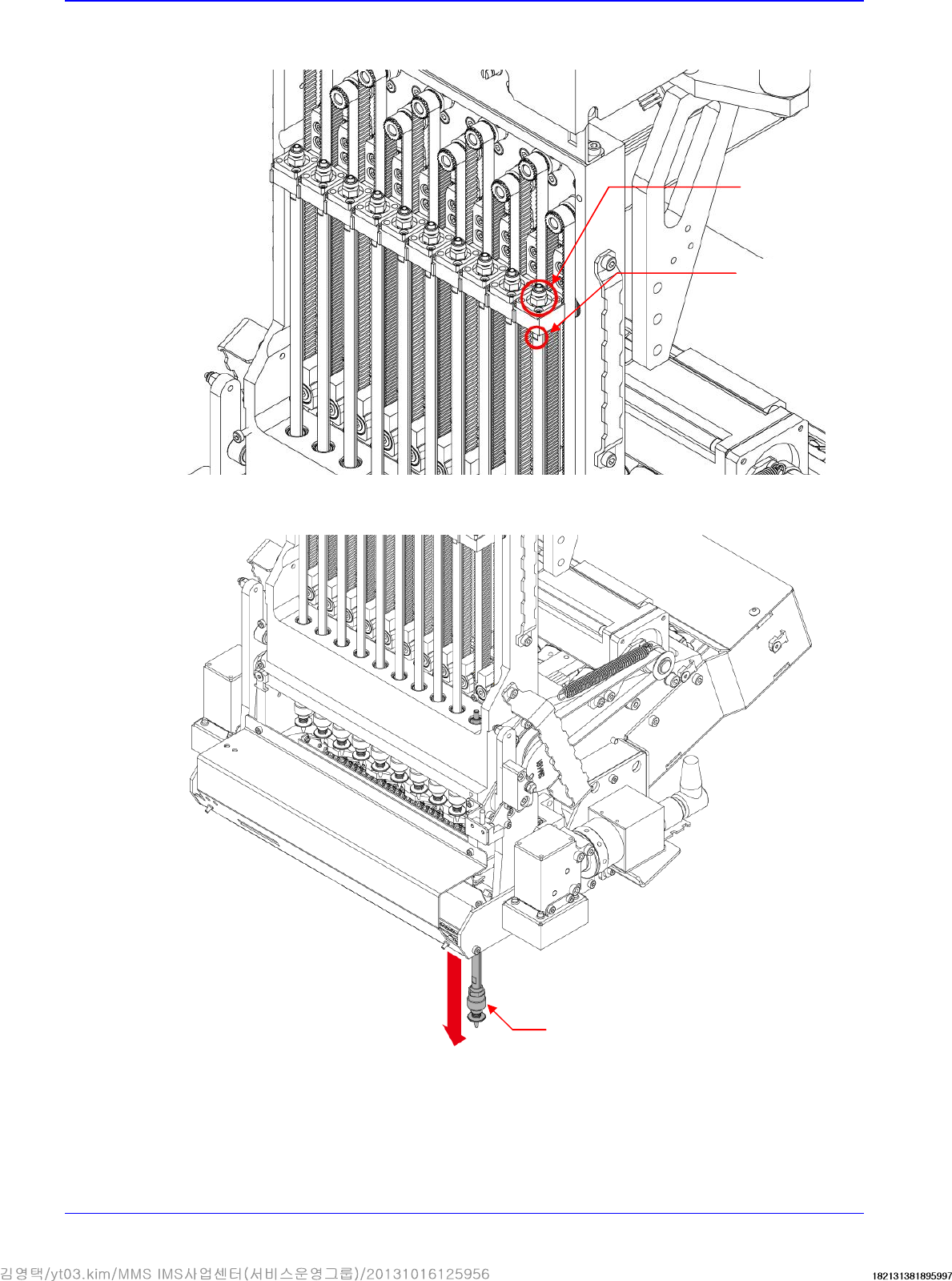

9. Hold and fix the spline at the gear wrench seat using a spanner and remove the lock nut with

another gear wrench.

10. Remove the spline downward.

11. Remove nozzle holder using a spanner.

Lock Nut

Position of

Spanne

Spline

Head

4-23

12. Replace the spline with a new one.

Reference

The part number of the new spline is MC13-000124.

13. Assemble the spline in the reverse order of disassembling.

14. It is necessary to perform calibration of the following.

 Z Offset

 Nozzle Check

 R Offset

 Head Offset

 Fly Caemera Scale

 Fly Caemera Scale Offset

Advanced High Speed Flexible Mounter

4-24

4.4. Spindle Housing

4.4.1. Required tools

 T Wrench (other tools supplied) or Hex Wrench

 Spanner

 Tool or jig for concentricity measurement

4.4.2. Spindle Housing replacement procedure

1. Remove the ball spline referring to the ball spline removal procedure.

2. Remove the flying vision referring to the flying vision removal procedure.

3. Unscrew the fixing bolts securing the Pulley Clamp using a hex wrench and remove it.

Spindle Housing
