Advanced High Speed Flexible Mounter
4-16
5. Unscrew the fixing bolts securing the board using a hex wrench and remove it.
6. Replace the board with a new one.
Reference
The part number of the new board A is AM03-005090A.
The part number of the new board B is AM03-005089A.
7. Assemble the board in the reverse order of disassembling.
8. Perform light mapping.
4.2.4.3. Outer B Board replacement procedure
1. Manipulate the teaching box to move the head module to the front.
2. Close the PC as usual and turn off the main switch at the front of the machine.
3. Remove the cable connected to board.

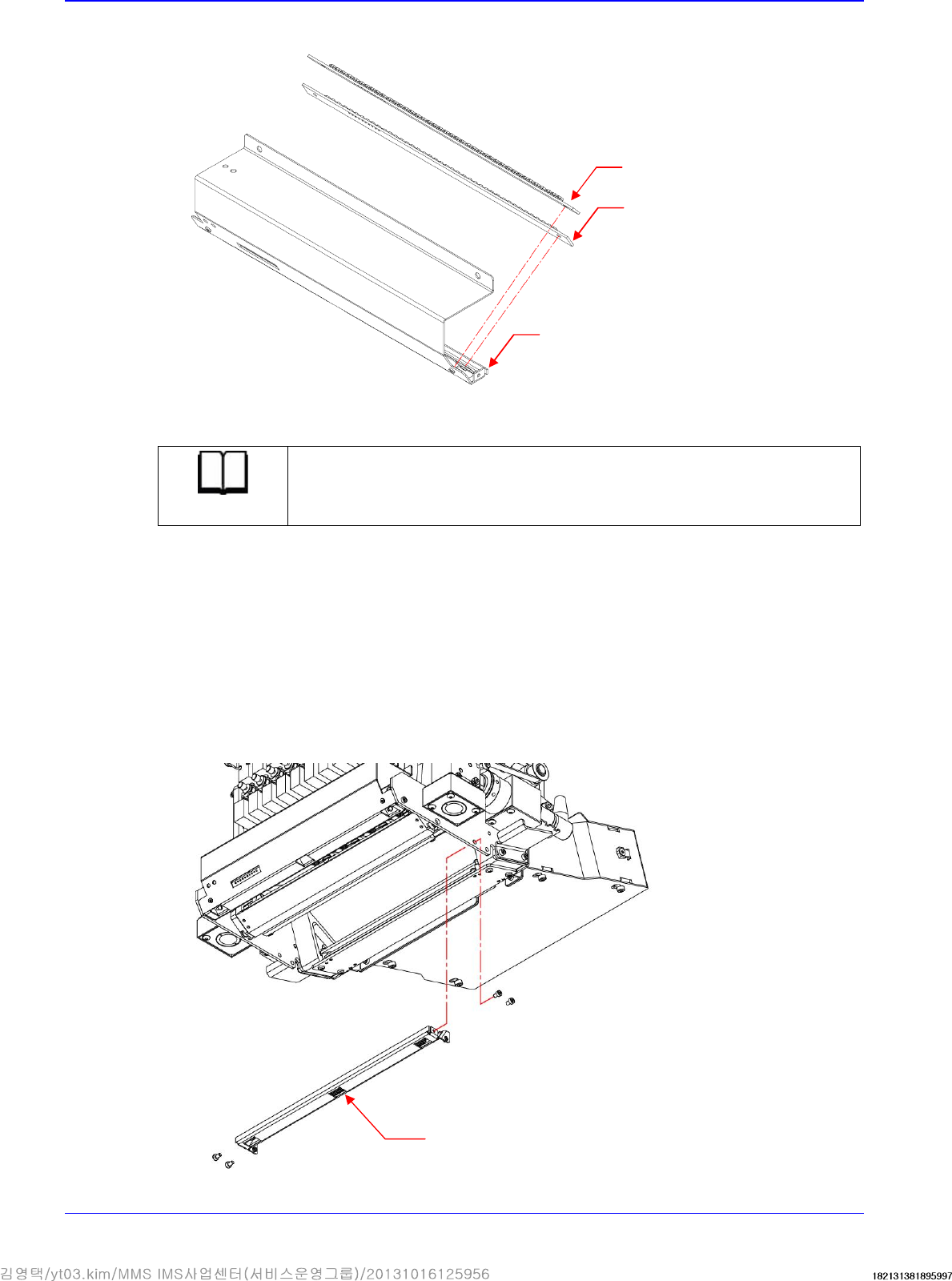

4. Unscrew the fixing bolts securing the Outer Bracket using a hex wrench and remove it.
Board A
Board B
Outer Bracket
Outer Bracket
Head
4-17
5. Unscrew the fixing bolts securing the board using a hex wrench and remove it.
6. Replace the board with a new one.
Reference
The part number of the new board A is AM03-005095A.
The part number of the new board B is AM03-005097A.
7. Assemble the board in the reverse order of disassembling.
8. Perform light mapping.
4.2.4.4. Coaxial PCB replacement procedure
1. Manipulate the teaching box to move the head module to the front.
2. Close the PC as usual and turn off the main switch at the front of the machine.
3. Remove the cable connected to board.

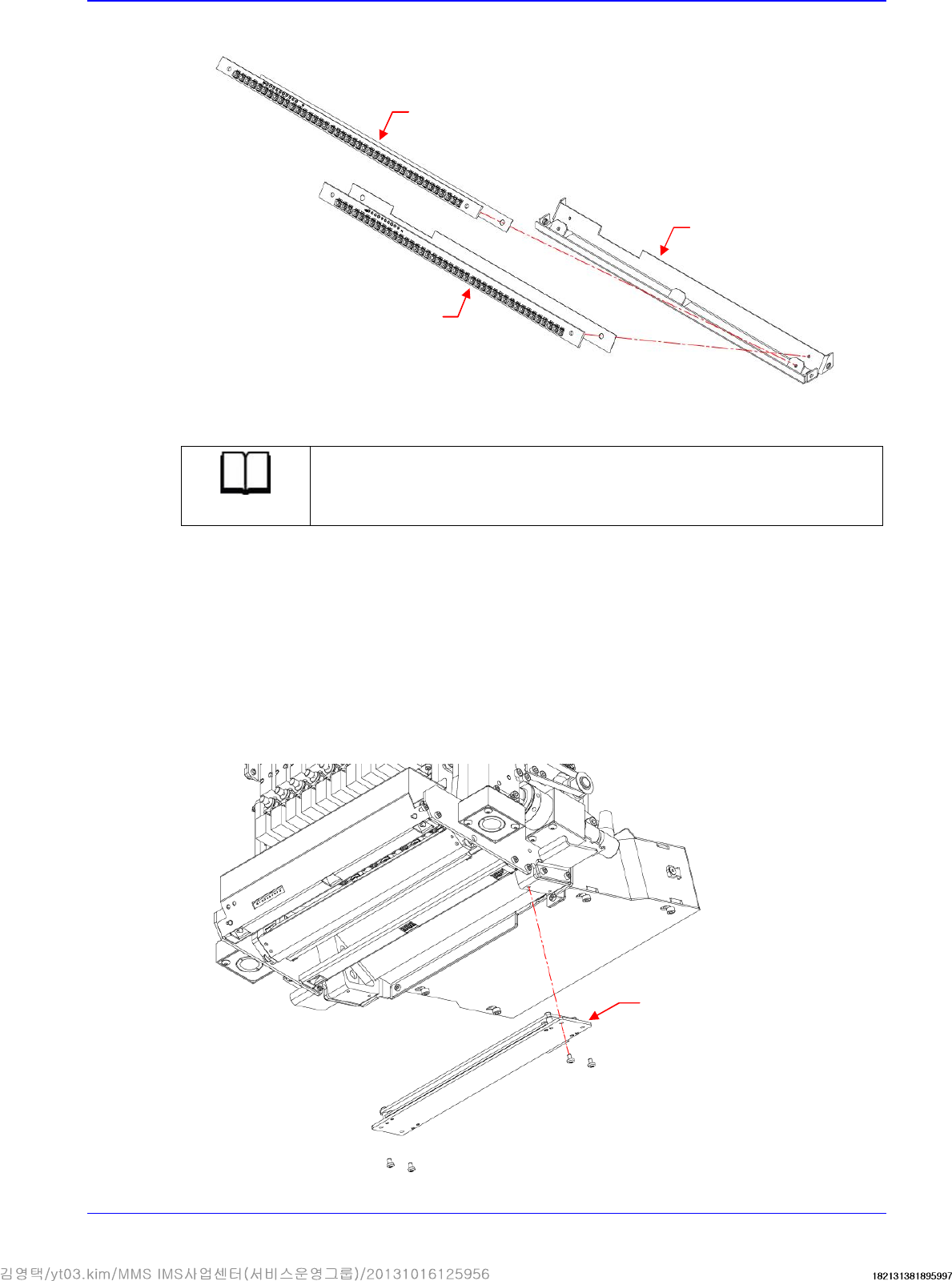

4. Unscrew the fixing bolts securing the Coaxial Ass'y using a hex wrench and remove it.
Outer A
Outer B
Bracket
Coaxial Assy
Advanced High Speed Flexible Mounter
4-18
5. Unscrew the fixing bolts securing the board using a hex wrench and remove it.
6. Replace the board with a new one.
Reference
The part number of the new board A is AM03-005100A.
7. Assemble the board in the reverse order of disassembling.
8. Perform light mapping.
4.2.4.5. Side Illumination replacement procedure
1. Remove the mirror ass'y referring to the mirror removal procedure.
2. Remove the cable connected to board.
3. Unscrew the fixing bolts securing the Side Mirror using a hex wrench and remove it.
Diffuseer
Coaxial PCB
Plate
Insulation
