Chapter 4. Head

4.1. Head Module

4.1.1. Required Tools

 T Wrench or Hex Wrench

4.1.2. Head Module Removal Procedure

1. Manipulate the teaching box to move the head module to the front.

2. Close the PC as usual and turn off the main switch at the front of the machine.

3. Cut off the main pneumatic air supply.

4. Remove the pneumatic tube connected to the head module.

5. Remove the connectors connected to the head module.

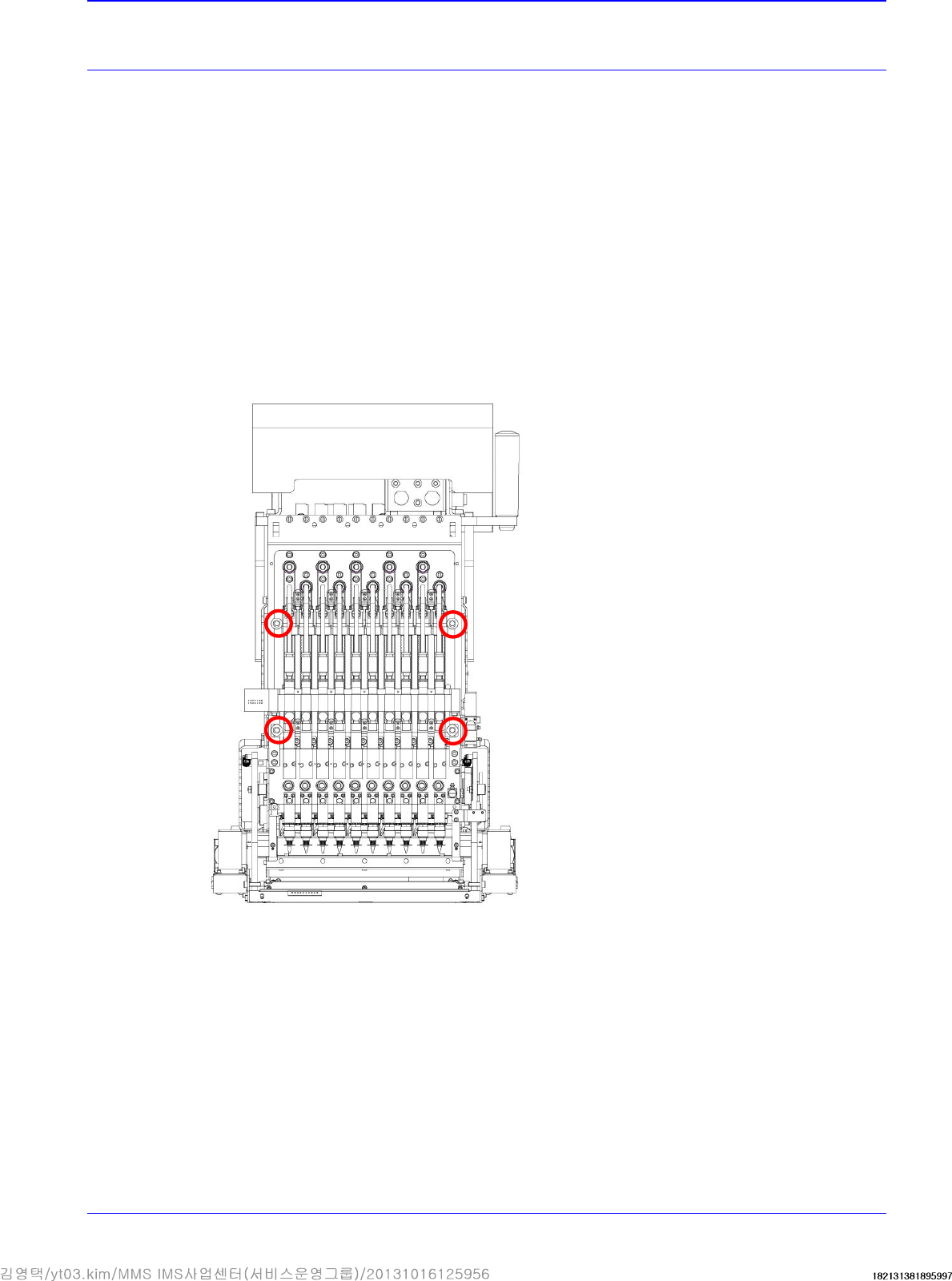

6. Unscrew the fixing bolts as shown in the following figure using a hex wrench.

Advanced High Speed Flexible Mounter

4-4

4.1.3. Head Module Assembling Procedure

1. Assemble the head module in the reverse order of disassembling. However, assemble it paying

attention to the following.

2. Once the assembling is completed, turn on the main switch on the front of the machine and

boot the PC.

3. It is necessary to perform calibration of the following.

 Axis Home Calibration

 Fiducial Camera Calibration

 Gantry Common XY

 Gantry Mapping

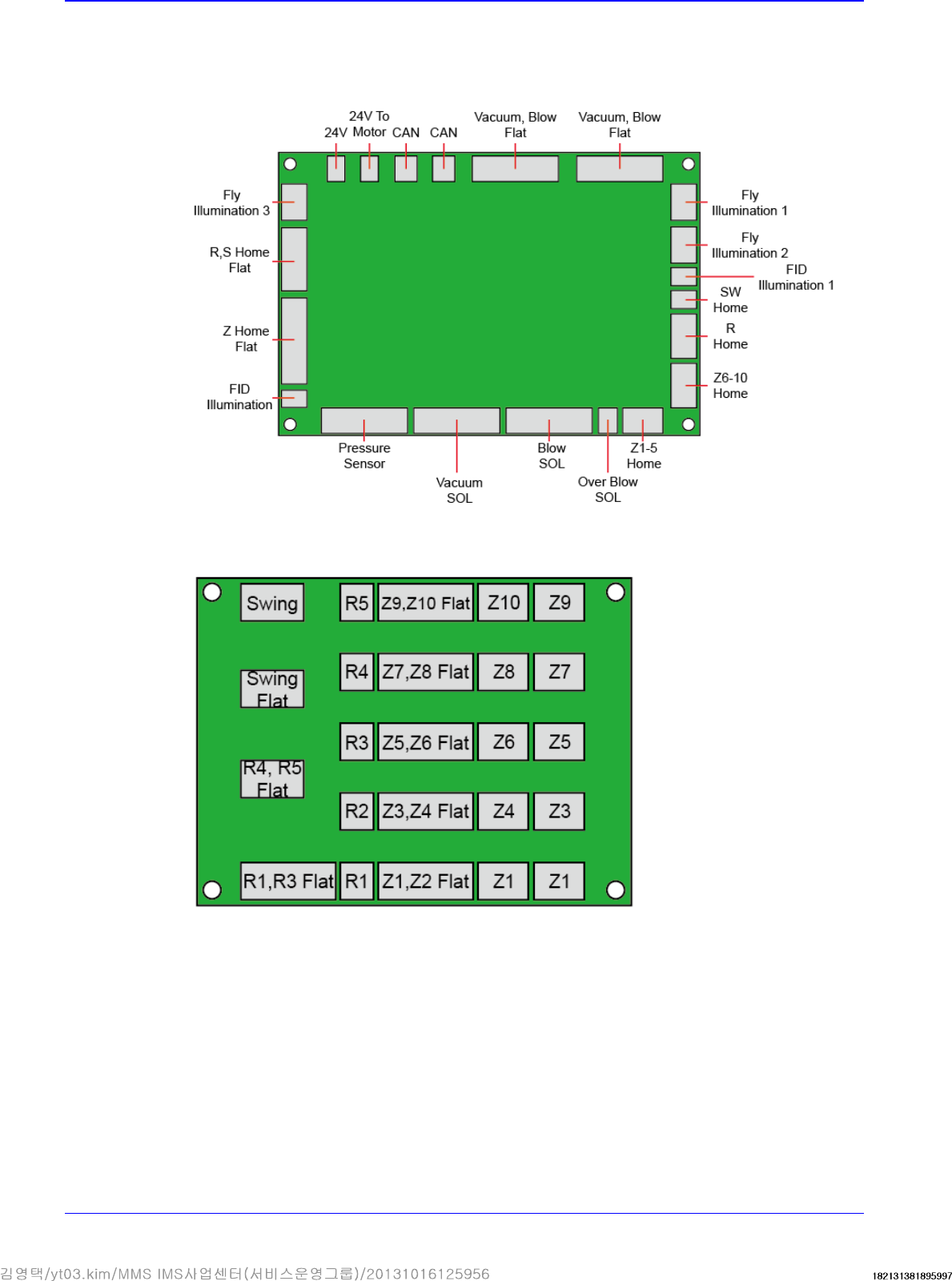

Head IF Board

Motor IF Board

Head

4-5

 Head Z/R Offset

 Fid Camera Offset

 Pitch Home Offset

 Head Offset

 LSO Head COR to RefFid

 Variable Pitch Offset
