Advanced High Speed Flexible Mounter

4-24

4.4. Spindle Housing

4.4.1. Required tools

 T Wrench (other tools supplied) or Hex Wrench

 Spanner

 Tool or jig for concentricity measurement

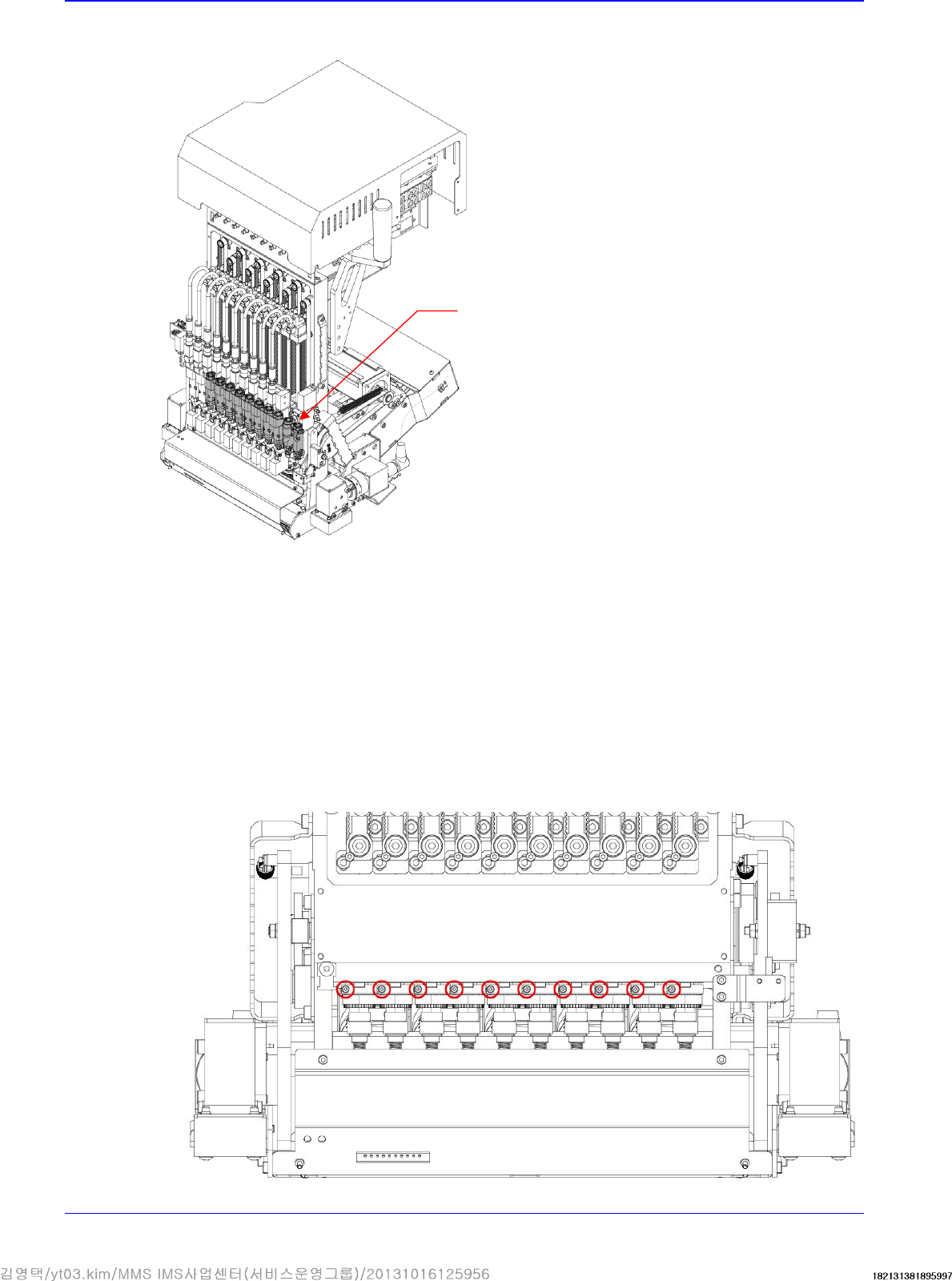

4.4.2. Spindle Housing replacement procedure

1. Remove the ball spline referring to the ball spline removal procedure.

2. Remove the flying vision referring to the flying vision removal procedure.

3. Unscrew the fixing bolts securing the Pulley Clamp using a hex wrench and remove it.

Spindle Housing

Head

4-25

4. Remove the belt connected to the pulley.

5. Remove the Housing Ass'y.

6. Replace the housing with a new one.

Reference

The part number of the new housing is ??????????.

7. Assemble the housing in the reverse order of disassembling.

Clamp

Pulley

Belt

Bearing

Spindle housing cap

Spindle housing

Spline Nut

Bearing

Ball Spline Bush

Plate

Advanced High Speed Flexible Mounter

4-26

4.5. Fiducial Camera

4.5.1. Required tools

 T Wrench (other tools supplied) or Hex Wrench

4.5.2. Fiducial replacement procedure

1. Remove the ball spline referring to the ball spline removal procedure.

2. Close the PC as usual and turn off the main switch at the front of the machine.

3. Remove the connectors connected to the camera.

Fiducial Camera

Connector
