Head
4-25

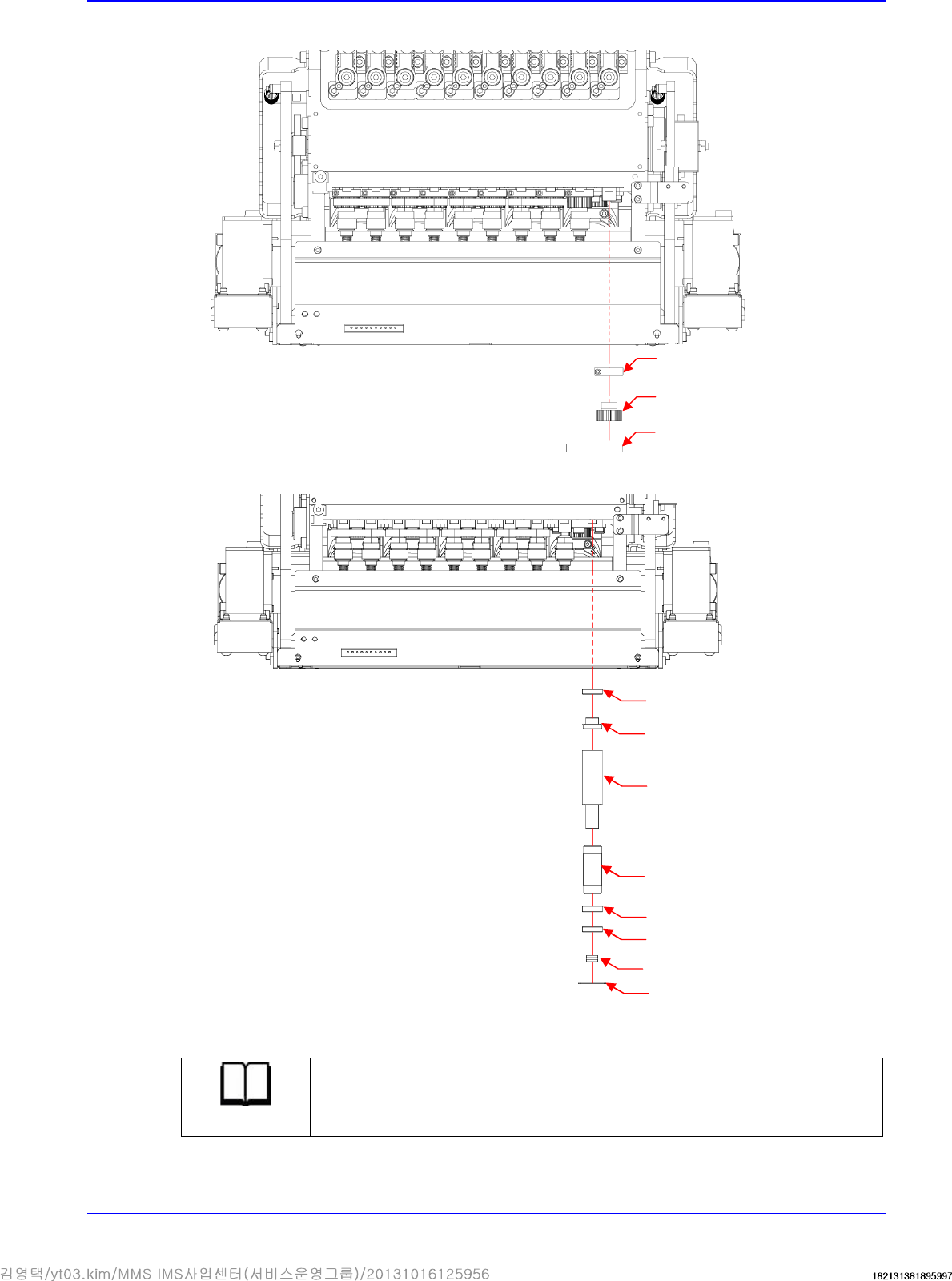

4. Remove the belt connected to the pulley.
5. Remove the Housing Ass'y.
6. Replace the housing with a new one.
Reference
The part number of the new housing is ??????????.
7. Assemble the housing in the reverse order of disassembling.
Clamp
Pulley
Belt
Bearing
Spindle housing cap
Spindle housing
Spline Nut
Bearing
Bearing
Ball Spline Bush
Plate
Advanced High Speed Flexible Mounter
4-26

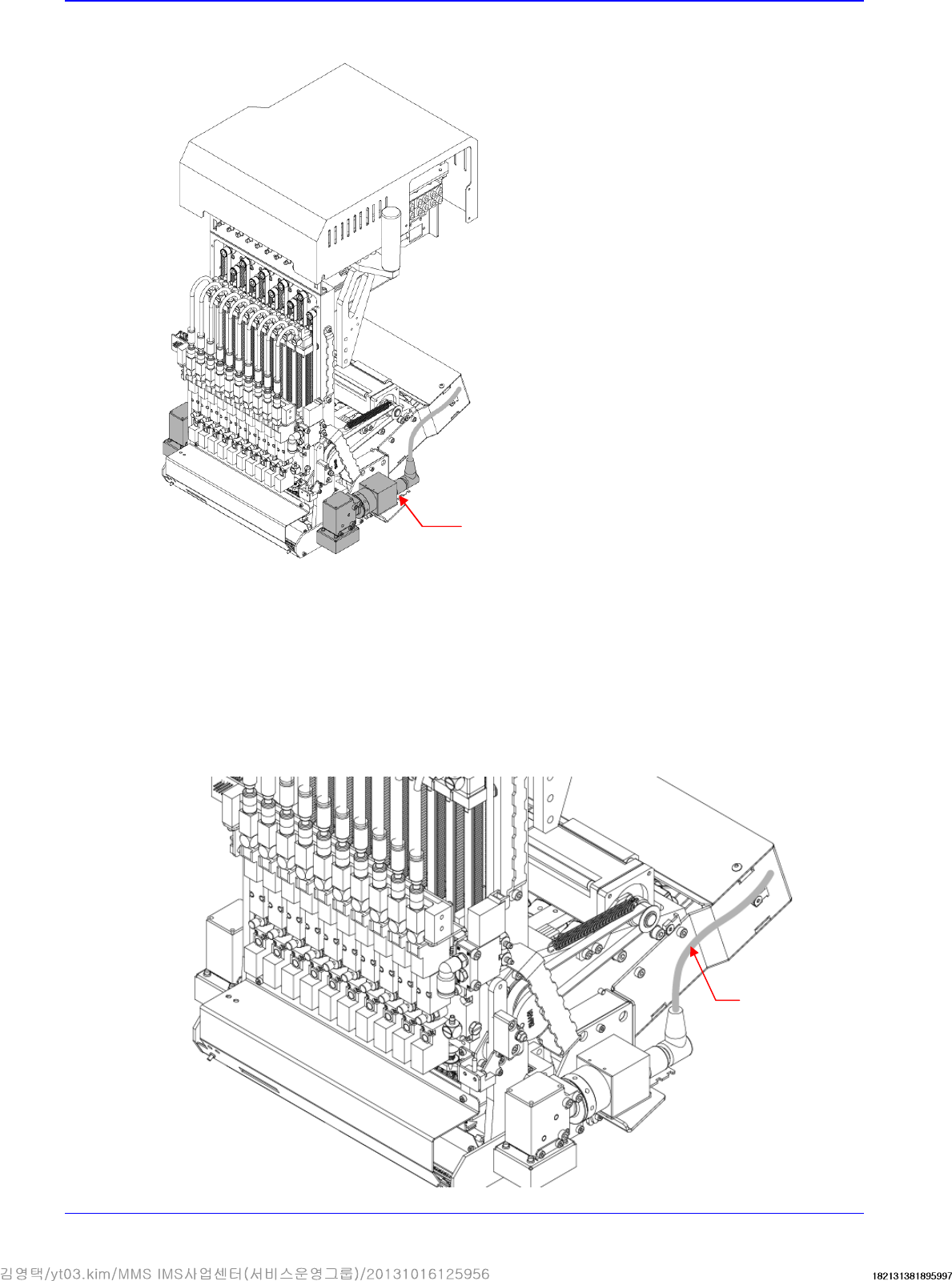

4.5. Fiducial Camera
4.5.1. Required tools
T Wrench (other tools supplied) or Hex Wrench
4.5.2. Fiducial replacement procedure
1. Remove the ball spline referring to the ball spline removal procedure.
2. Close the PC as usual and turn off the main switch at the front of the machine.
3. Remove the connectors connected to the camera.
Fiducial Camera
Connector
Head
4-27
4. Unscrew the fixing bolts securing the fiducial camera nut using a hex wrench and remove it.
5. Replace the fiducial camera with a new one.
Reference
The part number of the new fiducial camera is J91851019A
6. Assemble the camera in the reverse order of disassembling.
7. Setting camera.
No.
Switch Name Factory-setting STW-setting
1
Shutter
speed/Mode
Switch 1: Shutter speed
* Note 1)
OFF ON
Switch 2: Shutter speed OFF OFF
Switch 3: Shutter speed OFF OFF
Switch 4: FRAME/FIELD
OFF ON
Switch 5-7: Normal/Long
Time/Trigger(Non-Reset, Reset)
OFF
OFF
Switch 8: Double Speed
OFF
OFF
Camera setting swicth
Camera setting swicth
Cable connector
Fiducial Camera
