Advanced High Speed Flexible Mounter
4-12
11. Adjust the X and Y coordinates using the fixing screws that fix the camera shown in the
following figure. Adjust 3 fixing screws so that the calibration tool center matches with the
cross hair through the ‘SMVision’ window.
12. Perform the calibration of the ‘Fly camera scale calibration’.
Y direction adjustment
X
direction adjustment
Head
4-13
4.2.3. Flying Mirror
4.2.3.1. Required tools
T Wrench (other tools supplied) or Hex Wrench
4.2.3.2. Flying Mirror replacement procedure
1. Manipulate the teaching box to move the head module to the front.
2. Close the PC as usual and turn off the main switch at the front of the machine.
3. Unscrew the fixing bolts securing the Mirror Ass'y using a hex wrench and remove it.

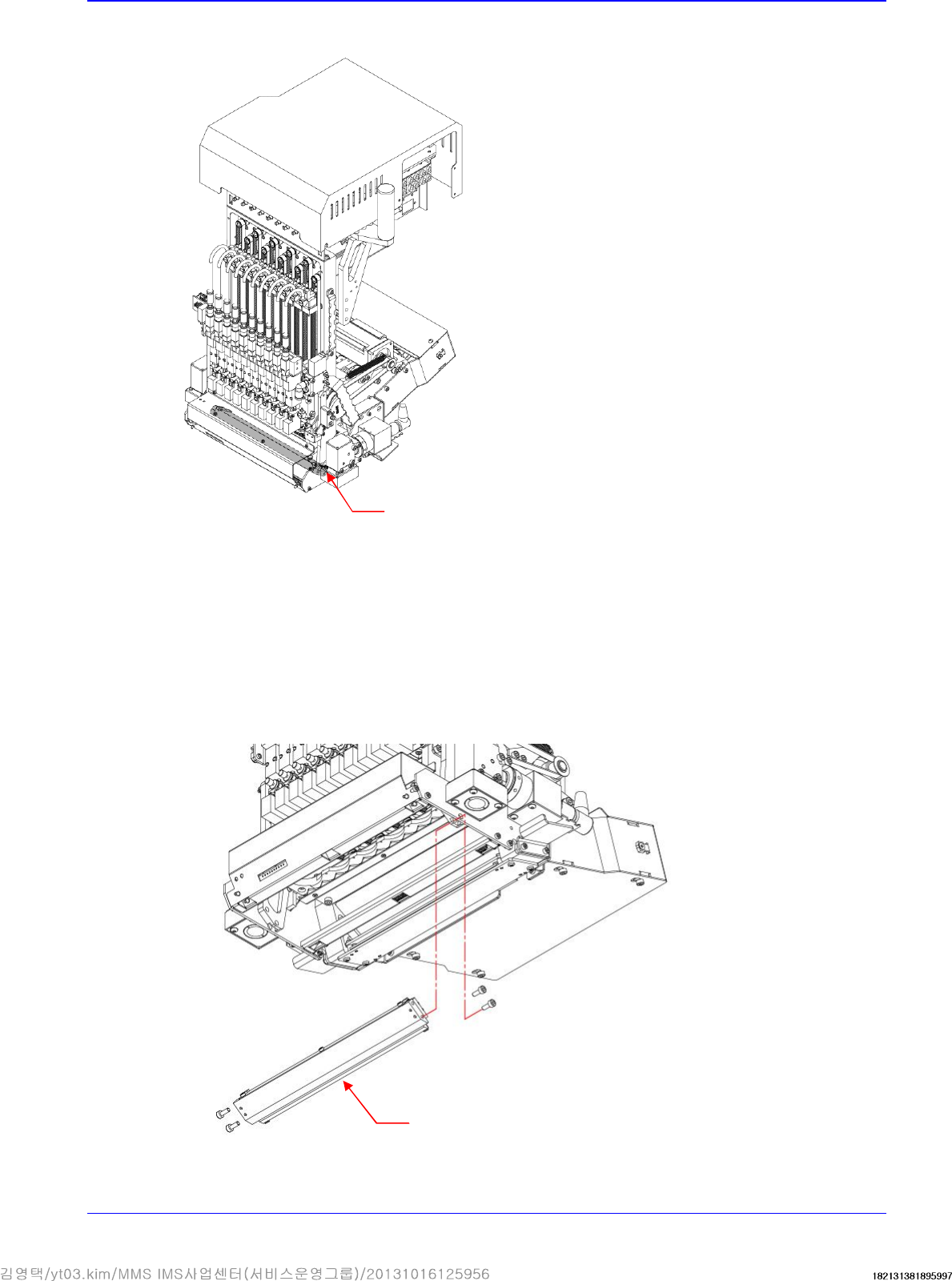

Flying Mirror
Mirror Ass'y
Advanced High Speed Flexible Mounter
4-14
4. Unscrew the fixing bolts securing the Mirror using a hex wrench and remove it.
5. Replace the Mirror with a new one.
Reference
The part number of the new mirror is EP12-000030A
6. Assemble the mirror in the reverse order of disassembling.
7. Perform Fly-Camera Scale Calibration.
Clamp
Mirror
Bracket
Plate
