ACT with SSW 6xx / User Manual 07/2017 Edition
36
4.1.3.1 Creating the Setup – Tray Changer (TC)
The ACT tray may be used, but has to be positioned in line with the waffle-pack tray carrier (WTC,
tray holder).
Some examples can be found in SIPLACE Pro under My tables \ ACT \ TC \.
CAUTION
In order to place the ACT tray mechanically safe, it has to be positioned at the stop on
the side without pockets. It can be fastened with two holding magnets (see the marker in
Figure 4-6).
In SIPLACE Pro under My waffle-pack trays \ ACT \ xxx_L ; xxx_R the tray has to be set-up on the
waffle-pack tray carrier depending on if the tray changer has a left or a right stop.
Overview of tray changers with left and right stops
Tray changer Where is the stop?
WPC4 Left ( ACT \ xxx_L)
WPC4 – SIPLACE D3 Left ( ACT \ xxx_L)
WPC 5 Right ( ACT \ xxx_R)
WPC 6 Right ( ACT \ xxx_R)
MTC2 Left ( ACT \ xxx_L)
Table 4-3: Tray changers with left or right stops
FMT WPC4
Left ( ACT \ xxx_L)
FMT WPC5 + WPC6
Right ( ACT \ xxx_R)
MTC2
Left ( ACT \ xxx_L

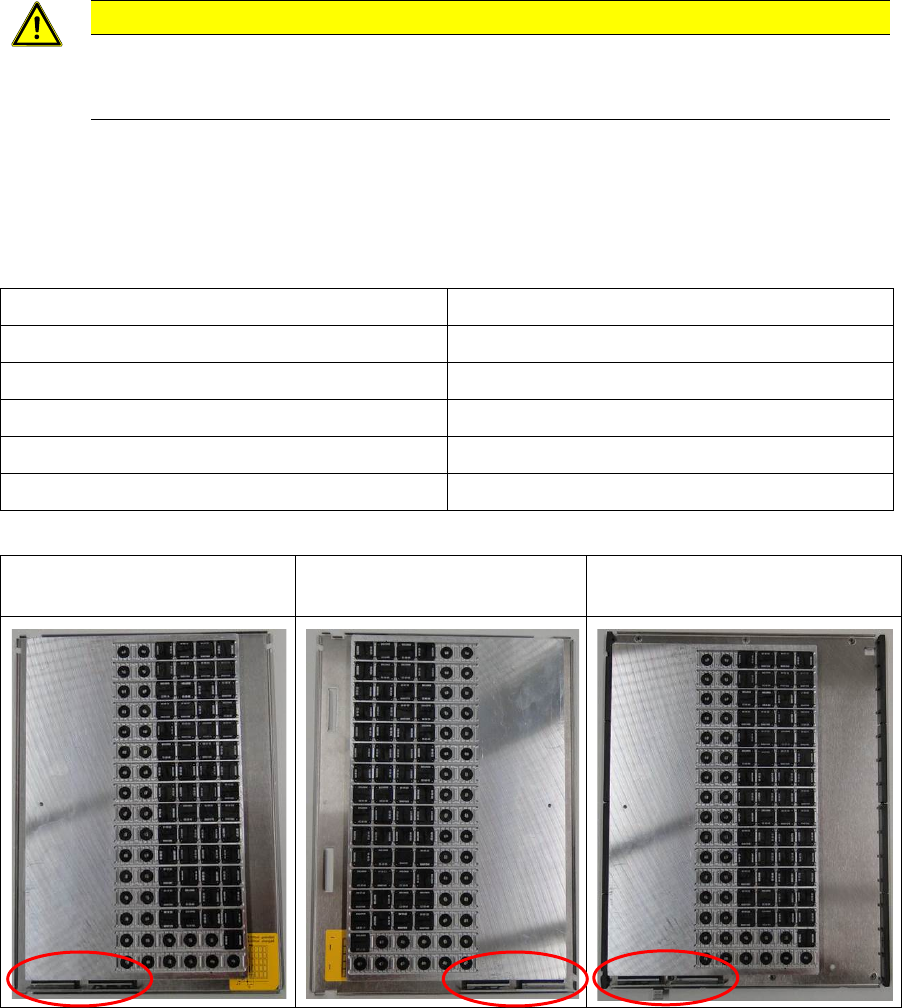

Figure 4-6: ACT tray on waffle-pack tray carrier
ACT with SSW 6xx / User Manual 07/2017 Edition
37
4.1.3.2 Pass-through
If there are multiple machines in the line, the ACT plate has to be transported through single
machines either before or after the machine to be measured.
The Pass-through function can be activated and deactivated in the setup of the respective station.
Figure 4-7: Pass-through function
Figure 4-8: Specification in Line Control GUI with DX4 in Pass-Through mode
ACT with SSW 6xx / User Manual 07/2017 Edition
38
4.2 Measuring with the ACT at the Station
You have already specified the placement and measurement programs at the station as described
in section 4.1.
► Now set up the components on the station.
4.2.1 Setting Up Components on the Component Table
► Open the machine cover.
► Place the manual waffle pack tray carrier or the feeder onto the specified tracks of the relevant
location.
Example of the position of manual waffle pack tray carrier with glass components for a
SIPLACE D3
NOTICE
The waffle pack tray carrier for the S-table needs to be at track 45 (Figure 4-9).
Therefore, the waffle pack tray occupies track 13 to 77 (Figure 4-10).
Figure 4-9: Position (track 45) of waffle pack tray carrier on S-table
