7 AJBES-P

3. Classification of Component Shapes

Component shapes are classified to distinguish each component library data

group.

The BGA/CSP components belong to the "Area Array" group.

BGA : Ball Grid Array

CSP : Chip Scale Package

LGA : Land Grid Array

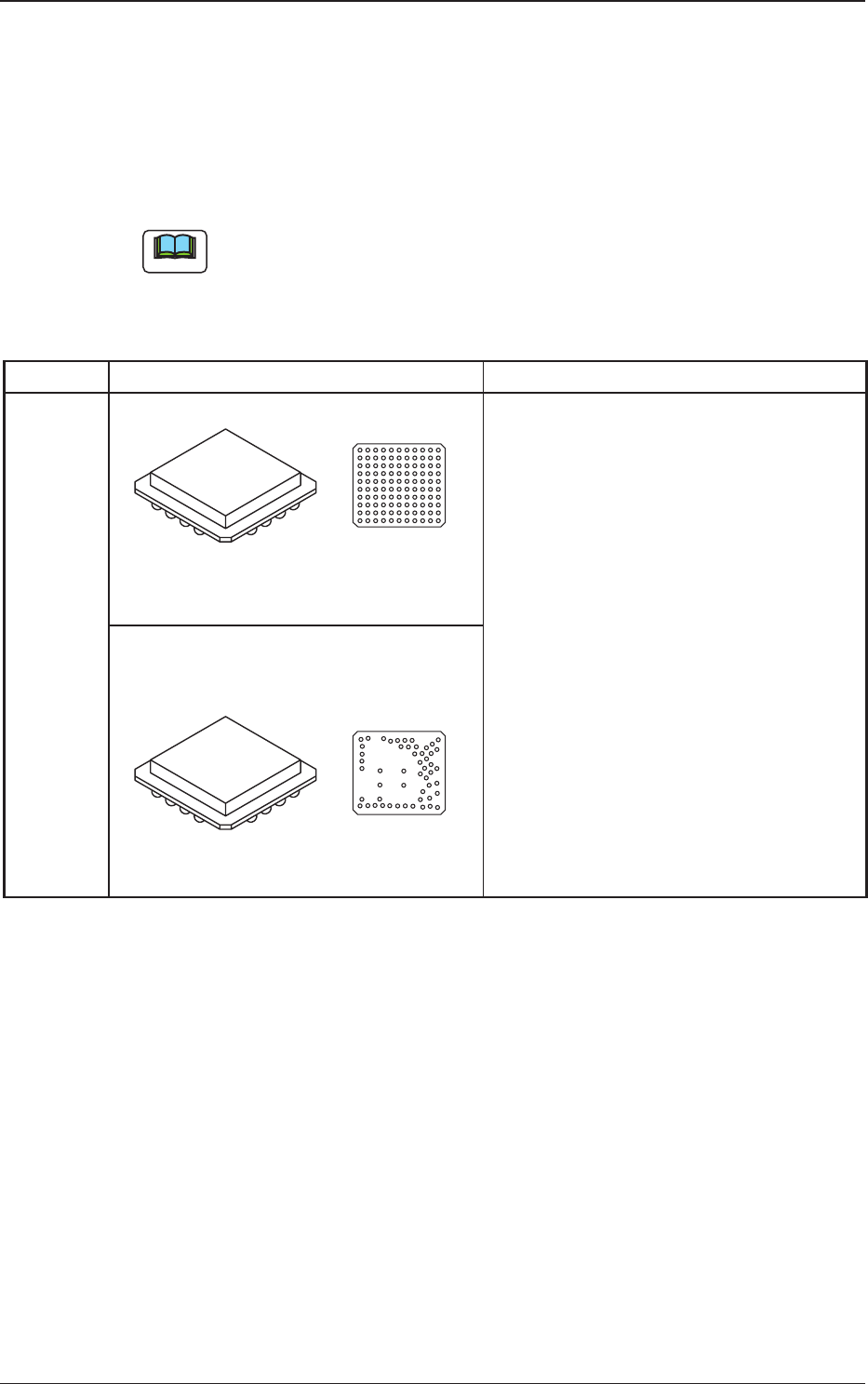

Table 2

Component Shape Applicable Components for Reference

BGA/CSP • Grid Array Components

BGA, CSP, LGA, and other similar-

shaped components

Complex (Components with Electrodes

Arranged in Unequal (Random) Pitches)

3. Classification of Component Shapes

0606-002

Note

Front Side Rear Side

Fig. 3

Front Side Rear Side

Fig. 3-1

8 AJBES-P

4. Component Library Data

4.1 List of Data

4.1.1 List of Common Component Data

The common component data applies to all leadless, leaded, area array, and

other components and is classified into four lists.

A01 List of Identification Data

A02 List of Control Data

A03 List of Carrier Data

A04 List of Placeable Data

Fig. 4

A01 List of Identification Data

Table 3

No. Data Name Ref. No.

1 Component ID A01_01

2 Comment A01_02

3 Component Shape A01_03

4 Component Type A01_04

Refer to "Component Library for GXH Series" in the instruction manual

for details.

List of Common

Component Data

4. Component Library Data

Reference

0606-002

• Leadless Components

"Cylindrical, Square,

Deform"

• Leaded Components

"ICs, Connectors, and

Other Leaded

Components"

• Area Array Components

"BGA/CSP"

• Others

"Special"
