31 AJBES-P (6) Missing Elctd Set Select one of the following options to determine how symmetrically the electrodes are missing. No Missing Cmpnt Normal V ertical Symmetry Bilateral Symmetry Radial Symmetry The selection …
30 AJBES-P

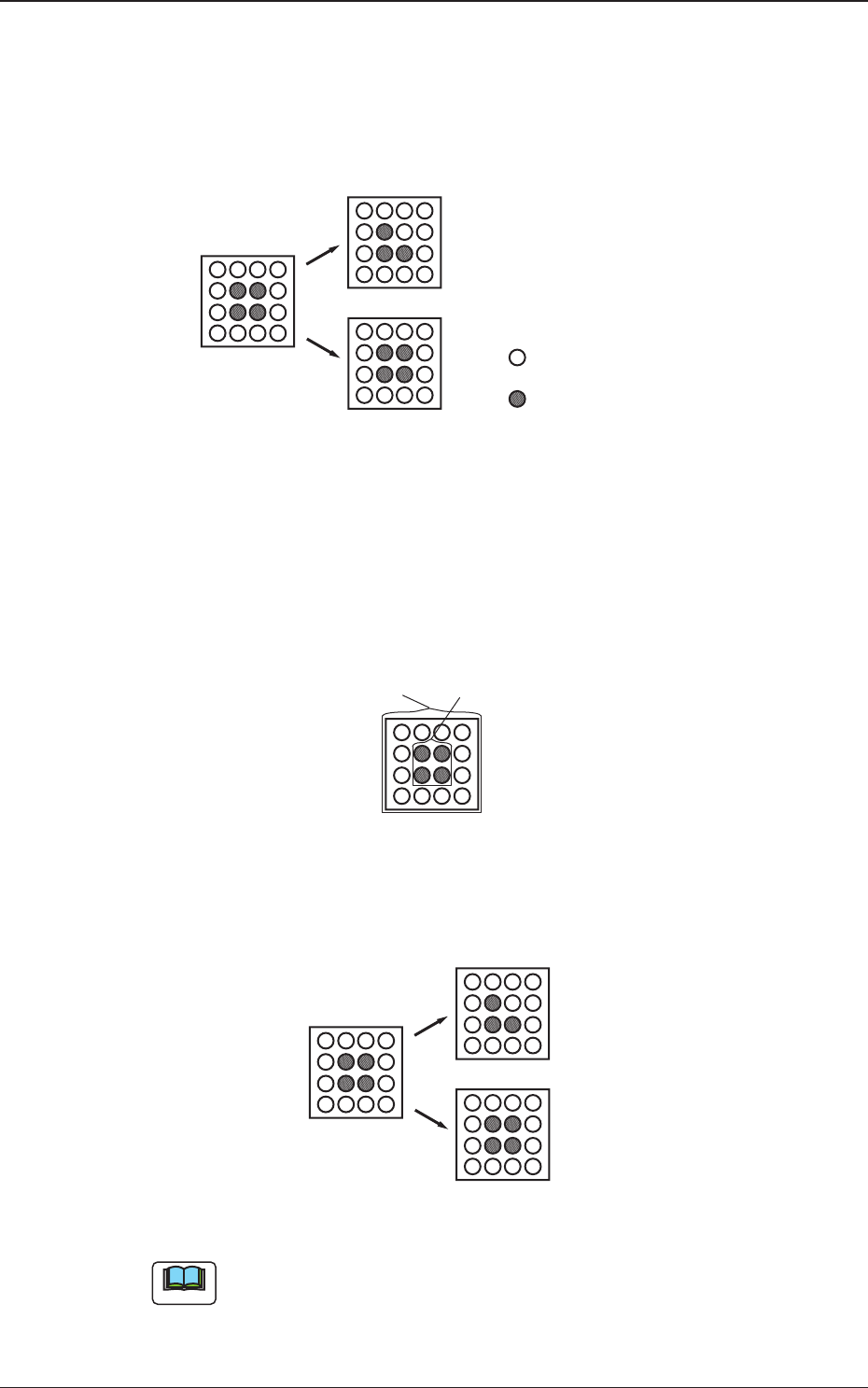

Example: Confirmation of Missing Electrodes
"Normal" in "Insp Condtn" Text Box
In this case, even when there are electrodes in the wrong spots as
shown below, the condition is regarded as normal.
Fig. 15
"Check of No Lead" in "Insp Condtn" Text Box
In this case, follow the procedure below to make it possible to detect
that there are some electrodes in the wrong spots.
1. Divide the block into two areas (Blocks 1 and 2).
Fig. 16
2. By specifying "Check of No Lead" for Block 2, it can be detected if
there are some electrodes in the wrong spots or not.
Fig. 17
"Normal" and "Check of No Lead" can be specified commonly for a
group of electrode-detectable spots as described in the above example.
In this case, the "Normal"-specified group should be laid within the
missing-specified area over the "Check of No Lead"-specified group.
4.2 Data Explanation (B01_15)
0606-002
OK
OK
: Electrodes
: No Electrodes
Block 1 Block 2
NG
OK
Note
31 AJBES-P
(6) Missing Elctd Set
Select one of the following options to determine how symmetrically
the electrodes are missing.
No Missing Cmpnt
Normal
Vertical Symmetry
Bilateral Symmetry
Radial Symmetry
The selection of an option will simplify the designation of the missing
blocks.

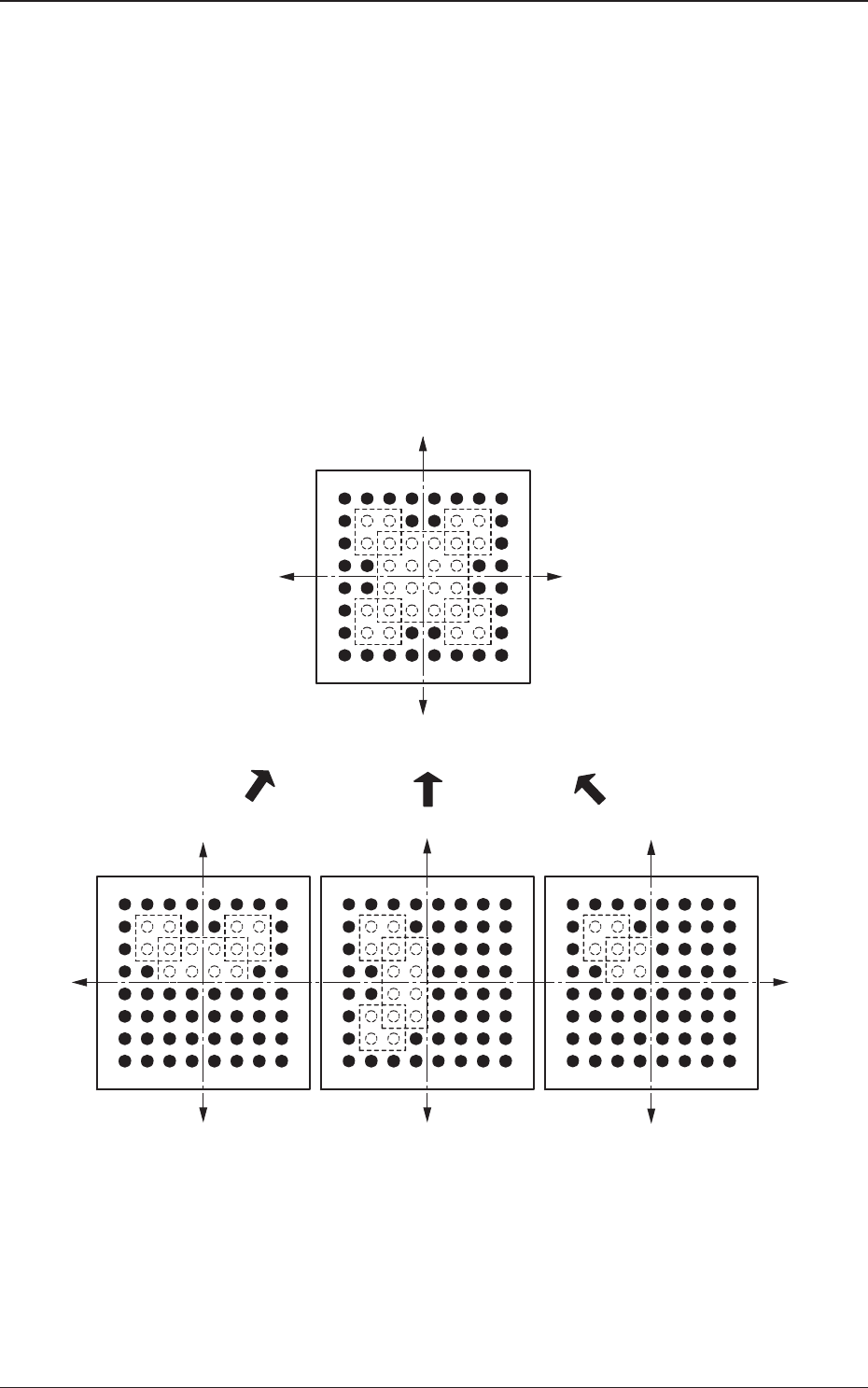

Fig. 18
4.2 Data Explanation (B01_15)
0606-002
Y(+)
Y(+)
Y(+)
Y(+)
Y(-)
Y(-) Y(-)
Y(-)
X(-)
X(+)
X(+)
X(-)
Radial Symmetry
Normal
Converted in the
internal recognition
Vertical Symmetry Bilateral Symmetry
32 AJBES-P
(7) # of Missing
Set the number of missing blocks.
When some electrodes are missing in the arrayed ones, the group of
electrodes is regarded as a block (a group of missing electrodes) and
the number of blocks can be specified.
• Data Input Range
0 to 40
(a) The above parameters must be specified when "BGA/CSP (Simple)"
is selected.
(b) The blocks can be stacked upon each other.
(c) When the number of missing blocks is set, "Missing Stg Row",
"Missing Stg Col", "# of Missing Rows [pcs.]", and "# of Missing
Cols [pcs.]" are displayed.
(8) Missing Stg Row and Missing Stg Col
Set the row and column Nos. from which the missing electrode block
starts.
The above parameters must be specified when "BGA/CSP (Simple)" is
selected.
(9) # of Missing Rows [pcs.] and # of Missing Cols [pcs.]
Set the number of missing rows and columns.
The above parameters must be specified when "BGA/CSP (Simple)" is
selected.

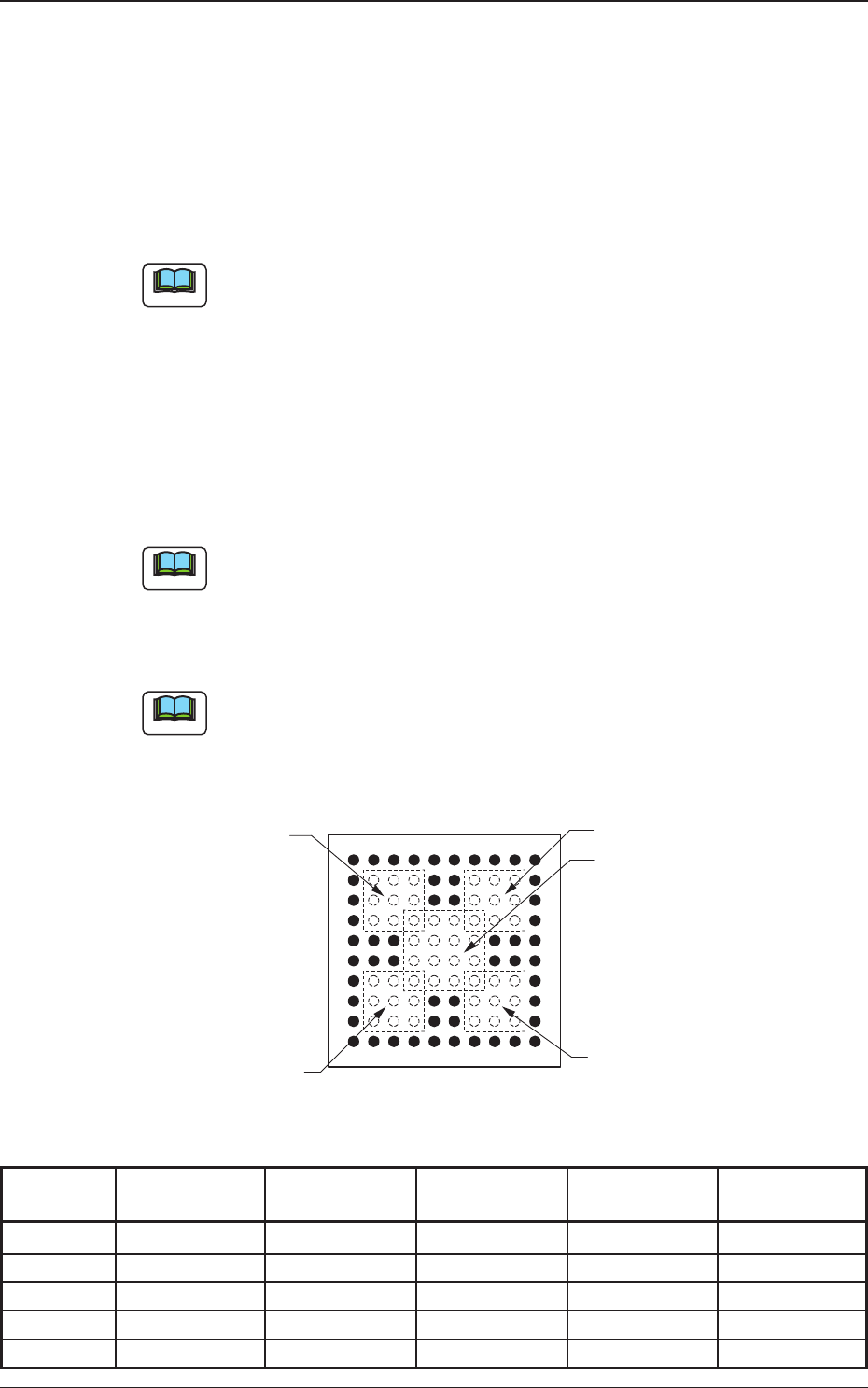

Fig. 19
Table 10
Electd Grp Missing Elctd Missing Stg Missing Stg # of Missing # of Missing
No. No. Row Col Rows Cols
1 1 002 002 003 003
1 2 007 002 003 003
1 3 007 007 003 003
1 4 002 007 003 003
1 5 004 004 004 004
Note
0606-002
4.2 Data Explanation (B01_15)
10
9
8
7
6
5
4
3
1
2
61543210
98
7
Example:
Missing Block 1
Column
Row
Top View of Component
Missing Block 2
Missing Block 4
Missing Block 5
Missing Block 3
Note
Note
