26 AJBES-P
(B01_14) Electrode Type Data
Set the shape, the dimension, etc., of the electrode.
(1) ShapeSet the shape of the electrode.
Only "Round" can be selected at present.
(2) Dim 1 [mm]
Set the diameter of the electrode in the text box.
Fig. 11
(3) Dim 2 [mm]
4.2 Data Explanation (B01_14)
0606-002
Bottom View of Components
Dim 1 (Diameter of Electrode)
27 AJBES-P
(B01_15) Electrode Group Data
The following parameters can be specified to classify some electrodes
into a group (s).
(1) Type No.
Set the electrode type data No. related to the specified group.
• Data Input Range
1 to 3
The above parameters must be specified when "BGA/CSP (Simple)" is
selected.

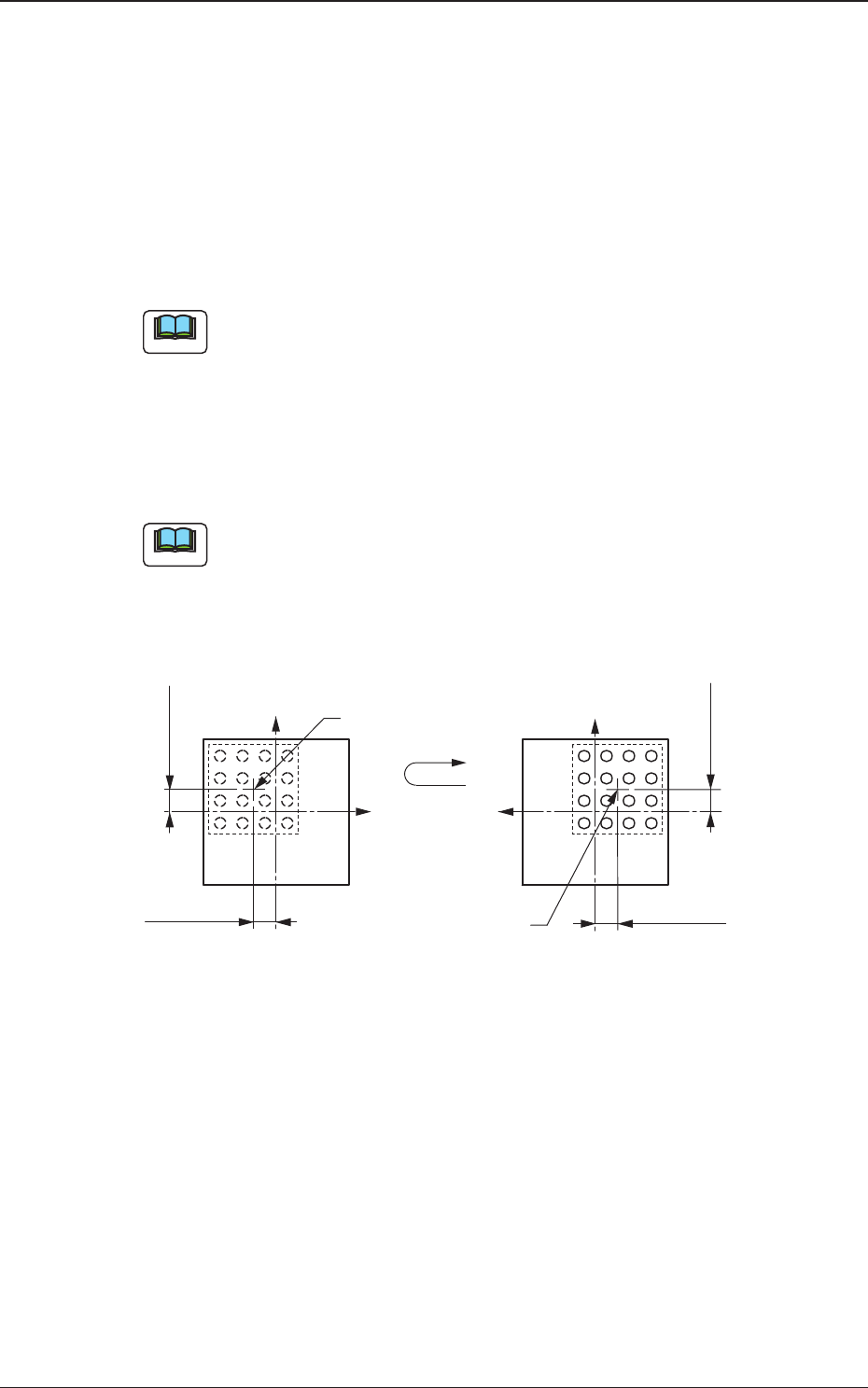

(2) Grp Posn X [mm], Y [mm]
Set the center position of the electrode group based on the center of
the mold.
(a) The above parameters must be specified when "BGA/CSP (Simple)"
is selected.
(b) As the center of the electrode group is located at the center of the
mold in normal cases, the coordinates X and Y become "0" (zero). (X,
Y = 0, 0)
Fig. 12
4.2 Data Explanation (B01_15)
0606-002
+Y
+Y
+X
+X
Position Y
Position X
Center of Electrode Group
Top View of Component Bottom View of Components
Center of Electrode
Group
Position X
Position Y
Note
Note
28 AJBES-P

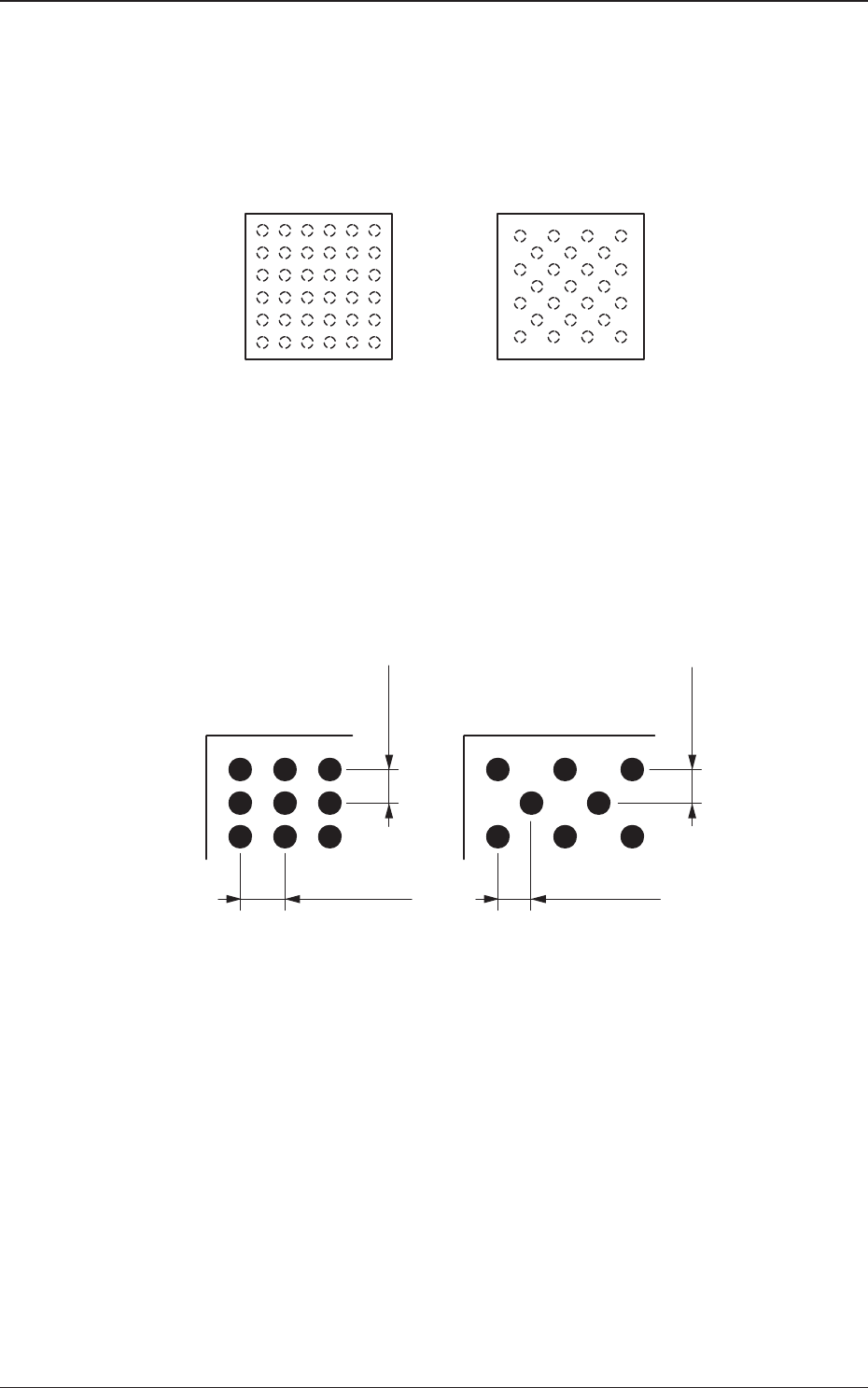

(3) # of Rows [pcs.], # of Cols [pcs.]
Set the number of rows and columns in which the electrodes are
arrayed.
Fig. 13
(4) Row Pitch [mm], Col Pitch [mm]
Set the pitches at which the electrodes are arrayed in each row and
column.
Fig. 14
4.2 Data Explanation (B01_15)
0606-002
6
15432
6
5
4
3
2
1
67
15432
7
6
5
4
3
2
1
"Checker" or "Reversed Checker"
Column Column
Row
Row
"Regular" or "Custom"
6 Rows and 6 Columns 7 Rows and 7 Columns
Top View of Component
Bottom View of Components
Row Pitch
Column Pitch
"Regular" or "Custom"
"Checker" or "Reversed Checker"
Row Pitch
Column Pitch
