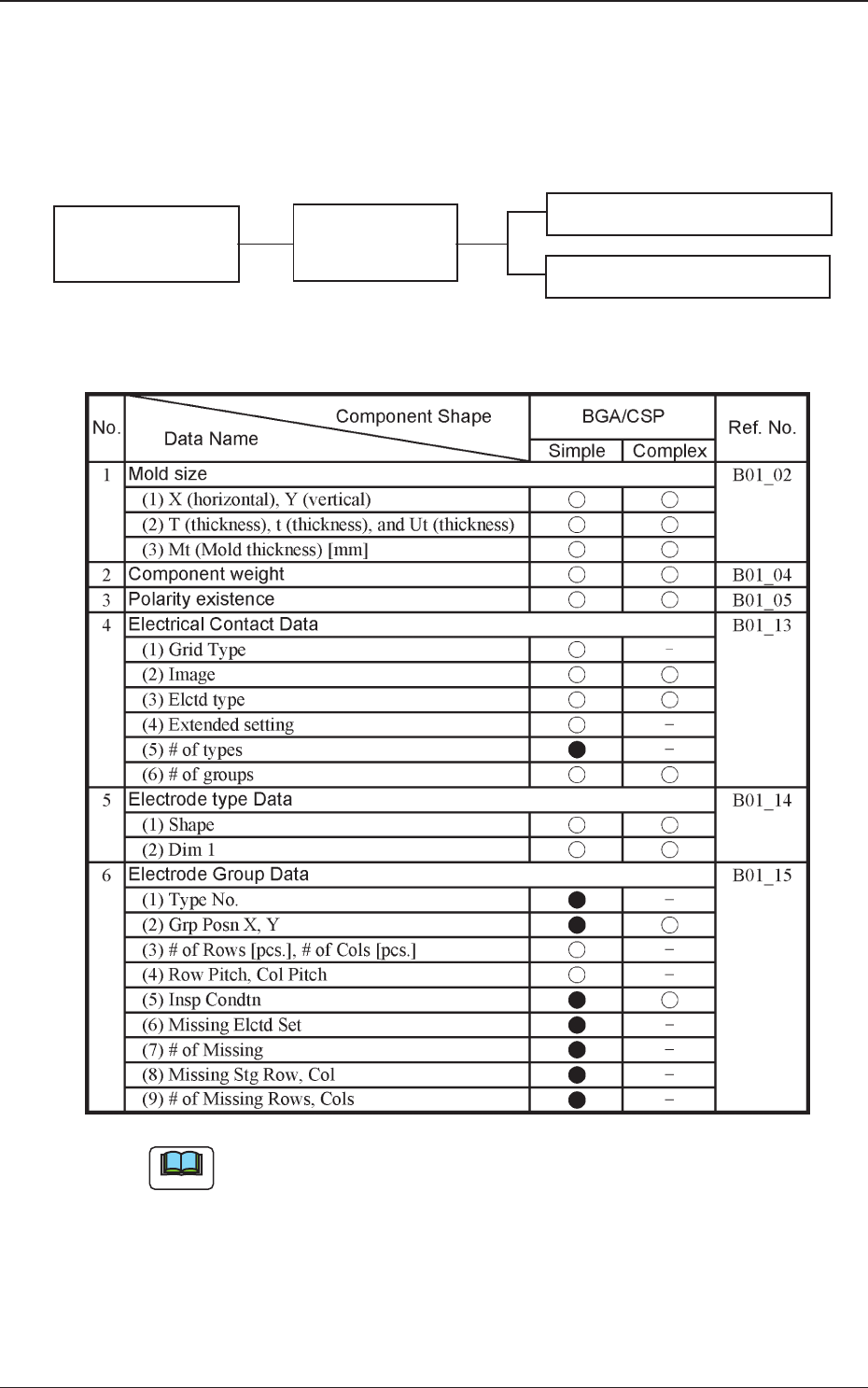

4.1.2 List of Individual Component Data

The specific data for BGA/CSP components are divided into two lists for the

explanation.

Fig. 5

Table 7

(a) "Electrical Contact Data", "Electrode Type Data", and "Electrode

Group Data" in the table are used exclusively for BGA/CSP

components.

(b) In the case of "BGA/CSP (Complex)", it is required to specify the

group position "X [mm] and "Y [mm]" and the inspection condition

for each individual electrodes because one electrode is registered as

a group.

4.1 List of Data

0606-002

Note

• Area Array

"BGA/CSP"

B01 List of Shape Data

B02 List of Recognition Data

List of Individual

Component Data

14 AJBES-P

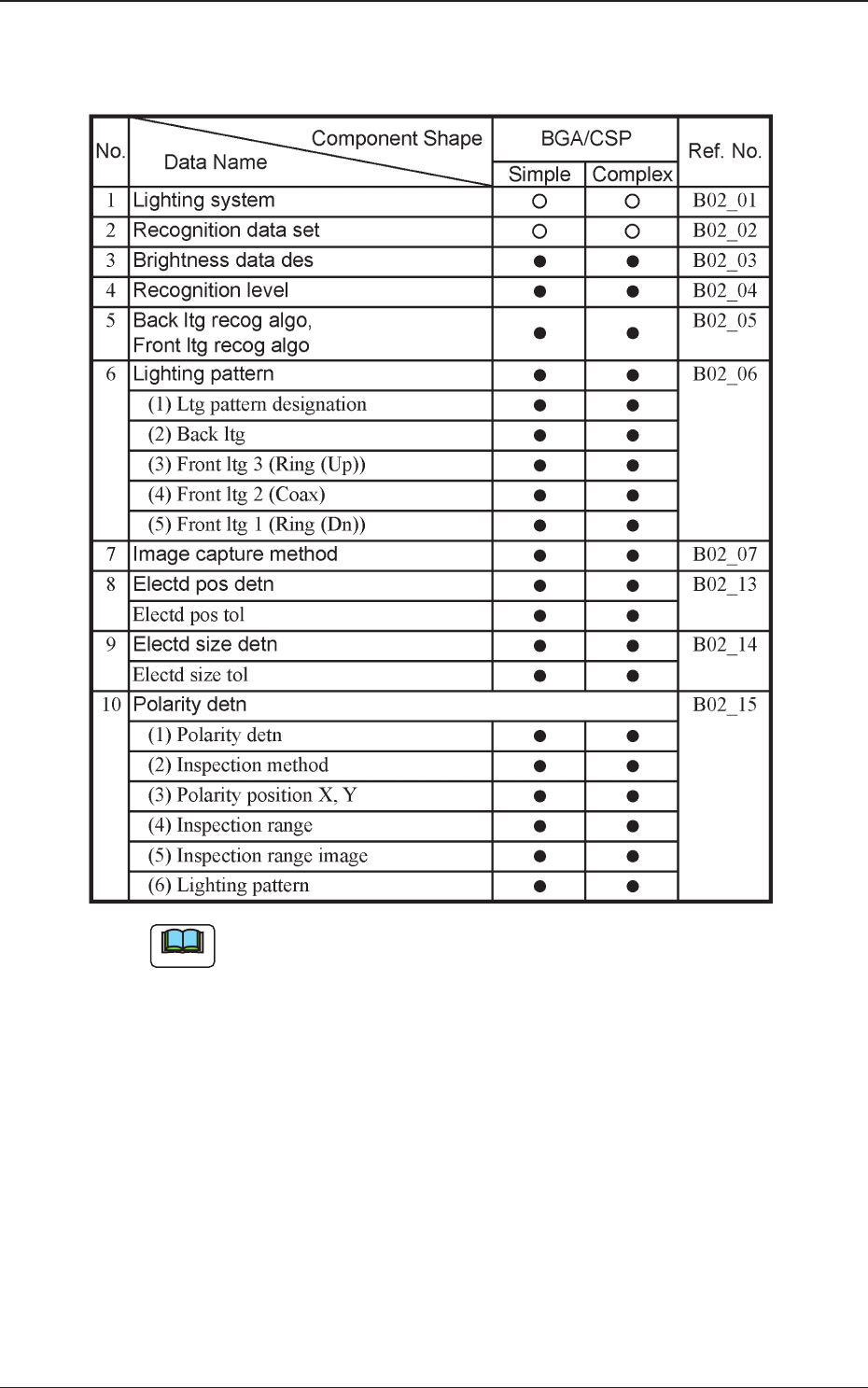

B02 List of Recognition Data

Table 8

"Electrical Contact Data", "Electrode Type Data", and "Electrode Group

Data" in the table are used exclusively for BGA/CSP components.

0606-002

4.1 List of Data

Note

15 AJBES-P

4.2 Data Explanation

4.2.1 (A01) Identification Data

(A01_01) Component ID

Refer to "Component Library for GXH Series" in the instruction manual

for details.

(A01_02) Comment

Refer to "Component Library for GXH Series" in the instruction manual

for details.

(A01_03) Component Shape

Set the shape of a component.

Select "BGA/CSP (Simple)" or "BGA/CSP (Complex)".

(A01_04) Component Type

Refer to "Component Library for GXH Series" in the instruction manual

for details.

Reference

4.2 Data Explanation (A01_01), (A01_02), (A01_03), (A01_04)

0606-002
