10 AJBES-P
A02 List of Control Data (Continued)
Table 4-1
No. Data Name Ref. No.
3 Selected nozzle #3A02_03
(1) Nozzle ID
(2) Control command
(3) Pu retention time [sec]
(4) Pl retention time [sec]
(5) Beam (X/Y) [%]
(6) Pu dclr Descent 1 [%]
(7) Pu dclr Descent 2 [%]
(8) Pu dclr Descent 2 Stroke [mm]
(9) Pu dclr Ascent [%]
(10) Pl dclr Descent 1 [%]
(11) Pl dclr Descent 2 [%]
(12) Pl dclr Descent 2 Stroke [mm]
(13) Pl dclr Ascent [%]
(14) Nozzle rotation [%]
(15) Cmpnt detection (Sensor)
(16) Air blow
(17) Air blow off timing [mm]
4 Cmpnt pos correction X [mm], Y [mm] A02_04
5 Pickup pos correction X, Y A02_05
6 Auto fdr axis adjustment X, Y A02_06
7 Error process 1 A02_07
8 Error process 2 A02_08
9 Pickup level [mm] A02_09
10 Placement level [mm] A02_10
11 Focus adjustment [mm] A02_11
12 Recognition time [sec] A02_12
13 Tape feed dclr [%] A02_13
14 Rejected cmpnt disch pos A02_14
15 Splicing supply A02_15
16 Placement height feedback A02_16
17 Cmpnt thickness check [mm] A02_17
18 Vertical cmpnt data [mm] A02_18
19 Pick-up difference detn X, Y, and A02_19
Angle Pick-up difference tol X [mm],
Y [mm] and Angle [deg]
21 Angle control A02_20
Angle control tolerance [deg]
22 Placement angle recognition A02_21
Refer to "Component Library for GXH Series" in the instruction manual
for details.
4.1 List of Data
0606-002
Reference
11 AJBES-P

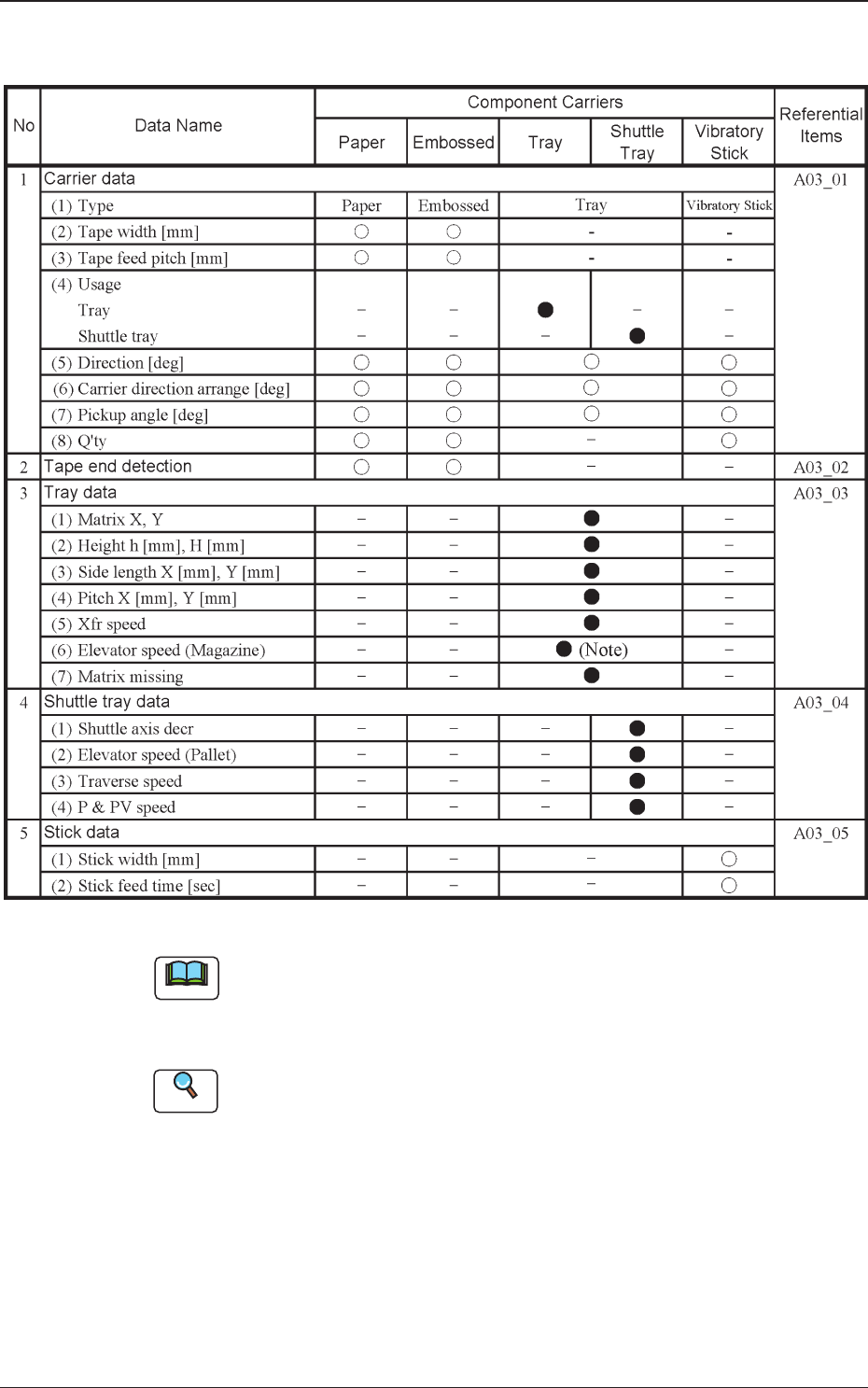

A03 List of Carrier Data
Table 5
The elevator speed of the multi-layer tray feeder must be specified in
"(6)" in "Tray data" and so as the elevator speed of the shuttle tray
feeder in "(2) Elevator speed" in "Shuttle tray data".
Refer to "Component Library for GXH Series" in the instruction manual
for details.
4.1 List of Data
Reference
0606-002
Note
12 AJBES-P
A04 List of Placeable Data
Table 6
No. Data Name Ref. No.
1 Machine Name A04_01
Refer to "Component Library for GXH Series" in the instruction manual
for details.
Reference
4.1 List of Data
0606-002
