1.1 Temperature Control Unit

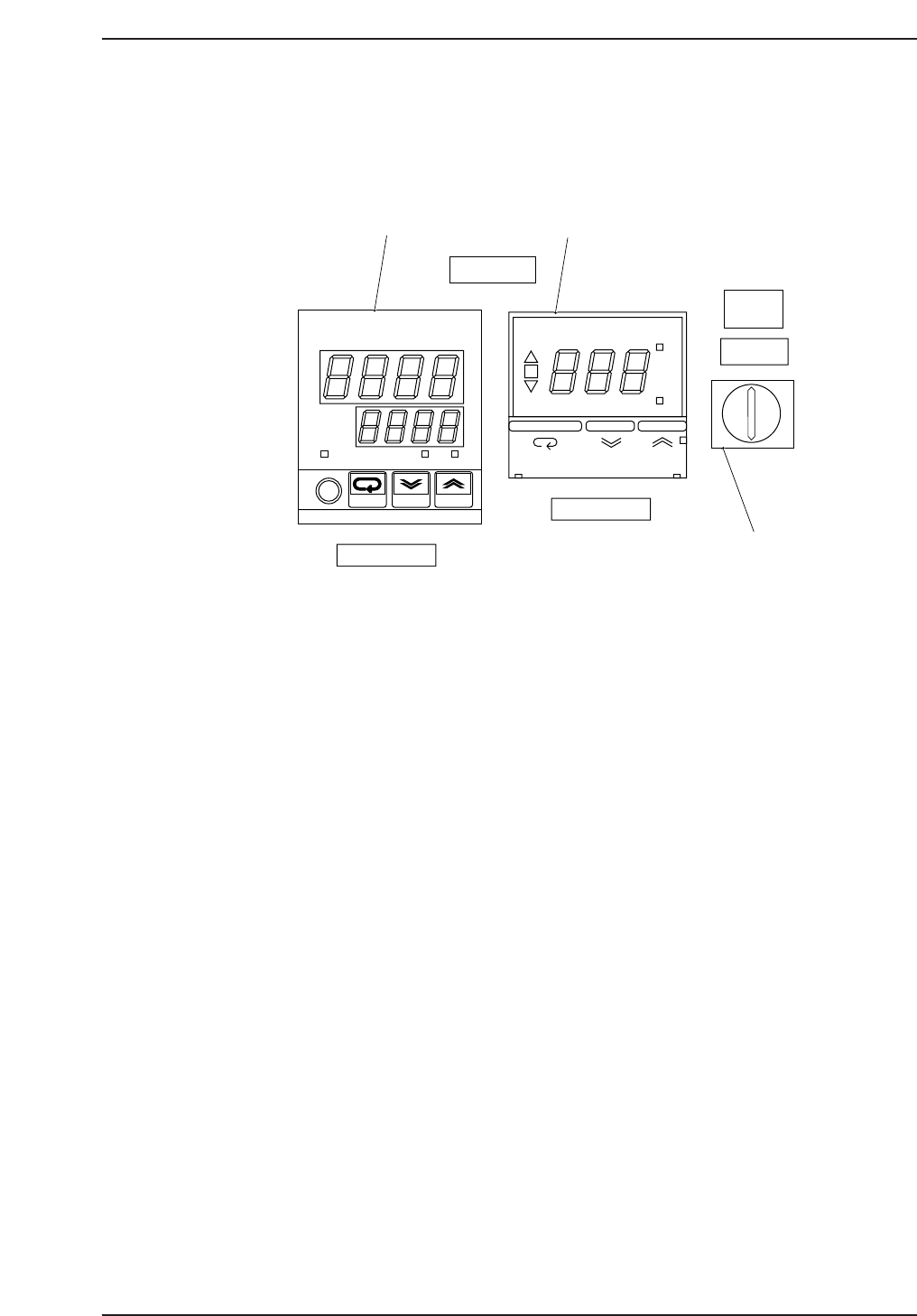

Operation Panel
1. Temperature regulator (Main)
Input the temperature under which the glue is used. This regulator
controls the current which is sent to the heater so that the temperature
reaches the set value. This regulator is used to adjust the heater
temperature.
2. Temperature regulator (for cooler unit)
Input the temperature under which the glue is used. This regulator
switches the air flow to the cooler when the supplied air temperature is
higher than the setup value.
3. Thermostat power switch
Normally, when the power to the machine is switched on, the thermostat
power switch should be ON. However, be sure to set the thermostat
power switch to OFF when the machine is in pass mode.
OUT
°C
PV
SV
ALM1 ALM2
omRon
E5CJ
ON
°C
AL
SP AL
OMRON E5CS
COOLER ON
TEMP ADJ.
POWER ON
THERMOSTAT
THERMOSTAT
ON OFF
1
2
3
1. Temperature regulator
2. Temperature regulator (for starting cooler)
3. Power switch
GL541-m60E
Chapter 1 1.1 Temperature Control Unit
Edition 1.1 1-1 GL-541E Level 3 Reference
Notes:
Chapter 1 1.1 Temperature Control Unit
Edition 1.1 1-2 GL-541E Level 3 Reference
1.2 Temperature Regulator (Main)
1. Present temperature display
The present temperature displays here. An error will display if an error
occurs in the temperature regulator.
2. #1 Warning lamp
When the controlled temperature exceeds 50 degrees (AL-1:
Temperature Upper Limit Value), this lamp comes on. When this lamp
comes on, the message "Heater Alarm" displays on the GL-541E monitor.
3. #2 Warning lamp
When the controlled temperature exceeds the permissible range by more
than ± 5 degrees, this lamp comes on. When this lamp comes on, the
message “Setup temperature ready” displays on the GL-541E monitor.
4. Setup keys
These are used to raise or lower the setup temperature.
Note: Do not change the AL-1 or AL-2 settings as this may cause damage to the equipment.
OUT
°C
PV
SV
ALM1 ALM2
omRon
E5CJ
1
2
3
4
5
6
7
8
GL541-m59E
1. Temperature display
2. #1 warning lamp
3. #2 warning lamp
4. Setup key (up /down)
5. Mode key
6. Level key
7. Output operation display lamp
8. Setup display
Chapter 1 1.2 Temperature Regulator (Main)
Edition 1.0 1-3 GL-541E Level 3 Reference
