5. Mode key The temperature display changes as shown below when this key is pressed. Note: Do not change the AL-1 or AL-2 settings as this may cause damage to the equipment. 6. Level key Normally this key should not be p…
1.2 Temperature Regulator (Main)
1. Present temperature display
The present temperature displays here. An error will display if an error
occurs in the temperature regulator.
2. #1 Warning lamp
When the controlled temperature exceeds 50 degrees (AL-1:
Temperature Upper Limit Value), this lamp comes on. When this lamp
comes on, the message "Heater Alarm" displays on the GL-541E monitor.
3. #2 Warning lamp
When the controlled temperature exceeds the permissible range by more
than ± 5 degrees, this lamp comes on. When this lamp comes on, the
message “Setup temperature ready” displays on the GL-541E monitor.
4. Setup keys
These are used to raise or lower the setup temperature.
Note: Do not change the AL-1 or AL-2 settings as this may cause damage to the equipment.
OUT
°C
PV
SV
ALM1 ALM2
omRon
E5CJ
1
2
3
4
5
6
7
8
GL541-m59E
1. Temperature display
2. #1 warning lamp
3. #2 warning lamp
4. Setup key (up /down)
5. Mode key
6. Level key
7. Output operation display lamp
8. Setup display
Chapter 1 1.2 Temperature Regulator (Main)
Edition 1.0 1-3 GL-541E Level 3 Reference

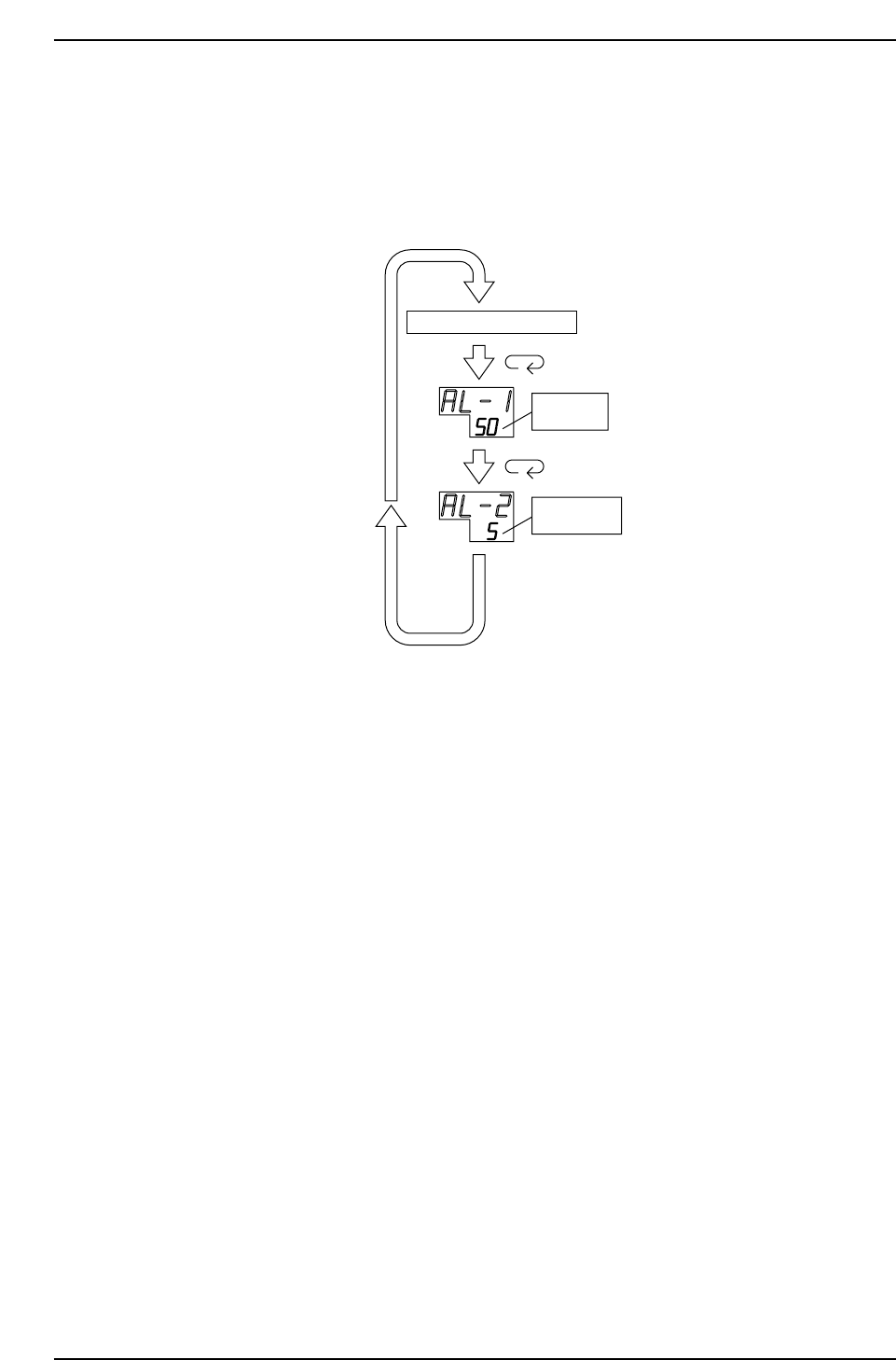

5. Mode key
The temperature display changes as shown below when this key is
pressed.
Note: Do not change the AL-1 or AL-2 settings as this may cause damage to the equipment.
6. Level key
Normally this key should not be pressed.
Note: Changing this value will result in damage to the machine.
7. Output operation display lamp
This lamp comes on when current is output to the heater.
8. Setup display
This displays the setup temperature value.
GL541-m63E
Fixed value
(for alarm)
Fixed value
(for message)
Controlled Temperature
Press key
Press key
Chapter 1 1.2 Temperature Regulator (Main)
Edition 1.0 1-4 GL-541E Level 3 Reference
1.3 Temperature Regulator (for the Cooler)
1. Variation lamp
The "up" arrow lights up when the present temperature is higher than
the set temperature, and the "down" arrow lights up when the present
temperature is lower than the set temperature.
2. Temperature display
The contents of the display are changed by pressing the temperature
status switch.
3. Control output display lamp
This lamp lights up when the atmospheric temperature (air temperature
to be used for temperature adjustment) is higher than the set
temperature. At this time, the cooler ON signal is output.
4. Catch for opening front cover
Use this to open the front cover.
5. Setup key (up)
The value in the temperature display increases when this key is pressed.
The displayed temperature continues to increase as long as the key
remains pressed. If the protect switch on the inside cover is raised, the
up arrow key will not move (this locks the key).
2
1
87
3
4
5
6
°C
AL
OMRON E5CS
GL541-m07E
1. Variation lamp
2. Temperature display
3. Control output display lamp
4. Catch for opening front cover
5. Setup key (up)
6. Setup key (down)
7. Temperature status switch key
8. Switch display lamp
ON
SP
Chapter 1 1.3 Temperature Regulator (for the Cooler)
Edition 1.1 1-5 GL-541E Level 3 Reference
