SM471 M aintenance Handbook 68 Cha pter 5 Fas t & Fl ex ibl e Chip Sho ot er A1 A2 B1 B2 A1 B1 B2 A2 460mm 40mm A1 A2 B1 B2 A1 A2 B1 B2 460mm 40mm A1 A2 B1 B2 A1 A2 B1 B2 40mm 460mm - Work Station - Exit Station - En…
SM471 Maintenance Handbook
67
Chapter 5
Fast & Flexible Chip Shooter
Chapter 5
每月检验
460mm
40mm
460mm
40mm
40mm
460mm
- Work Station
- Exit Station
- Entry Station
每月检验
5. 使用片涂刷在Work Station, Exit Station, Entry Station的 Lead Screw与LM
Guide Rail涂敷Grease。
SM471 Maintenance Handbook
68
Chapter 5
Fast & Flexible Chip Shooter
A1 A2 B1 B2
A1
B1
B2
A2
460mm
40mm
A1
A2
B1
B2
A1 A2 B1 B2
460mm
40mm
A1
A2
B1
B2
A1 A2 B1 B2
40mm
460mm
- Work Station
- Exit Station
- Entry Station
每月检验
6. 使用注油器通过Work Station, Exit Station, Entry Station的 LM Guide Rail
Nipple注入Grease。
SM471 Maintenance Handbook
69
Chapter 5
Fast & Flexible Chip Shooter
Chapter 5
每月检验

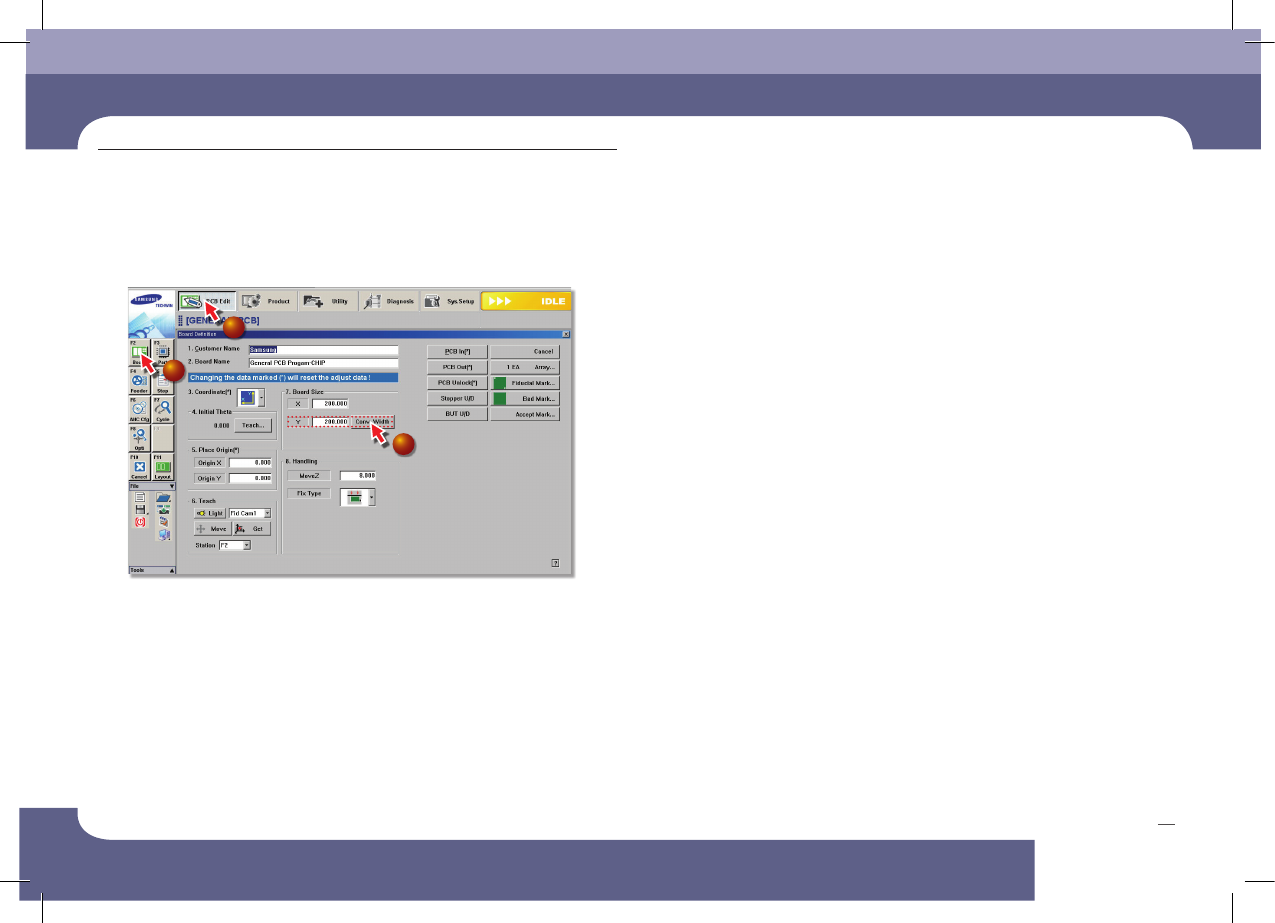

① 选择
’PCB
编辑
’
菜单
② 选择
’
基板
’
子菜单
③
<
7.
板的大小>领域输入Y方向最大值
’200’
后,点击 <传送轨道宽度>按钮
1
2
3
每月检验
7. 为了使润滑脂全体均匀分布，从输送机的最小幅(40mm)至最大幅(300mm)往
返3-4次
8. 参考“解除紧急停止(14页)”解除紧急停止后重新进行作业
