Detailed Circuit Diagrams Folder.pdf - 第49页

Sheet

Size DIN A2

electric_schematic_TX

90012154-010301LE3

Replaced by

Contactor based safety breaker: power

Replaced by

42

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und

Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.

Proprietary Data, company confidential.

Copying of this document, giving it to others and the use or

communication of the contents thereof, are forbidden without express authority.

Doc. No.

0 1 2 3 4 5 6 7 8 9

Privileged business information.

Do not release

Offenders are liable to payment of damages. All rights are reserved in the

event of the grant or the registration of a utility model or design.

insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.

Page:

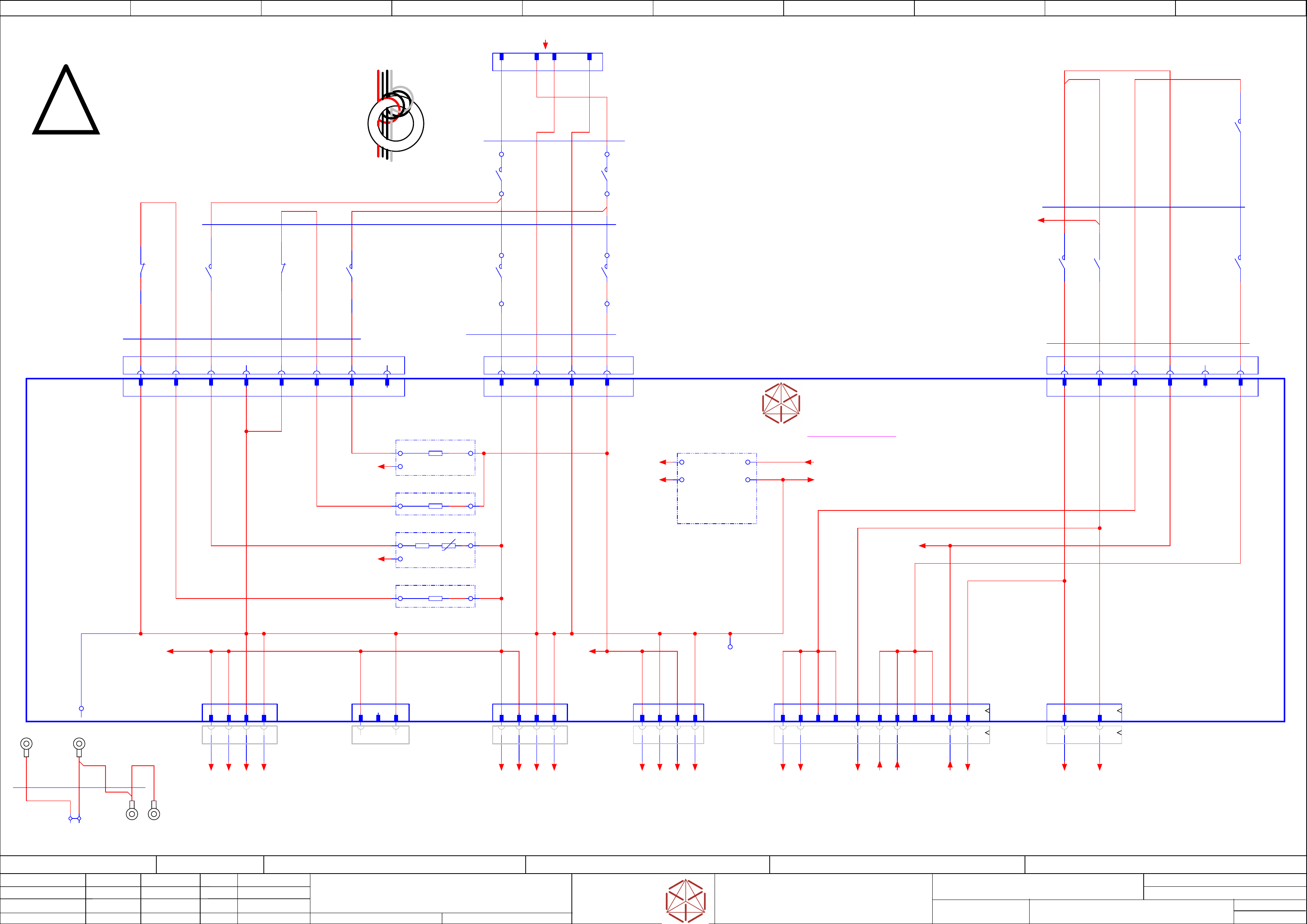

Function: Contactor Safety Breaker

==CSB=TX/42

drawing number:

03112066-020101LE3

Contactor Safety Breaker

Contactor Saf

et

y B

r

eak

er

Contactor Safety Breaker

GmbH & Co KG

ASM

Assembly Systems

Copyright reserved

Ed.

Original

Pingist

Date

Schnedlitz W.

Date

Modification

Appr

01.12.2016

Name

Version: Series from

V

ersion: S

eries f

r

om

V

ersion: Series from

Version: Series from

2016/Q4 TA500

starting MC-Nr

.: TA500 2016/Q4 G. Pingist

apply 1 winding

near X19.CSB

use all wires

- not used -

S

-X1

Cable lug

crimp 2.5 mm²

M5

-X3

Cable lug

crimp 2.5 mm²

M5

-X2

Cable lug

crimp 2.5 mm²

M5

-X4

Cable lug

crimp 2.5 mm²

M5

Safety component!

Saf

ety component!

Use specified parts only!

Use speci

fied parts only!

Use specified parts only!

300V

PGND

03108631-010301le3

A1 A2 B1 B2

-X20.CSB

Power

-in

300V, 160V

B3B1 B2

-X25.CSB

Low vol

tage control

A1 A2 A3

-K1

Switch

160V

4

3

-K1

Switch

300V

2

1

-K2

Switch

300V

2

1

-K2

Switch

160V

4

3

-K3

Switch

24V

3

4

-K3

Switch

42V

1

2

-K3

Switch

42V

6

5

-K2

Switch

24V

13

14

-K4

Pre-

charge

160V

5

6

-K4

Pre-

charge

300V

1

2

B3B1 B2 B4

-X26.CSB

Pre/Dischar

ge control

K1, K2, K4

A1 A2 A3 A4

-X19.CSB

Power

-in

300V, 160V

B1

P-GND

A1

DC 300V in

B3

P-GND

A3

DC 160V in

Cable Pre/Discharge

6x1,5

500 mm

Single core

#03119734-W3

BK

GY

RD

BK

Cable Power input

4x2,5

390 mm

Single Core

#03119732-W1

WH

RD

GY

4x2,5

Single Core

#03119732-W1

Cable Low Voltage Control

450/750V

5x

Single core MULTI-STANDARD SC 2.1

#03119733-W2.1

GY

BN

GY

YE

GY

RD

Cable Low Voltage Control

450/750V

2x1,5

Single core MULTI-STANDARD SC 2.1

#03119733-W2.2

BN

A2

A1

-X21.CSB

300V Power

3 41 2

-X22.CSB

300V Power

-X22b.CSB

-

X22b.CSB

300V Power

-X29.CSB

Safet

y Loop

& Signals

extern

1 3 3 41 2

-X24B.CSB

-

X24B.CSB

Safety control

signals to FDB

DC42V IN/OUT

1 2 9 10 13 1463 4 11 122

-X24A.CSB

Star Vol

tage

1 2 3 4

GY

Single wire connections

4x2,5

Single wire

#03121398-W7.3

GY

RD

-X300(PE)

stripping 5mm

1

Single connections CSB

Single Core

#03121398-W7.5

GNYE

-K3

DISCHARGE

CH2

21

22

P300V

1

P300V

2

PGND

3

PGND

4 104

DC 160V out

1

DC 160V out

3

GND Power

2

GND Power

4

B2

Power 160V

B1

Power GND

A2

Power GND

A1

Power300V

24V_SW

safety_controlled PL=c

A2

PWR_EN

Power enabled

A1

-X20

Power

-in

300V, 160V

921

B1

24V_Supply

B3

P42V_F16

B2

-X25

Low vol

tage control

A3

P42V_S

A2

PWR_EN

A1

24V_SW

-X21

300V Power

-X22

300V Power

-X22B

300V Power

-X24A

Safet

y

switched 160V

-X29

Safet

y Loop

& Signals

T1

PE

P300V

1

NC

2

PGND

3

P300V

1

P300V

2

PGND

3

PGND

4

-X24B

Safet

y

control signals

42V IN/OUT

B1

P_GND

B3

160V_PRE

B2

DISCHARGE CONT2

B4

n/c

-X26

Pre/Dischar

ge control

A4

P_GND

A3

300V_PRE

A2

DISCHARGE CONT1

A1

P_GND

DC 42 V safety-

controlled

3

Power enabled

6 12

DC 42 V F16

11

24V_SW

14

24V Supppy

13

-T1:1

PGND

-DIAG

Precharge and discharge

resistor diagnostic

and error detection

Out11

Out22 Supply 3

GND 4

-Precharging.160V

-Pr

echarging.160V

-Precharging.300V

-Pr

echarging.300V

-Discharge.160V

-R

-R_Th

Voltage monitor

-R

-Discharge.300V

-A2

Safet

y breaker unit

Safety breaker uni

t

Safety breaker unit

PCB Pre-/discharge assembly

PCB Pr

e-/discharge assembly

PCB Pre-/discharge assembly

PCB Pr

e-/discharge assembly

-K4

DISCHARGE

CH1

71

72

BK

==+-24V_F12_Aux

-K2:43 /41.1

-POWER_ENABLE

==PS005+ELS/40.8

-DC160V-S-1

==PS005+ELS/40.6

-P-GND-21-1

==PS005+ELS/40.1

-P-GND-21-2

==PS005+ELS/40.1

-DC300V-21-1

==PS005+ELS/40.0

-DC300V-21-2

==PS005+ELS/40.0

-P-GND-22b-1

==PS005+ELS/40.2

-P-GND-22b-2

==PS005+ELS/40.2

-DC300V-22b-1

==PS005+ELS/40.1

-DC300V-22b-2

==PS005+ELS/40.2

-DC160V-S-2

==PS005+ELS/40.6

-P-GND-24-2

==PS005+ELS/40.6

-P-GND-24-4

==PS005+ELS/40.6

-24V-in-F12

==PS005+ELS/40.9

-DC24V_S_DIS

==PS005+ELS/40.4

-DI13_PWR_enabled

==PS005+ELS/40.3

-42V1_F16

==PS005+ELS/40.8

-42V2_F16

==PS005+ELS/40.8

-DC42V-S-2

==PS005+ELS/40.7

-DC42V-S-1

==PS005+ELS/40.7

-DC24V-S

==PS005+ELS/40.9

24V-Supply

/41.5

-P300V

/41.6

-P160V

/41.6

DIAGN_RD_N

/41.4

DIAGN_K_N

==EMG=TX_EMG+CSB/141.3

24VSafe

/41.5

Safe supply

P_GND

/41.5

Power Ground

VDIFFMON1

/41.6

VDIFFMON2

/41.7

-PWR-160/300V

==PS005+ELS/38.1

Sheet

Size DIN A2

electric_schematic_TX

90012154-010301LE3

Replaced by

Distributor Connector -X21, -X22 /

-X1, -X2, -X3 /

-X1, -

X2, -X3 /

-X1, -X2, -X3 /

- X11,-X14

Replaced b

y

43

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und

Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.

Proprietary Data, company confidential.

Copying of this document, giving it to others and the use or

communication of the contents thereof, are forbidden without express authority.

Doc. No.

00 01 02 03 04 05 06 07 08 09

Privileged business information.

Do not release

Offenders are liable to payment of damages. All rights are reserved in the

event of the grant or the registration of a utility model or design.

insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.

Page:

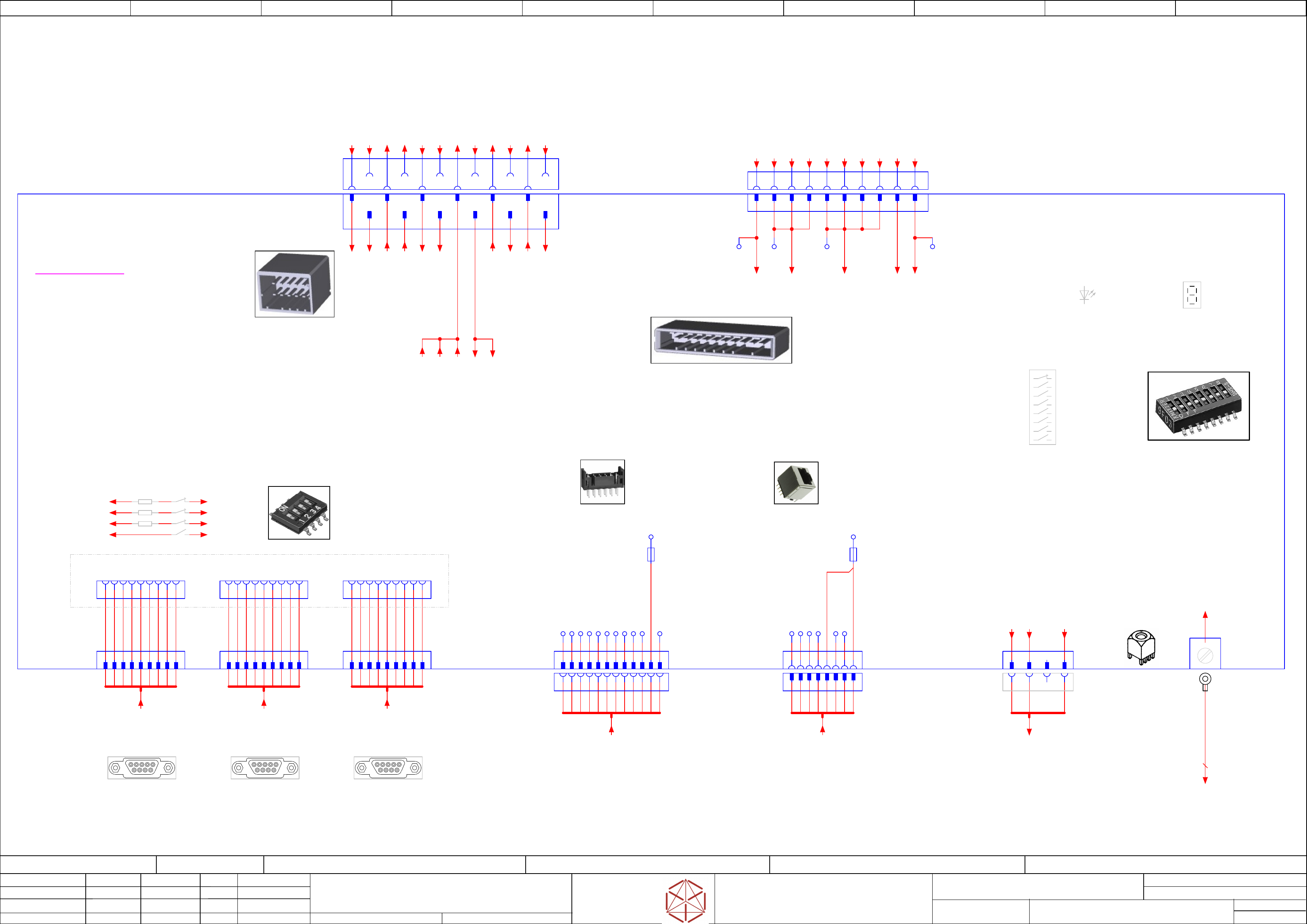

Function: Distributor

==DI=TX/43

drawing number:

03123463-020101LE3

Distributor

GmbH & Co KG

ASM

Assembly Systems

Copyright reserved

Ed.

Original

Pingist

Date

Modification

Appr

01.12.2016

Name

Version: Series from

V

ersion: S

eries f

r

om

V

ersion: Series from

Version: Series from

2016/Q4 TA500

starting MC-Nr

.: TA500 2016/Q4 G. Pingist

-PE

Terminal

Ring Tongue M5

03121427-010201le3

-To Fuse and Distribution -

-

To Fuse and Distribution -

(extern Service) (PC 2)

-To Safety Breaker -

-

T

o Saf

et

y B

reaker -

-To Safety Breaker -

MC-identifcation

reserved

Serial-bootstrap

CAN-bootstrap

Reset-state

Option Switches

Dip-Switch SW1

LED-DISPLAY

LED-DISPL

AY

- GREEN -

-LED1

Display

Reset-LED

R

eset-LED

- RED -

-D66

Reset

-X14

RS485

for PSU

f

or PSU

f

or PSU

for PSU

1 2 3 4 5 6 87

-X14.DI

-

X14.DI

RS485/PSU

RJ45

1 2 3 4 5 6 7 8

1 2 3 4 6 7 85

LITTLEFUSE

33V 1,1A

SMT 1812

1 2 3 4 6 7 8 95 1 2 3 4 6 7 8 95 1 2 3 4 6 7 8 95

CAN Service-Connection (Sub-D)

Termination:

T

ermination:

T

ermination:

T

ermination:

S1.1 CAN1 = ON

S1.2 CAN2 = ON

S1.3 CAN3 = ON

S1.4 Not used

CAN-B

us termination

Dip-Switch S1

1 2 3 4 6 7 8 129 10 115

LITTLEFUSE

13,2V 0,75A

SMT 1812

LITTLEFUSE

13,2V 0,75A

SMT 1812

1 2 3 4

31 2

ON

-DI

I/O control unit

I/O contr

ol unit

Distributor-assembly TX

Distributor

-assembly TX

-X22

Safet

y-Loop & Signals

Safety-Loop & Signals

Safet

y-Loop & Signals

Safety-Loop & Signals

from

f

rom

Power supply SMPS

Dynamic-2100D Board-Mounting X-Key

1318126-1

A1

B1

A2

B2

A3 A4

B3 B4

A5 A6

B5 B6

1,5 GNYE 300 mm

-X39

BUSHING

SCREW TERMINAL M5

746 030 5

PE

-X21

-

X21

-X21

Power 24V DC f

rom Fuse

Power 24V DC from Fuse

Power 24V DC f

rom Fuse

Power 24V DC from Fuse

and distribution board

1 2 3 4 5 6 7 8 9 10

MP3MP2

Distributor

Power DC 24 V

-X21.DI

2 41 3 6 85 7 109

MP4MP1

Safety-loop

& Signals

-X22.DI

B1 B2

A1 A2 A3

B3

A4

B4

A5

B5

A6

B6

2

3

4

5

6

7

8

-SW1

1

RS485_OUT_NINV

RS485_OUT_INV

RS485_IN_INV

RS485_IN_NINV

LGND

-F3

+24V0

-X2

CAN2

-X1

CAN1

-CAN2.DI

Machine_CAN-Bus 2

Sub-D 9pol. female

-CAN1.DI

Machine_CAN-Bus 1

Sub-D 9pol. female

-CAN3.DI

Machine_CAN-Bus 3

Sub-D 9pol. female

-X3

CAN3

-X2_1

CAN2

-X1_1

CAN1

-X3_1

CAN3

1 4 58 92

CAN_L

3

GND

6

GND

7

CAN_H

1 6 2 7 3 8 4 9 5 2 3 4 51 6 7 8 9 2 3 4 51 6 7 8 9

120R

1 6

GND

2

CAN_L

7

CAN_H

3

GND

8 4 9 5 1 6

GND

2

CAN_L

7

CAN_H

3

GND

8 4 9 5

54

-X11

Dif

f. Communication to

Diff. Communication to

Dif

f. Communication to

Diff. Communication to

FUSE-Detection

FUSE_IN_MISO_NINV

FUSE_IN_MISO_INV

FUSE_OUT_CLK_NINV

FUSE_OUT_CLK_INV

FUSE_OUT_LATCH_NINV

FUSE_OUT_LATCH_INV

MTSR

EXT1

EXT2

DETECT_DISTRBRD

LGND

-F2

1 2 3 4 5 6 7 8 9 10 11 12

-X11.DI

Fuse-Diagnostic

serial interface

+5V0

S1

81

72

63

-X38

Power 24V DC _ PC2

1 2 3 4

-X38.DI

1 2 3 4

-IN-Safety_Loop1.1

-DI-X23:4 ==CH+DI/49.01

-OUT-Safety_Loop1.9

-DI-X36:11 ==CH+DI/49.09

-IN-Safety_Loop2.1

-DI-X23:5 ==CH+DI/49.01

-DI_13_PWR_Enabled

-DI:DI_13 /44.02

-OUT-Safety_Loop2.9

-DI-X36:12 ==CH+DI/49.09

-DI_0_Safety_Loop_OK

-DI:DI_0 /44.00

-Safety_Loop1_ext.in

-DI-X28:8 ==CH+DI/51.02

-Safety_Loop1_ext.out

-DI-X28:9 ==CH+DI/51.02

-Safety_Loop2_ext.in

-DI-X29:8 ==CH+DI/51.07

-Safety_Loop2_ext.out

-DI-X29:9 ==CH+DI/51.07

(SSK)-Start_Button_1

-DI-X23:3 ==CH+DI/49.01

(SSK)-Start_Button_3

-DI-X25:3 ==CH+DI/50.00

(SSK)-Start_Button_2

-DI-X24:3 ==CH+DI/49.04

-DI_10_24V_S(SSK)

44.01

-24V_S(SSK)

==CH+DI/50.02

==CH+DI/50.08

==CH+DI/51.01

==CH+DI/51.06

==CH+DI/52.01

==CH+DI/53.03

-PE.DI

-GND_6

==PS005+ELS/40.06

-GND_5

==PS005+ELS/40.06

-24V_1(F3)

==PS005+ELS/40.05

-PE1

==PS005+ELS/40.06

-GND_7

==PS005+ELS/40.06

-24V_2(F4)

==PS005+ELS/40.05

-24V_3(F4)

==PS005+ELS/40.06

-24V_4(F4)

==PS005+ELS/40.06

-GND_8

==PS005+ELS/40.06

-24V_PC2(F6)

==PS005+ELS/40.07

-24V0(F4)

44.02

44.07

==CH+DI/49.01

==CH+DI/49.02

==CH+DI/49.05

==CH+DI/49.08

==CH+DI/50.03

==CH+DI/50.06

==CH+DI/50.08

==CH+DI/51.02

==CH+DI/51.06

==CH+DI/51.07

==CH+DI/52.01

==CH+DI/52.07

==CH+DI/53.01

==CH+DI/53.03

==CH+DI/53.06

-24V(F3)

==CH+DI/50.01

==CH+DI/52.07

-24V(F6)

43.07

-LGND

43.07

44.04

44.06

==CH+DI/49.01

==CH+DI/49.04

==CH+DI/49.07

==CH+DI/50.00

==CH+DI/50.02

==CH+DI/50.05

==CH+DI/50.09

==CH+DI/51.01

==CH+DI/51.02

==CH+DI/51.06

==CH+DI/51.07

==CH+DI/52.02

==CH+DI/52.04

==CH+DI/52.05

==CH+DI/52.08

==CH+DI/53.01

==CH+DI/53.04

==CH+DI/53.05

==CH+DI/53.06

==CH+DI/53.07

-DC24V_S_DIS

==PS005+ELS/40.04

-Safety_Start_SSK

==PS005+ELS/40.03

-Loop1_OUT

==PS005+ELS/40.03

-Loop2_OUT

==PS005+ELS/40.03

-Loop1_IN

==PS005+ELS/40.03

-Loop2_IN

==PS005+ELS/40.03

-Safety_Loop1_ext.in

==PS005+ELS/40.04

-Safety_Loop1_ext.out

==PS005+ELS/40.04

-Safety_Loop2_ext.in

==PS005+ELS/40.04

-Safety_Loop2_ext.out

==PS005+ELS/40.04

-DI13_PWR_enabled

==PS005+ELS/40.03

-DI0_Safety_Loop_OK

==PS005+ELS/40.03

-RS485_PSU

RS485 Power supply units

==PS005+ELS/38.06

-W17.1

-CAN2_DI

-CAN1_DI

-CAN3_DI

==-CAN1_H

==-CAN2_H

==-CAN3_H

==-CAN1_L

==-CAN2_L

==-CAN3_L

==-NC==-NC

-RS485_DIAG_CAP

Fuse and distribution

Diagnostic serial interface

==PS005+ELS/39.06

-W17

-PE

43.09

-PE

43.06

43.08

==CH+DI/52.08

-PE

43.09

-24V(F6)

43.07

-PC2

Optional

-LGND

43.06

Sheet

Size DIN A2

electric_schematic_TX

90012154-010301LE3

Replaced by

Optical LED-Display_

Digital-Input / Digital-Output

Digi

tal-Input / Digital-Output

Digital-Input / Digital-Output

Replaced by

44

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und

Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.

Proprietary Data, company confidential.

Copying of this document, giving it to others and the use or

communication of the contents thereof, are forbidden without express authority.

Doc. No.

00 01 02 03 04 05 06 07 08 09

Privileged business information.

Do not release

Offenders are liable to payment of damages. All rights are reserved in the

event of the grant or the registration of a utility model or design.

insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.

Page:

Function: Distributor

==DI=TX/44

drawing number:

03123463-020101LE3

Distributor

GmbH & Co KG

ASM

Assembly Systems

Copyright reserved

Ed.

Original

Pingist

Date

Modification

Appr

01.12.2016

Name

Version: Series from

V

ersion: S

eries f

r

om

V

ersion: Series from

Version: Series from

2016/Q4 TA500

starting MC-Nr

.: TA500 2016/Q4 G. Pingist

Optical LED display

- Digital-Input

- Digital-Output signals

Digital inputs DI_0 … DI_7 Digital inputs DI_8 … DI_15 Digital inputs DI_16 … DI_23 Digital inputs DI_24 … DI_31 Digital inputs DI_32 … DI_39 Digital outputs DO_0 … DO_7 Digital outputs DO_8 … DO_15 Digital outputs DO_16 … DO_23

Digital input stage

with decoupling diode

Digital input stage

Decoupling diode Decoupling diode

Digital input stage

FAN control and monitoring

Sensor poutput _ FAN

VFAN= 24V DC

Controlled via Relay K1 (S_Hood 1) AND K2 (S_Hood 2)

Test button

Note:

The relay contact drawing shows the relay

in the non-active mode (normal position).

JUMPER

-DI

I/O control unit

I/O contr

ol unit

Distributor-assembly TX

Distributor

-assembly TX

03121427

DI_3

DI_6

DI_5

DI_4

D_2

DI_1

DI_0

DI_7

DI_8

DI_9

DI_10

DI_11

DI_12

DI_13

DI_14

DI_15

DI_19

DI_23

DI_22

DI_21

DI_20

DI_18

DI_17

DI_16

DI_27

DI_31

DI_30

DI_29

DI_28

DI_26

DI_25

DI_24

/DI_35

/DI_39

/DI_38

/DI_37

/DI_36

/DI_34

/DI_33

/DI_32

DO_6

DO_5

DO_4

DO_3

DO_2

DO_1

DO_0

DO_7

DO_14

DO_13

DO_12

DO_11

DO_10

DO_9

DO_8

DO_15

DO_22

DO_21

DO_20

DO_19

DO_18

DO_17

DO_16

DO_23

D56D55 D59D58 D61D60 D65D64

5 (A1+)

1 (A2-)

2 (12)

4 (11)

3 (14)

5 (A1+)

1 (A2-)

2 (12)

4 (11)

3 (14)

-K2

Fan control (ON/OFF)

F

an control (ON/OFF)

Finder - Miniature industrial relays, 16 A

46 Series (46.61.9.024.0040)

03123859

5 (A1+)

1 (A2-)

2 (12)

4 (11)

3 (14)

-K3

Reserve (not mounted)

R

eserve (not mounted)

Finder - Miniature industrial relays, 16 A

46 Series (46.61.9.024.0040)

03123859

LGND

3

2

-J1(K3)

1

3

2

J2(K3)

1

-K1

Fan control (ON/OFF)

F

an control (ON/OFF)

Finder - Miniature industrial relays, 16 A

46 Series (46.61.9.024.0040)

03123859

K1 & K2 = not function

-DI_2_EMG_Stop_2

-DI-X24:12 ==CH+DI/49.06

-DI_4_PresSens_PV1

-DI-X31:5 ==CH+DI/52.01

-DI_5_PresSens_MainValve

(not used)

-DI-X31:6 ==CH+DI/52.01

-DI_0_Safety_Loop_OK

-DI-X22:A3 /43.03

-DI_3_Res

-DI-X31:4 ==CH+DI/52.01

-DI_1_Res

-DI-X33:3 ==CH+DI/52.08

-DI_6_Identify_VP

(Vacuum_pump)

-DI-X30:4 ==CH+DI/50.08

-DI_7_Identify_FC

(Frequenz_Conv.) Res.

-DI-X30:5 ==CH+DI/50.08

-DI_8_Start_Button_1

==CH+DI/49.02

==CH+DI/50.01

-DI_9_Stop_Button_1

==CH+DI/49.02

==CH+DI/50.01

-DI_10_24V_S(SSK)

43.03

-DI_11_Start_Button_2

-DI-X24:7 ==CH+DI/49.05

-DI_12_Stop_Button_2

-DI-X24:8 ==CH+DI/49.05

-DI_13_PWR_Enabled

-DI-X22:B3 /43.03

-DI_14_EMG_Stop_1

-DI-X23:12 ==CH+DI/49.02

-DI_15_EMG_Stop_Ext

==CH+DI/50.01

==CH+DI/51.03

==CH+DI/51.07

-DI_16_Button_COTi_2

-DI-X24:9 ==CH+DI/49.05

-DI_17_Hood_2

-DI /44.06

-DI_18_Comp_Table_2

-DI-X29:7 ==CH+DI/51.07

-DI_22_Res

-DI-X37:5 ==CH+DI/53.03

-DI_21_Res

-DI-X37:4 ==CH+DI/53.03

-DI_23_Res

-DI-X37:6 ==CH+DI/53.03

-DI_19_Hood2_Lock_on

-DI-X27:7 ==CH+DI/50.06

-DI_20_Res

-DI-X33:4 ==CH+DI/52.08

-DI_24_Button_COTi_1

-DI-X23:9 ==CH+DI/49.02

-DI_25_Hood_1

-DI /44.04

-DI_26_Comp_Table_1

-DI-X28:7 ==CH+DI/51.02

-DI_30_Flap_Lock_on

-DI-X36:7 ==CH+DI/49.08

-DI_29_S_Flap_ExCo

(Option-

extension_Conveyor)

-DI-X36:6 ==CH+DI/49.08

-DI_31_ID_ExCo

-DI-X36:10 ==CH+DI/49.09

-DI_28_Res

==CH+DI/50.08

==CH+DI/52.08

-DI_27_Hood1_Lock_on

-DI-X26:7 ==CH+DI/50.03

-DI_32_Fan_1

-DI-X34:1 ==CH+DI/53.01

-DI_33_Fan_2

-DI-X34:2 ==CH+DI/53.01

-DI_34_Fan_3

-DI-X34:3 ==CH+DI/53.01

-DI_35_Fan_4

-DI-X34:4 ==CH+DI/53.01

-DI_36_Fan_5

-DI-X35:1 ==CH+DI/53.06

-DI_37_Fan_6

-DI-X35:2 ==CH+DI/53.06

-DI_38_Fan_7

-DI-X35:3 ==CH+DI/53.06

-DI_39_Fan_8

-DI-X35:4 ==CH+DI/53.06

-DO_1_Control_ON

==CH+DI/49.01

==CH+DI/49.04

==CH+DI/50.00

-DO_3_Pressure_PV1

-DI-R315 ==CH+DI/52.02

-DO_6_Vac_Pump_ON

-DI-X30:8 ==CH+DI/50.09

-DO_7_Interior_light

-DI-X30:7 ==CH+DI/50.08

-DO_4_Hood_Lock2

-DI-X27:2 ==CH+DI/50.05

-DO_5_Hood_Lock1

-DI-X26:2 ==CH+DI/50.03

-DO_2_Res

-DI-X31:8 ==CH+DI/52.02

-DO_0_Res

-DI-X37:11 ==CH+DI/53.04

-DO_10_Indicator_1_RD

-DI-X32:4 ==CH+DI/52.04

-DO_11_Indicator_2_RD

-DI-X32:9 ==CH+DI/52.05

-DO_12_Indicator_1_GN

-DI-X32:1 ==CH+DI/52.04

-DO_13_Indicator_1_YE

(Optonal WH)

-DI-X32:2 ==CH+DI/52.04

-DO_14_Indicator_2_YE

(Optonal WH)

-DI-X32:7 ==CH+DI/52.05

-DO_15_Indicator_2_GN

-DI-X32:6 ==CH+DI/52.05

-DO_9_Buzzer

-DI-X32:5 ==CH+DI/52.05

-DO_8_Res

-DI-X37:12 ==CH+DI/53.04

-DO_18_Service

-DI-X25:11 ==CH+DI/50.01

-DO_17_Service

-DI-X25:10 ==CH+DI/50.01

-DO_16_Service

-DI-X25:9 ==CH+DI/50.01

-DO_23_Res

-DI-X33:8 ==CH+DI/52.08

-DO_22_Res

-DI-X33:7 ==CH+DI/52.08

-DO_21_Res

-DI-X33:6 ==CH+DI/52.08

-DO_20_Res

44.09

==CH+DI/53.04

-DO_19_Flap_Lock_ExCo

(Option extension_Conveyor)

==CH+DI/49.07

==CH+DI/53.04

-S_Hood2

(K2, DI_17_Hood_2)

-DI-X27:6 ==CH+DI/50.06

-DI_17_Hood_2

-DI:DI_17 /44.02

-S_Hood1

(K1, DI_25_Hood_1)

-DI-X26:6 ==CH+DI/50.03

+-24V0(F4)

43.06

-LGND

43.06

+-LGND

43.06

-DI_25_Hood_1

-DI:DI_25 /44.04

-24V_S_Hood

==CH+DI/53.01

==CH+DI/53.06

+-24V0(F4)

43.06

+-DO_20_Res

44.09

-J1_3

==CH+DI/53.04

-K3_14

==CH+DI/53.03

-K3_12

==CH+DI/53.03

-J2_3

==CH+DI/53.04
