Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 Issue 02/2009
18
4.3.3 EDM Line (Line Server)
The Master Server must be known to install a Line Server.
Confirm the selection with the "Next" button.
Figure 8 Selecting the Master Server
Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 02/2011 Edition
19 / 65
4.3.4 EDM Master (Master Server) / EDM Master with Clearing Pool and Data Transfer
Manager
Figure 9 Configuring the EDM database
The installation procedure is identical for both options. You are first asked to select the server for the
Clearing Pool database (Figure 9 Configuring the EDM database) and to enter the password for the
database user 'sa'. Only SQL server instances on the local host are available for selection.
If no EDM database yet exists, confirm creation of the new database and enter the database options in the
following screen (Figure 10 EDM database options). The default settings are generally sufficient. Confirm
your entries with "Next".
Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 Issue 02/2009
20

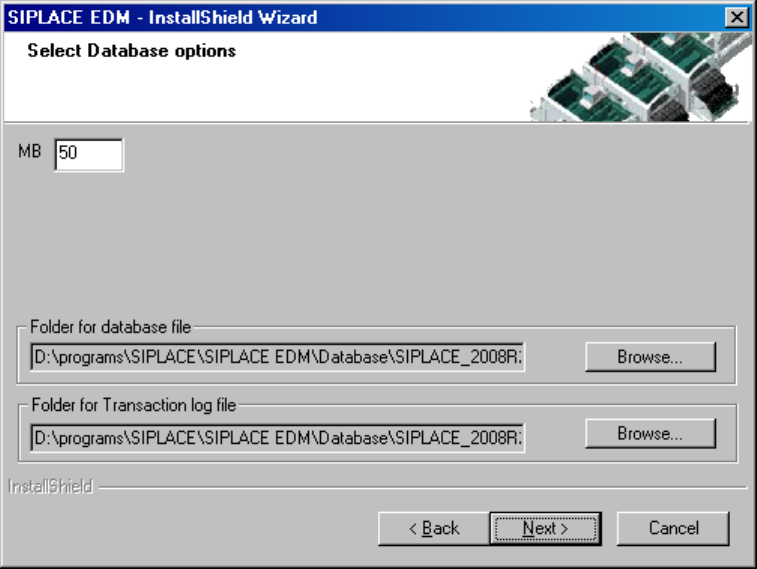

Figure 10 EDM database options
If a compatible EDM database has already been read in, this is taken over and converted to the current
version. Otherwise you are asked whether you want to replace the database or select a different server.
Confirm your selection with "Next".
