Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 02/2011 Edition
5 / 65
1 Introduction
The goal of this document is to provide the consultants who will be setting up SIPLACE EDM systems at
the customers with a guide detailing the technical aspects involved in such an installation.
Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 Issue 02/2009
6
2 System components
2.1 Overview
The Engineering Data Manager comprises two major units: the EDM Master Server and the EDM Line
Server. Figure １shows the internal structure of the application components and the communication
between the individual system components.

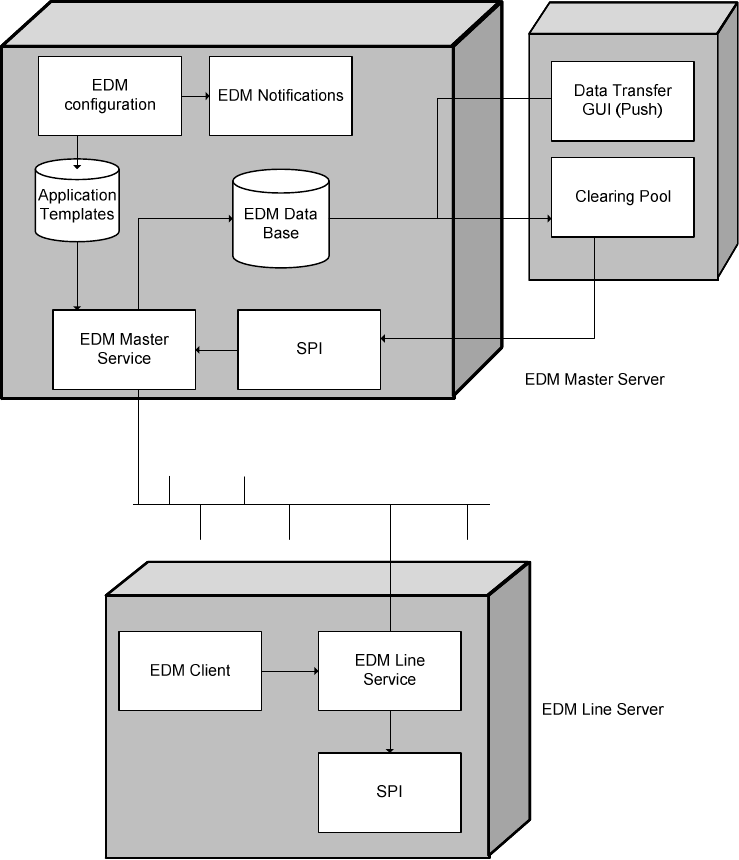

１Structure of the EDM system
The following sections discuss the system components, their function and their communication channels in
more detail.
