Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 02/2011 Edition
55 / 65
5.4 EDM configuration
5.4.1 Application templates
As already mentioned, the application templates depict the static part of the customer process that is
related to the data. They primarily define the object types to be transferred and whether or not they will be
overwritten.
5.4.1.1 General settings

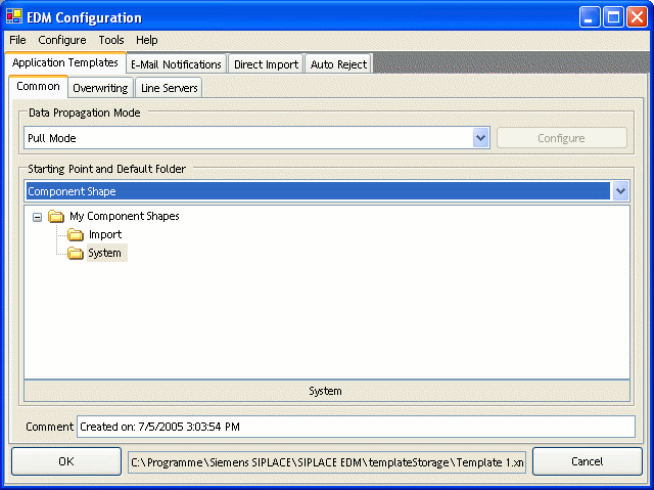

Figure 16 General settings for application templates
The general settings include:
• Type of data transfer. Currently, you can only select "Pull Mode" or "Forced Pull Mode".
• Starting Point specifies the object type for which this template can be valid. A template can only be valid
for one object type at a time, though. It is possible, of course, to define more than one template for an
object type.
• Objects found in the default folder and all its subfolders can be subsequently specified by the line
engineer for pushing from the master.
• An optional comment.
5.4.1.1.1 Pull mode
No additional settings can be specified for this type of data transfer between the Master Server and Line
Servers.
5.4.1.1.2 Forced pull mode
For this type of data transfer, the time after which the data preparation engineer will be notified that no new
data has been pulled for the line must be specified via "Configure". The time is specified in hours.
Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 Issue 02/2009
56

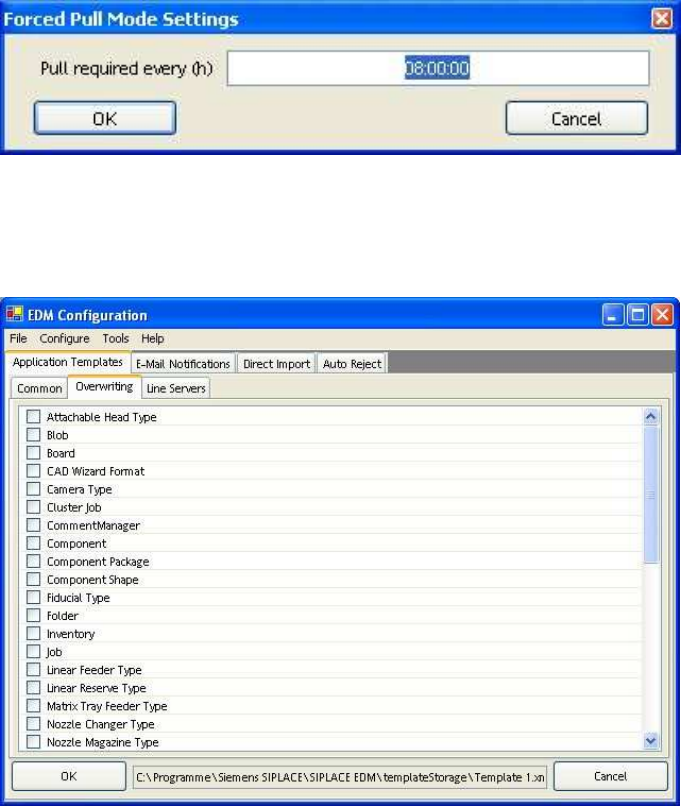

Figure 17 Forced pull mode configuration
5.4.1.2 Overwriting
Figure 18 Settings for overwriting object types
You can select the object types to be overwritten when the data is imported to the line here.
Installation Manual SIPLACE Engineering Data Manager (EDM) Version 1.9 02/2011 Edition
57 / 65
5.4.1.3 Line server

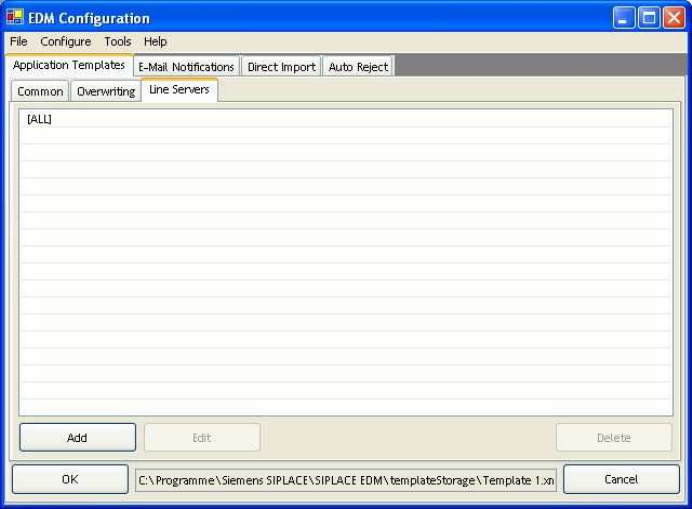

Figure 19 Line servers
Here you specify the list of Line Servers for which the application template is to apply. The names in this
list must also be located in the endPointConfig (see 5.2.3.13) of the application settings.
5.4.2 Email configuration
EDM email notification uses SMTP to distribute notifications arriving at the Master Server. The following
must be configured:
• The network address of the SMTP server
• The sender to be entered in the message
• A set of distribution lists
Email distribution lists make it possible to keep email traffic to a minimum and to send the emails to
precisely the person(s) responsible. A distribution list only responds to notifications from a specific line
which contain changes to specific object types.
