11 N0.5-3 JST 12 21 22 11 N0.5-3 JST 12 21 22 A4 B4 A3 AMP S201R 1-1318119-4 B3 A2 B2 A1 B1 A4 B4 A3 AMP S202R 1-1318119-4 B3 A2 B2 A1 B1 CNEMGF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 IN017 24GND IN010 CHECK1 CHECK2 CNEMGR CHE…
-A02
Power Unit
L21bX1
L31bX1
FGTRAY.PR
FG1TRAY.PR
FAN3
1
2
3
IN220
G24
P24
Roof Cooling FAN
N610117727** : Wole Cover(H):NPM-W
R5.5-4
JST
Ｍ
－
n
-G103
9GL1224J1J01
RD
YE
BK
SANYO DENKI
-K322
PNF0B3
I/O Board #1
For
Tray Unit
Ｍ
－
n
-G104
9GL1224J1J01
RD
YE
BK
SANYO DENKI
FAN4
1
2
3
IN221
G24
P24
Roof Cooling FAN
N610169544AB
N610169557AB
MOLEX
TRAY.PR
51300-0414
B2
B1
A2
A1
BK2
BK1
GN/YE
UE/2501E-SBX(N)[Y/G]BK LF 3×16AWG
AMP
FAN3K322
177899-1
3
2
1
AMP
FAN4K322
177899-1
3
2
1
AMP
G104P
177907-1
3
2
1
AMP
G104R
177899-1
3
2
1
AMP
G103P
177907-1
3
2
1
AMP
G103R
177899-1
3
2
1
N610169434**
EbX1
1
1
Panasonic Factory Solutions Co.,Ltd. パナソニック ファクトリーソリューションズ株式会社
Name
Drawing No.
Loc. No.
F4K1020-05A
1
2 3 4 5 6 7 8
A
B
C
D
E
F
1 2 3 4 5 6 7 8
A
B
C
D
E
F
Page. No.

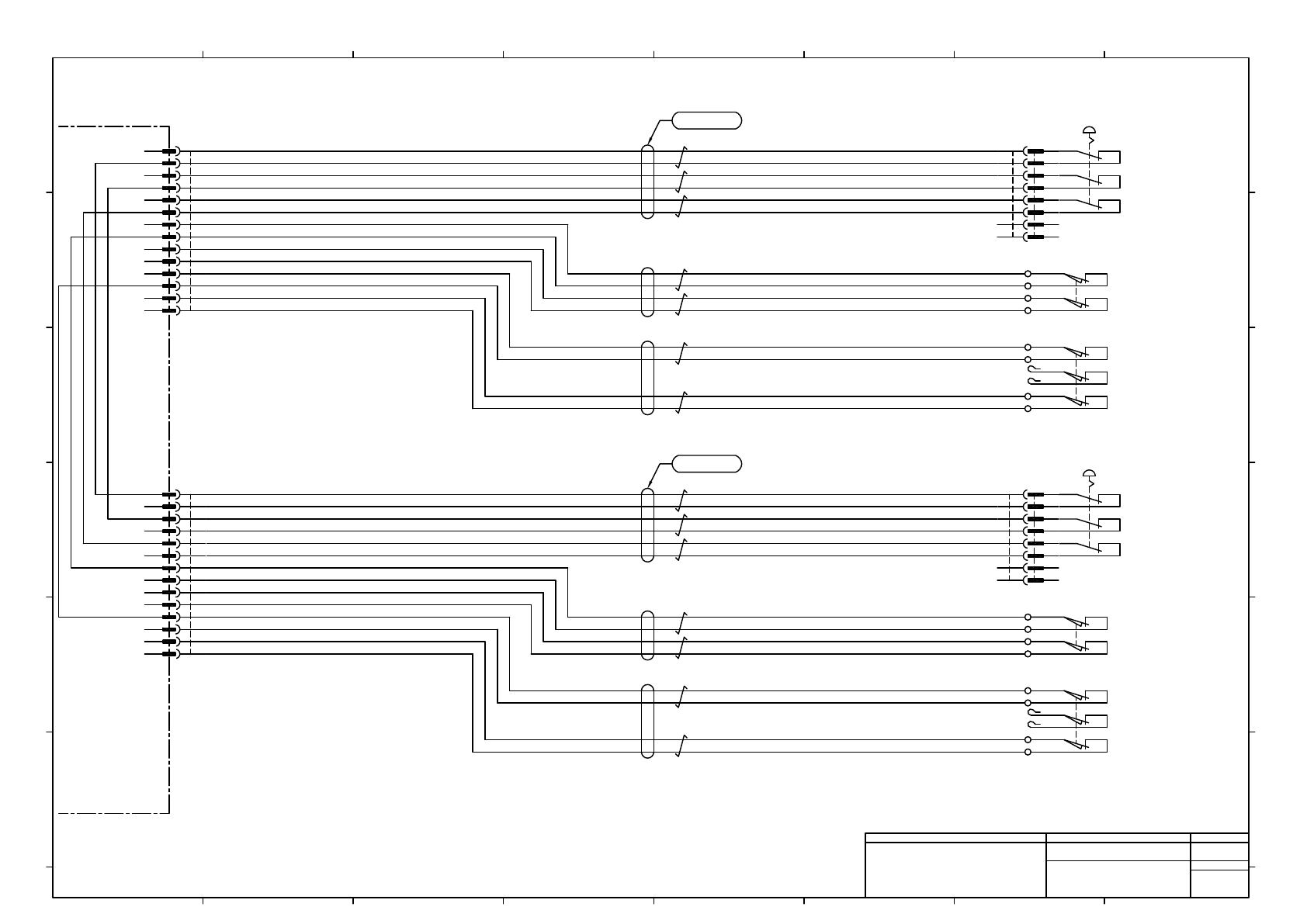

NPM-W2:Main Body Wiring
(Roof Cooling FAN Wiring)
N610169329+010AC
P010
2464-1061/ⅡA(PF) LF 2P×22AWG
RD
RD/WH
BK
BK/WH
2464-1061/ⅡA(PF) LF 2P×22AWG
RD
RD/WH
BK
BK/WH
2
2
2
2
11
N0.5-3
JST
12
21
22
11
N0.5-3
JST
12
21
22
A4
B4
A3
AMP
S201R
1-1318119-4
B3
A2
B2
A1
B1
A4
B4
A3
AMP
S202R
1-1318119-4
B3
A2
B2
A1
B1
CNEMGF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
IN017
24GND
IN010
CHECK1
CHECK2
CNEMGR
CHECK3
CHECK4
IN014
24GND
24GND
CHECK1
CHECK2
CHECK3
IN011
24GND
IN015
24GND
CHECK4
14
13
12
11
10
9
8
7
6
5
4
MOLEX
CNEMGF
5557-14R-210
3
2
1
14
13
12
11
10
9
8
7
6
5
4
MOLEX
CNEMGR
5557-14R-210
3
2
1
Front EMG Switch
-S201
XW1E-BV403VR-BC-TK2377
11 12
21 22
31 32
IDEC
AMP
S201P
1376009-1
B1
A1
B2
A2
B3
A3
B4
A4
Note1)
Note1)
Rear EMG Switch
-S202
XW1E-BV403VR-BC-TK2377
11 12
21 22
31 32
IDEC
AMP
S202P
1376009-1
B1
A1
B2
A2
B3
A3
B4
A4
Safety Cover Switch 1(F)
-S301
11 12
21 22
IDEC
HS5D-02RNP
Safety Cover Switch 2(R)
-S302
11 12
21 22
IDEC
HS5D-02RNP
32
31
12
11
N0.5-3.7
JST
32 31
22 21
12 11
-S303
Safety Cover Switch 3
(F Hinge Type)
D4NH-1DBC
OMRON
32
31
12
11
N0.5-3.7
JST
32 31
22 21
12 11
-S304
Safety Cover Switch 4
(R Hinge Type)
D4NH-1DBC
OMRON
Note1) Connector Pin arrangement is not sequential.
-A02
Power Unit
N610169414AC
N610169415AC
2464-1061/ⅡA(PF) LF 3P×20AWG
GN
GN/WH
RD
RD/WH
BK
BK/WH
BK/WH
BK
RD/WH
RD
2464-1061/ⅡA(PF) LF 2P×22AWG
RD
RD/WH
BK
BK/WH
2464-1061/ⅡA(PF) LF 2P×22AWG
2464-1061/ⅡA(PF) LF 3P×20AWG
2464-1061/ⅡA(PF) LF 2P×22AWG
2464-1061/ⅡA(PF) LF 2P×22AWG
GN
GN/WH
RD
RD/WH
BK
BK/WH
BK/WH
BK
RD/WH
RD
RD
RD/WH
BK
BK/WH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
S301
S303
S302
S304
1
1
1
1
2
2
Panasonic Factory Solutions Co.,Ltd. パナソニック ファクトリーソリューションズ株式会社
Name
Drawing No.
Loc. No.
F4K1020-05A
1
2 3 4 5 6 7 8
A
B
C
D
E
F
1 2 3 4 5 6 7 8
A
B
C
D
E
F
Page. No.

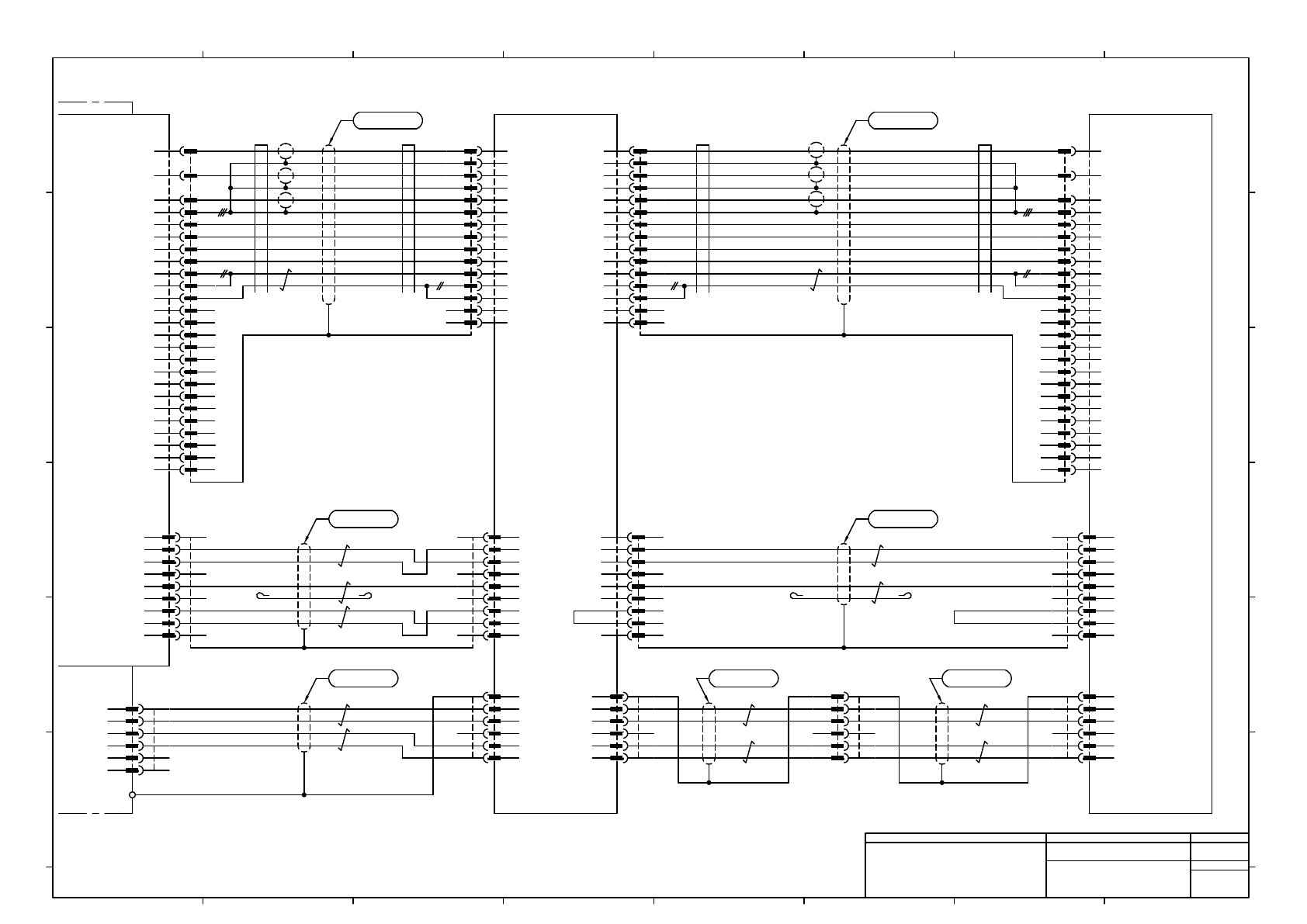

NPM-W2:Main Body Wiring
(Safety SW)
N610169329+011AC
P011
-A01
CPU Box
-K301
1
2
3
4
5
9
10
11
12
13
19
22
23
24
CRT
C1
C2
C3
C5
C4
7
8
6
14
16
15
ANLOG_RED
ANLOG_GREEN
ANLOG_BLUE
ANLOG_GND
ANLOG_HORZ_SYNC
DDC DATA_A
ANLOG_VERT_SYNC
DDC CLOCK_A
POWER +5V
HOT_PLUG_DETECT
GND(+5V)
1
6
2
CN1K328
7
3
8
13
12
14
15
9
5
10
4
11
24
23
22
19
13
12
11
10
9
5
4
3
2
1
15
16
14
6
8
7
C4
C5
CRTK301
C3
C2
C1
DVI A DB15 CABLE L=0.9M TAK
RD
PE
GY
WH
BU
GN
RD
OG
YE
1
2
3
4
5
6
7
8
9
COM1_DCD
COM1_RXD
COM1_TXD
COM1_DTR
GND
COM1_DSR
COM1_RTS
COM1_CTS
COM1_RI
COM1
3
1
6
4
2
5
+12V
GND
+12V
GND
N.C
N.C
CN1
FGA01
Touch Panel (Front)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
CD
TD
RD
DSR
GND
DTR
CTS
RTS
N.C
FG
12V
GND
FG
12V
GND
CN2(RS-232C)
CN3(POWER)
CN1(DVI)
TMDS_DATA 2-
TMDS_DATA 2+
TMDS_DATA 2 /4 SHIELD
TMDS_DATA_4-
TMDS_DATA 4+
TMDS_DATA 1-
TMDS_DATA 1+
TMDS_DATA 1/3 SHIELD
TMDS_DATA 3-
TMDS_DATA 3+
TMDS_DATA 0/5 SHIELD
TMDS_CLOCK SHIELD
TMDS_CLOCK+
TMDS_CLOCK-
ANLOG_RED
ANLOG_GREEN
ANLOG_BLUE
ANLOG_GND
ANLOG_HORZ_SYNC
DDC DATA_A
ANLOG_VERT_SYNC
DDC CLOCK_A
POWER +5V
HOT_PLUG_DETECT
GND(+5V)
1
2
3
4
5
9
10
11
12
13
19
22
23
24
C1
C2
C3
C5
C4
7
8
6
14
16
15
-A03
R08RP2
Topre
11
4
10
5
9
15
14
12
13
8
3
7
CN2K328(R)
2
6
1
24
23
22
19
13
12
11
10
9
5
4
3
2
1
15
16
14
6
8
7
C4
CN1A03
C2
C1
C5
C3
DVI A VGA CABLE L=3.1M TAK
RD
PE
GY
WH
BU
GN
RD
OG
YE
-K328
PNF0A5
CN5 CN4
CN1
ANLOG_RED
GND
ANLOG_GREEN
GND
ANLOG_BLUE
GND
ANLOG_HORZ_SYNC
DDC DATA_A
ANLOG_VERT_SYNC
DDC CLOCK_A
POWER +5V
GND
GND
Panel Control Board
1
6
2
7
3
8
13
12
14
15
9
5
10
4
11
CN2
1
2
3
4
5
6
7
8
9
N.C
RXD
TXD
N.C
GND
N.C
RTS
CTS
N.C
1
2
3
4
5
6
7
8
9
N.C
RXD
TXD
N.C
GND
N.C
N.C
1
2
3
4
5
6
FG
12V
GND
FG
12V
GND
CN7
1
2
3
4
5
6
FG
12V
GND
FG
12V
GND
CN8
1
6
2
7
3
8
13
12
14
15
9
5
10
4
11
XM2S-0913
OMRON
JAE
COM1K301
DEU-9SF-F0
9
8
7
6
5
4
3
2
1
MOLEX
CN1A01
5557-06R-210
5
2
4
6
1
3
JAE
CN4K328
DEU-9SF-F0
9
8
7
6
5
4
3
2
1
MOLEX
CN7K328
5557-06R-210
6
5
4
3
2
1
MOLEX
CN8K328
5557-06R-210
6
5
4
3
2
1
JAE
CN5K328
DEU-9PF-F0
9
8
7
6
5
4
3
2
1
GN/WH
GN
BK/WH
BK
RD/WH
RD
2464-1061/ⅡA-SBX(PF) LF 3P×24AWG
2464-1061/ⅡA-SBX(PF) LF 2P×20AWG
BK/WH
BK
RD/WH
RD
BK/WH
BK
RD/WH
RD
2464-1061/ⅡA-SBX(PF) LF 2P×24AWG
BK/WH
BK
RD/WH
RD
2464-1061/ⅡA-SBX(PF) LF 2P×22AWG
BK/WH
BK
RD/WH
RD
2464-1061/ⅡA-SBX(PF) LF 2P×22AWG
N510065908AA N510065904AA
N610169553AA
N610169416AB
N610169546AA
N610169548AA
MOLEX
DC12F-P
5559-06P-210
6
5
4
3
2
1
MOLEX
DC12F-R
5557-06R-210
6
5
4
3
2
1
UL1007 24AWG BU BU
N610112956AA
Note1) Connector Pin arrangement is not sequential.
Note1)
MOLEX
CN3A03
5557-06R-210
6
5
4
3
2
1
JAE
CN2A03
DEU-9SF-F0
9
8
7
6
5
4
3
2
1
R2-4
JST
NBC-JC155X
CPU Board
Panasonic Factory Solutions Co.,Ltd. パナソニック ファクトリーソリューションズ株式会社
Name
Drawing No.
Loc. No.
F4K1020-05A
1 2 3 4 5 6 7 8
A
B
C
D
E
F
1 2 3 4 5 6 7 8
A
B
C
D
E
F
Page. No.

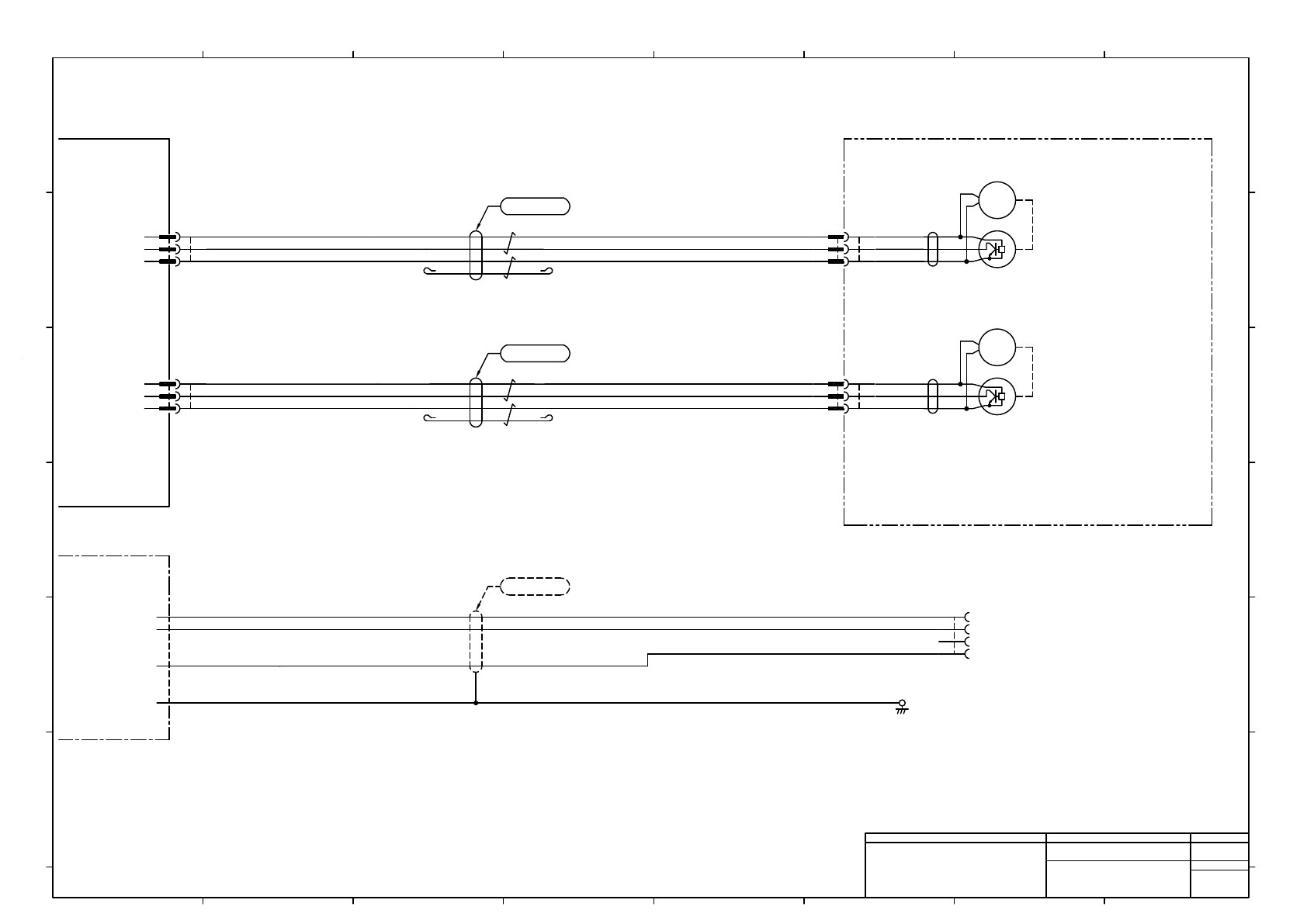

NPM-W2:Main Body Wiring
(Touch Panel Wiring 1)
N610169329+012AB
P012
