IR AUTO BGA Rework Station TR3000-IRV
Kukjetrading Co., Ltd.
32
7. Safety Device
If the system provides various safety devices. When a safety function activates, it gets alarmed, and alarming
is displayed on the Run story and power supplied to a heater shuts down. Press a RST button to release
alarming and then, restore back to original conditions. If it does not restore even when a RST switch is touched,
turn off a power switch and then turn it on after a few minutes.

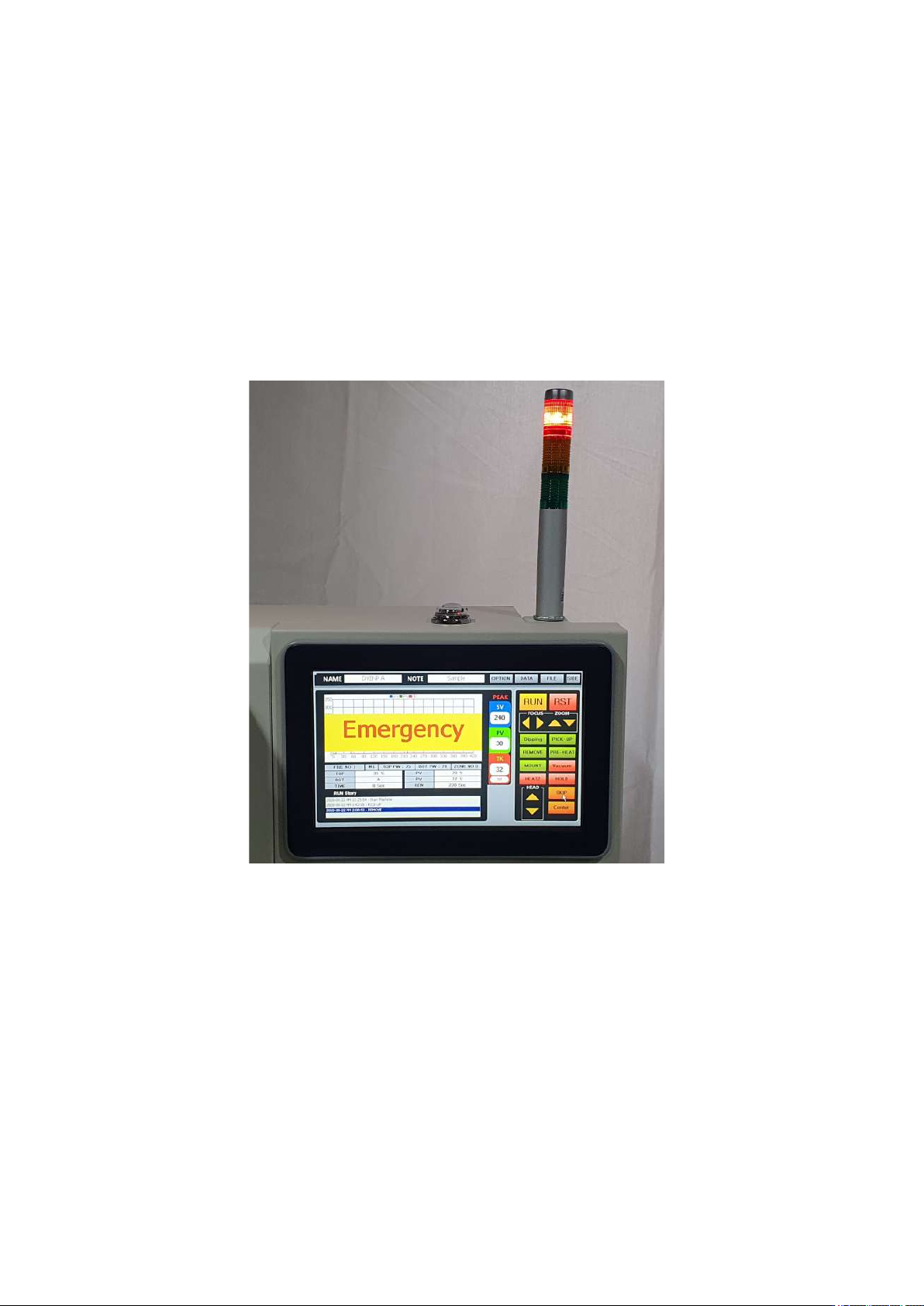

① Emergency Stop
An emergency stop switch is installed in the middle of the front left of the equipment. If this button is
pressed during operation, an emergency warning window blinks on the screen, the power of the heater is cut
off, and the cooling fan is started immediately. When Emergency is released, the equipment returns to the
origin.
② Pickup-Error
In a case that vacuum operates to try to pick up parts but failed or parts are being dropped while the parts
are being picked up, it gets alarmed and power supplied to a heater shuts off.
③ SENSOR FAIL
If a temperature cannot be read due to malfunction of a non-contact infrared sensor, it gets alarmed and
power supplied to a heater shuts off.
④ HEATER - OVER Fail
It gets activated when a temperature exceeds the maximum temperature which has been set by a non-
contact infrared sensor or the measured temperature is more than 290℃ or PCB bottom temperature (TK
temperature) is 260℃. In occurrence of the aforementioned event, power supplied to a heater shuts off.
⑤ HEATER – Running FAIL
While an infrared sensor or M4 mode is on, it gets alarmed and power supplied to a heater shuts off when
a value read by a K sensor drops 10 Celsius degrees than 1 second ago.
IR AUTO BGA Rework Station TR3000-IRV
Kukjetrading Co., Ltd.
33
⑥ HEATER – Low Power FAIL
While an infrared sensor or M4 mode is on, it gets alarmed and power supplied to a heater shuts off when
a value read by a K sensor is less than 20 Celsius degrees than the temperature which has been set or the
measured temperature of the top heater at M1 does not reach the target temperature even after 7 seconds.
⑦ HEATER - Start FAIL
It gets alarmed and power supplied to a heater shuts off when the measured temperature of the top heater
does not rise more than 80 Celsius degrees.
⑧ MOTOR FAIL
It gets alarmed and power supplied to a heater shuts off when there is an error on the motor paths related
with moving of a head up and down and of a vision right and left.
IR AUTO BGA Rework Station TR3000-IRV
Kukjetrading Co., Ltd.
34
<Appendix 1> List of Service Supplies
※Service supplies are subject to change wihtout notice..
① Tool Box / HappyMade/DS-14/Size:355(L)x190(W)x130(H)mm/1EA
② VISION CALIBRATION JIG with Metal Mask/1EA
③ Vacuum Bit 3 types/L/M/S/1EA for each
④ Solder Cream Dipping Jig 1SET/ (Squeezee 1EA, 0.1-0.15T 1EA, 0.2-0.25T 1EA)
⑤ Capton Tape 15mm x 30m 1EA
⑥ K Type Sensor 80cm 3EA
⑦ Hex Wrench set/ TWH-01/1SET
⑧ Precision tweezers/MJTECH/SS-Sa/EP 1EA
⑨ “-“Driver/Vessel 9900 2.5-75/ 1EA
⑩ “+”Driver/Vessel 9900 p.00-75/ 1EA
⑪ “+”Driver/Vessel 610 P.1-75/ 1EA
⑫ “+”Driver/Vessel 6300 P.2-100/ 1EA
