BI2000 Board Inverter Manual
Revision F / January 2022
Page 16 of 37
Auto Cycle
270BAuto Cycle is the normal operating mode for the PVA board inverter. In Auto Cycle, the
machine operates as part of a production line and interfaces with any adjacent machines.
1.
106BSelect Auto Cycle from Cycle Stop.
2.
107BPush the “ESC” button to leave Auto Cycle and return to Cycle Stop.

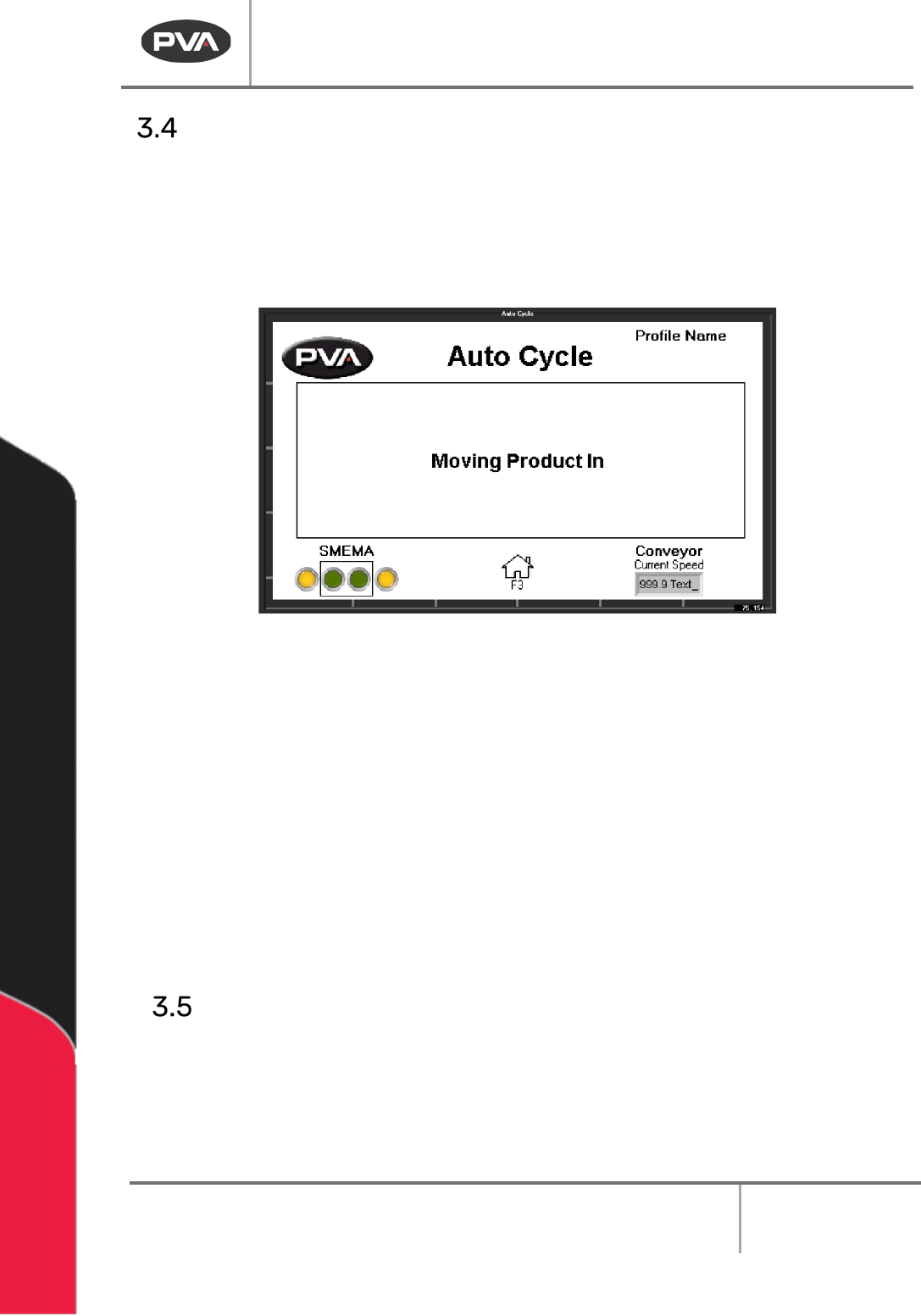

48BFigure 9: Auto Cycle
Note: The board inverter will wait for the boards to exit if there are boards in the
inverter when the “ESC” button is pushed.
3.
108BTo change the settings shown in Auto Cycle, go to Setup Mode.
4.
109BThe Profile is shown above the screen name. Go to Setup mode to change the
profile.
5.
110BThe current conveyor speed is shown.
6.
111BThe text field shows information about board handling and processing.
7.
112BThe SMEMA indicators show the signals being sent and received. Output from the
system are in the box, external signals are outside of the box.
Manual Mode
272BIn Manual mode, the operator has control of the conveyor, flipper, and SMEMA signals.
1.
113BSelect Manual mode from Cycle Stop.
2.
114BUse the “Left”, and “Right” arrow buttons to scroll through the screens.
BI2000 Board Inverter Manual
Revision F / January 2022
Page 17 of 37
Conveyor Operation

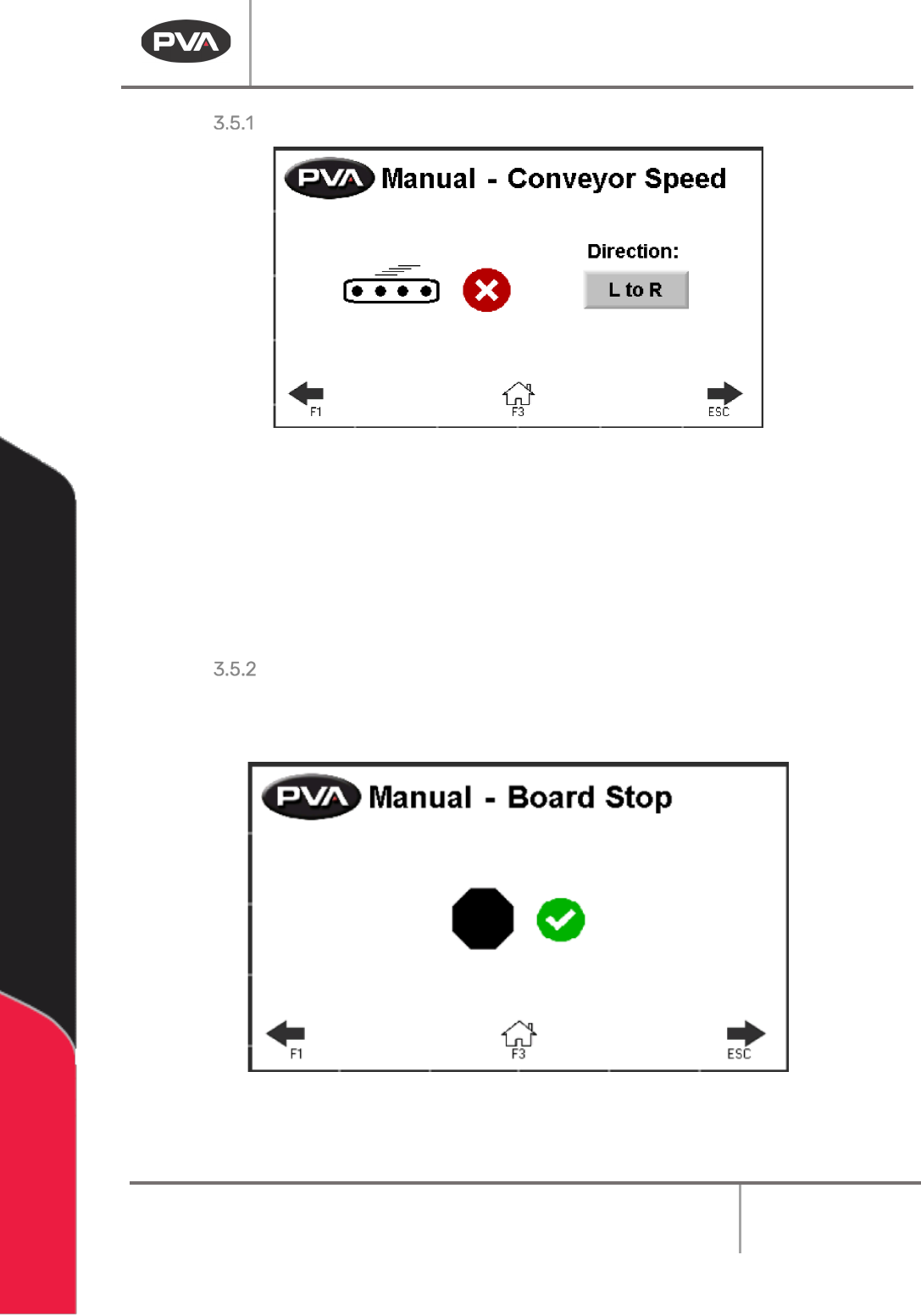

49BFigure 10: Manual Mode, Conveyor Speed
1. 115BUse the Red X or the Green Checkmark button to toggle the conveyor “On” or
“Off”.
2.
116BSelect the Direction: button to toggle between L to R (left to right) or R to L
(Right to Left). The default direction is downstream.
Board Stops
• 117BTo manually extend or retract the board stops, select the Red X or the Green
Checkmark button.
50BFigure 11: Manual Mode, Board Stop
BI2000 Board Inverter Manual
Revision F / January 2022
Page 18 of 37
Rotate
51BFigure 12: Manual Mode, Rotate
• 118BTo manually rotate the cage, push the “Square Arrow Button” on-screen. The arrow
direction shows the current position.
o
119BWhen the arrow is Up the cage is in the home position (0 degrees)
o
120BWhen the arrow is Down the cage is in the flip position (180 degrees)
SMEMA
276BYou can view the status of the SMEMA input from the machine selected. To toggle the
SMEMA output on and off, push the related light on the screen.
277B
52BFigure 13: Manual Mode, SMEMA
