BI2000 Board Inverter Manual
Revision F / January 2022
Page 18 of 37

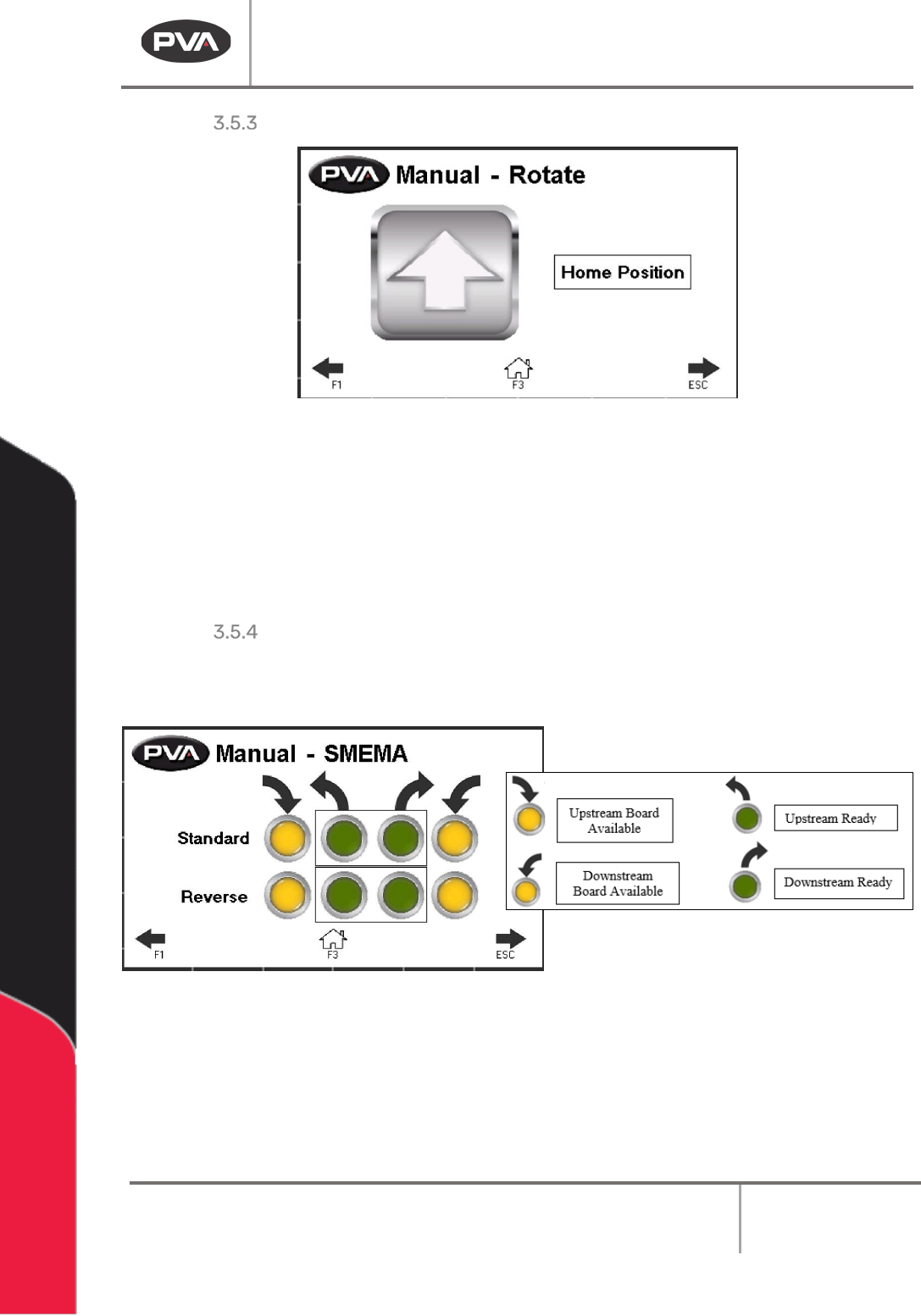

Rotate
51BFigure 12: Manual Mode, Rotate
• 118BTo manually rotate the cage, push the “Square Arrow Button” on-screen. The arrow
direction shows the current position.
o
119BWhen the arrow is Up the cage is in the home position (0 degrees)
o
120BWhen the arrow is Down the cage is in the flip position (180 degrees)
SMEMA
276BYou can view the status of the SMEMA input from the machine selected. To toggle the
SMEMA output on and off, push the related light on the screen.
277B
52BFigure 13: Manual Mode, SMEMA
BI2000 Board Inverter Manual
Revision F / January 2022
Page 19 of 37

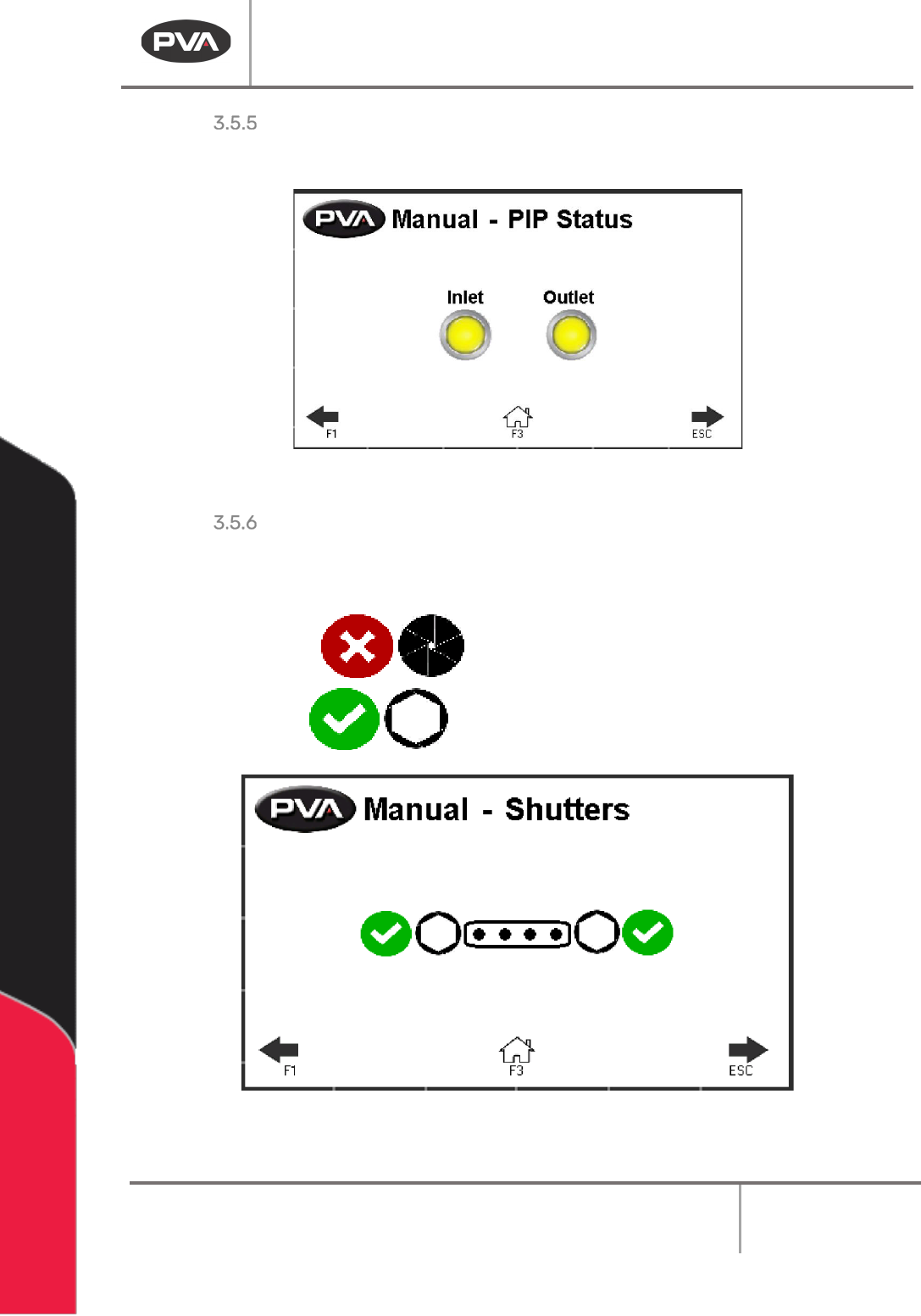

PIP Status
278BView the status of the part in place (PIP) input from the machine.
53BFigure 14: Manual Mode, PIP Status
Shutters
280BThis screen only applies to systems with shutters. To manually open or close the shutters
select the Green Checkmark or Red X.
54BFigure 15: Shutters
BI2000 Board Inverter Manual
Revision F / January 2022
Page 20 of 37

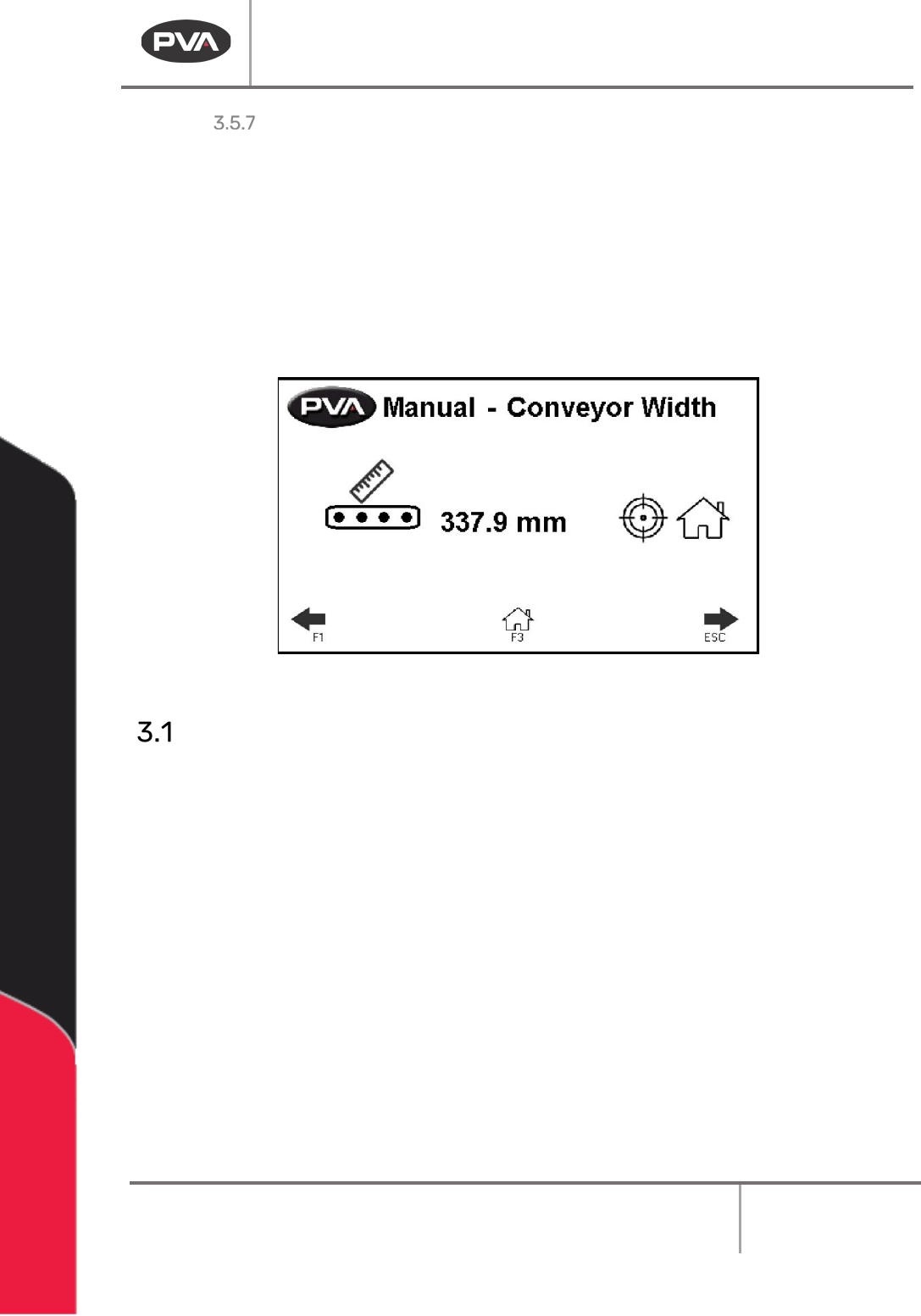

Conveyor Width Adjust
282BThis screen only applies to systems with automatic width adjust.
•
123BTo manually adjust the conveyor width, go to the Conveyor Width screen.
•
124BSelect the width value and use the keypad shown to enter a new width.
•
125BSelect the Target symbol to move the conveyor to the set width.
•
126BSelect the Home icon to home the conveyor.
55BFigure 16: Conveyor Width
Setup Mode
284BIn setup mode, the operator can set the options for the PVA board inverter. The profile
name is shown at the top of the screen. You will make changes to the profile shown.
1.
127BSelect the Setup icon or the “ESC” button from Cycle Stop.
2.
128BUse the Use the + - Page icons or the F2 and F4 keys to scroll through the profiles.
The profile name is shown at the top of the screen. You can have a maximum of 30
profiles.
3.
129BUse the “Left”, and “Right” arrow buttons to scroll through the screens or the “F1”
and “ESC” hardware keys.
4.
130BPush the “Home” button or the F3 key to return to Cycle Stop. When you leave
Setup mode, all changes will be saved.
285BThe profile that will run in Auto Cycle is the one shown on the screen.
