BI2000 Board Inverter Manual
Revision F / January 2022
Page 21 of 37
Flip Process
286BThe screen below shows all available flip options, the arrows will change based on the
board in and out directions selected.

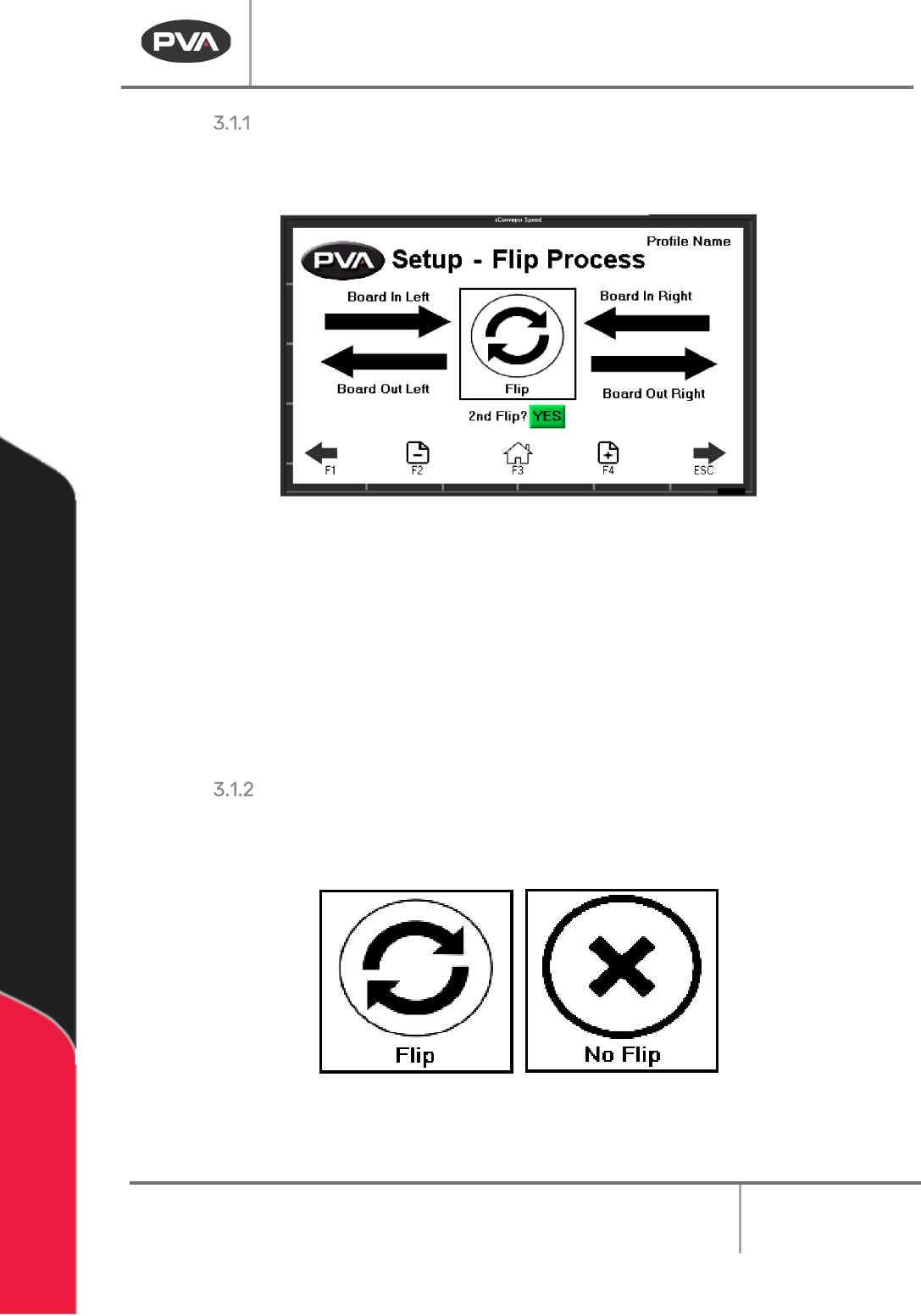

56BFigure 17: Flip Roll Cage
1. 131BSelect the “Board In” arrow (top) to switch between “Board In Left” and “Board In
Right”. Only the selected “Board In” arrow will be shown, so when the “Board In
Left” arrow is shown, the “Board In Right” arrow will be hidden.
2.
132BSelect the “Board Out” arrow (bottom) to switch between “Board Out Left” and
“Board Out Right”. Only the selected “Board Out” arrow will be shown, so when the
“Board Out Left” arrow is shown, the “Board Out Right” arrow will be hidden.
Board Flip
288BSelect the square flip icon in the center of the screen to set the board flip option to “Flip” or
“No Flip”. This setting will be used in Auto Cycle for the profile shown.
57BFigure 18: Board Flip Icons
BI2000 Board Inverter Manual
Revision F / January 2022
Page 22 of 37
Board Second Flip
290BSelect the 2nd Flip icon to toggle between “Yes” and “No” for the second flip board process.
Conveyor Width
291BThis is an optional setting. Not all modules will have this option.
1.
133BUse the arrows on the screen or the “F1” and “ESC” button to scroll to the Setup-
Conveyor Width screen.
2.
134BSelect the indicator to toggle this feature on and off.

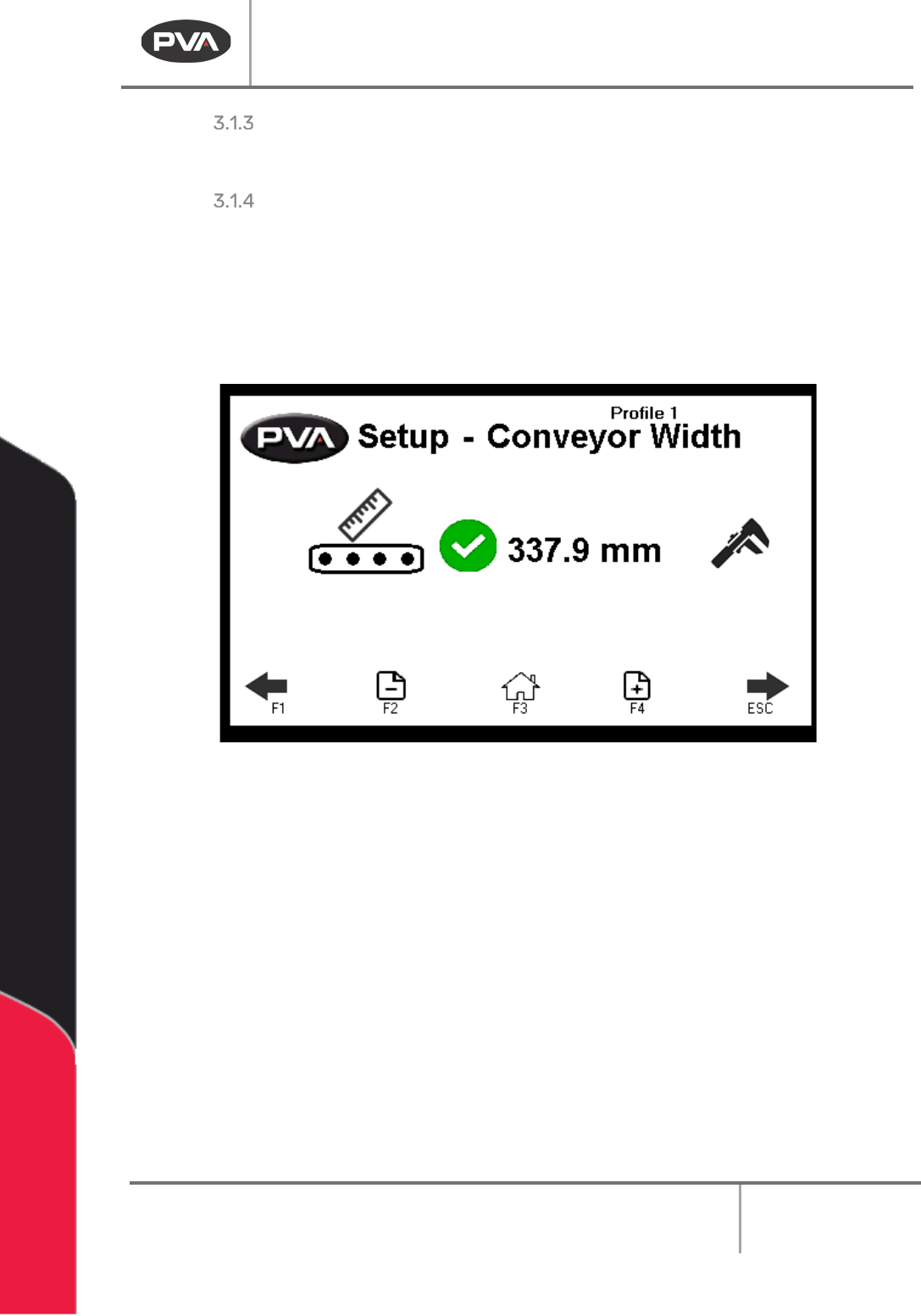

58BFigure 19: Conveyor Width
3. 135BPut the board on the conveyor.
4.
136BSelect Auto Width Adjust icon to auto adjust the conveyor.
5.
137BUse the Manual Width Adjust handle to make any necessary changes.
6.
138BSelect “Save” to keep and use the new value.
7.
139BUse the Use the + - Page icons or the F2 and F4 keys to scroll through the profiles.
The profile name is shown at the top of the screen.
BI2000 Board Inverter Manual
Revision F / January 2022
Page 23 of 37
Profile Naming
1. 140BUse the arrows on the screen or the “F1” and “ESC” button to scroll to the Setup-
Rename Profile screen.
2.
141BUse the + - Page icons or the F2 and F4 keys to scroll through the profile names.
You can have a maximum of 30 profiles.

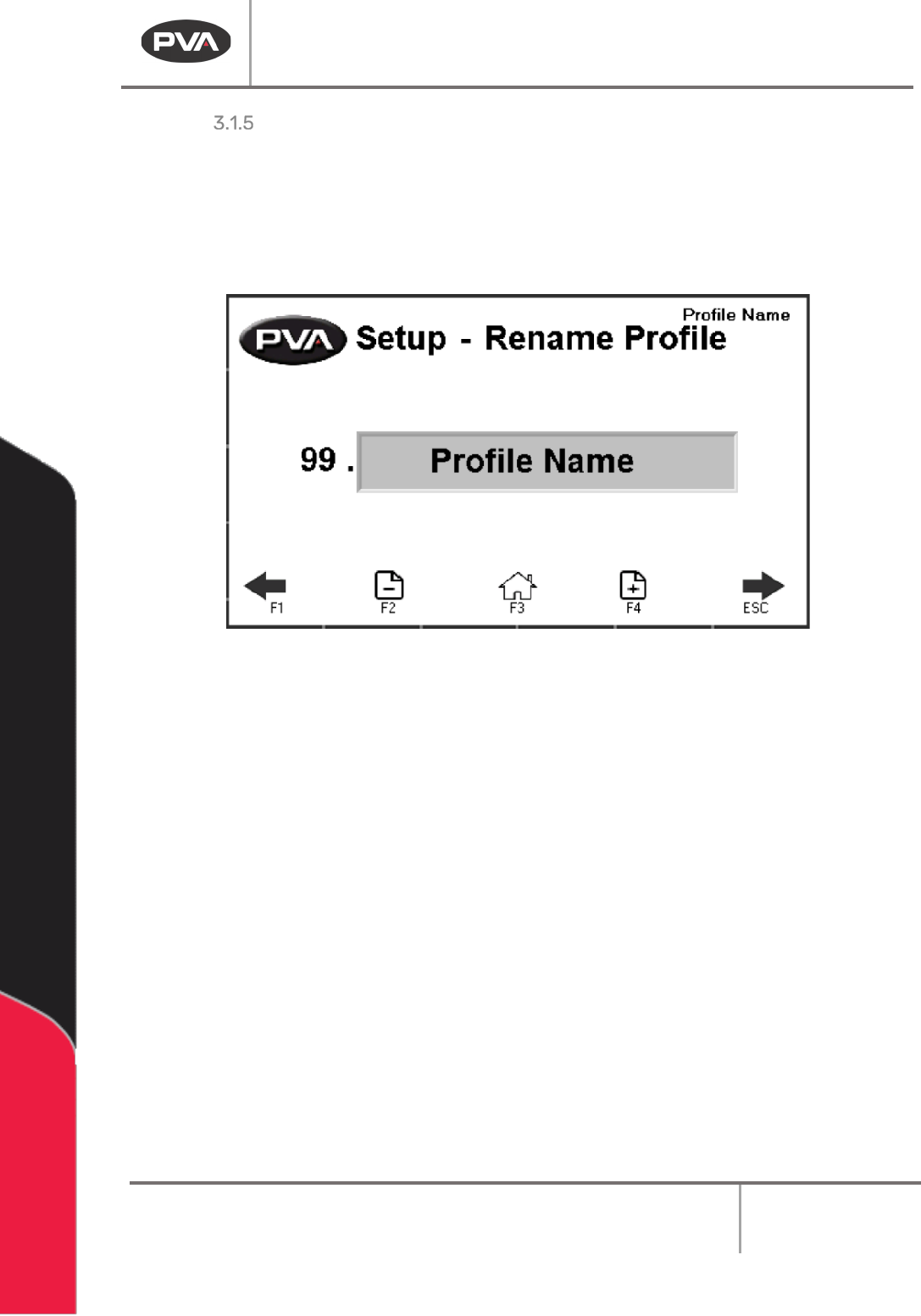

59BFigure 20: Rename Profile
3. 142BSelect the name you want to change.
4.
143BThe keyboard will be shown, type the new name and select enter. The new name will
be saved. Profile names are limited to 15 characters.
