Issue 6, Nov 14 65 Module M-BT Benchmark T est

64 Issue 6, Nov 14

Task 5:Using one or both of the methods above: test and, if necessary, adjust the

USC settings for best performance. Identify the parameters and their optimum

values below:

Parameter Value Comments

Task 6: If your machine has the Time to Go (TTG) functionality perform the tasks

below:

Using the procedures in the Technical Reference Manual:

1. Calibrate the Solvent Time To Go

2. Calibrate the Paper Time To Go

NOTES:

Issue 6, Nov 14

Module M-BT

Benchmark Test

66 Issue 6, Nov 14

Objective BT1: Interpret SPC output parameters

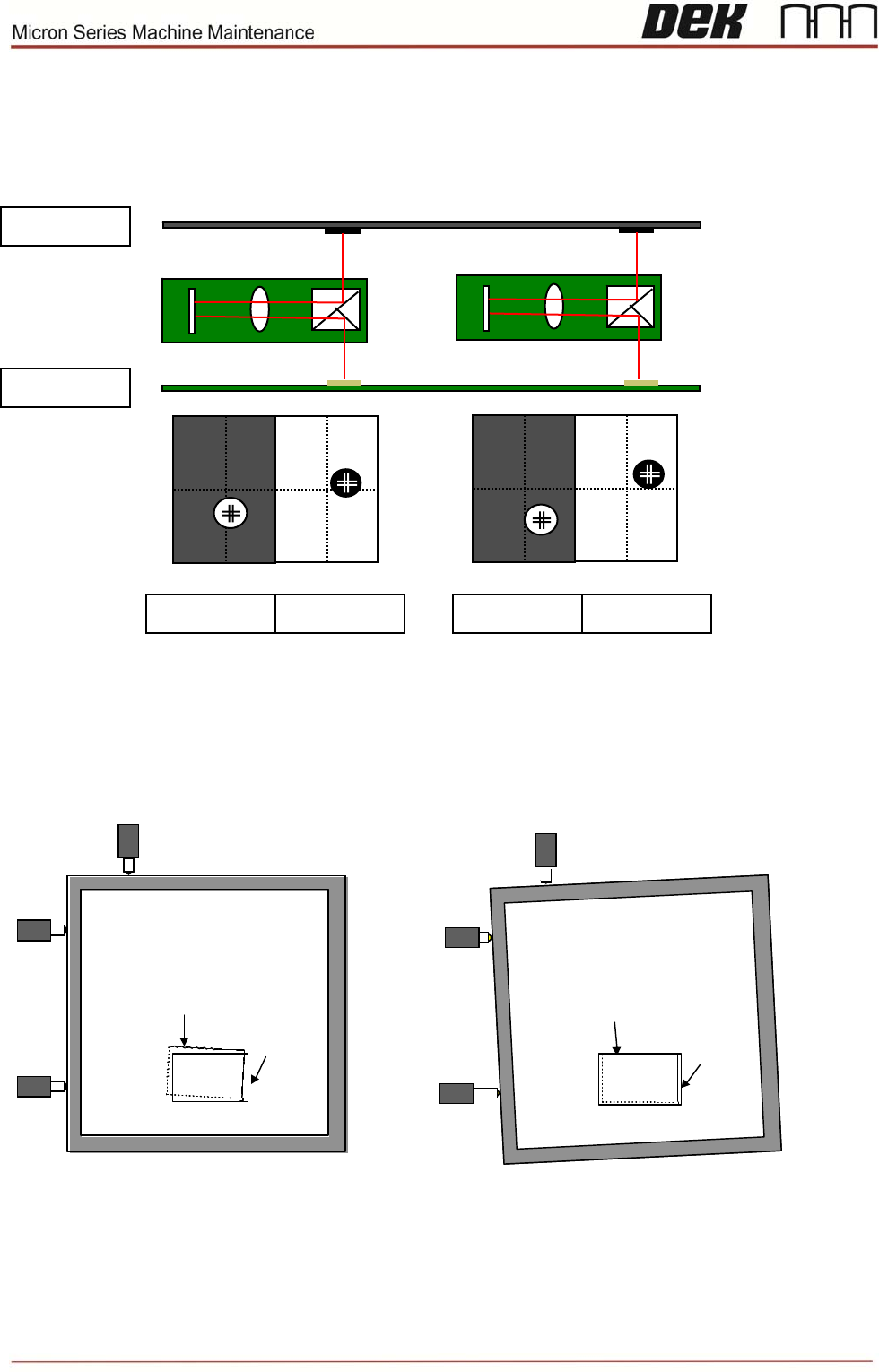

Introduction: screen alignment theory

The camera captures each of the fiducials (screen and board) and sends the data to the

processor. The processor uses this data as well as the calibration data to calculate the

amount of stencil movement required to align the stencil to the board. The processor then

tells the actuators how much to move for this alignment.

BOARD

BOARD BOARD

STENCIL

STENCIL STENCIL

Screen Image

Board

Screen Image

Board

Screen Image
