4 Placement Functions User Manual SIPLACE S-23 HM
4.3 Feeders Software Version SR.406.xx 02/00 US Edition
148
4.3.2 "Omit Components" View
With the help of the "Omit components" function in this view, you can omit specific components
from selected tracks when inserting components in the current PCB.
This is necessary, for example, when components have not been correctly inserted in the first PCB
of a new cluster. The components placed under "Omit components" are then ignored in all tracks
containing these components when inserting components into the current PCB. The incompletely
populated PCBs are then transported in the output conveyor and must be removed by hand.
After the PCB has been removed, the "Omit components" setting is reset for the components not
inserted, and they will then be used to populate the next PCB. 4
4
Å Click on the icon.
The "Omit components" view is displayed (see Fig. 4.3 - 3).
4
Fig. 4.3 - 3 "Omit components" view
NOTE
The "Omit components" function cannot be executed in the "Operator" access level. 4
User Manual SIPLACE S-23 HM 4 Placement Functions
Software Version SR.406.xx 02/00 US Edition 4.3 Feeders
149
4.3.2.1 Meaning of the Entries in the Tables of the "Omit Components" View
– Loc.
Number of the location
– Tr D T
Number of the track and of the feeder division
The entry for "T" is irrelevant for model SIPLACE S-23 HM machines.
(Only valid for automatic machines with wafflepack changers)
– CmpName
Name of the component
– GF no.
Number of the package form
4
4.3.2.2 Omit Component
Å Select the entry for the component that is to be omitted in the "Empty tracks" table. The line
selected is highlighted in light blue in the table.
The "Omit components" button is active.

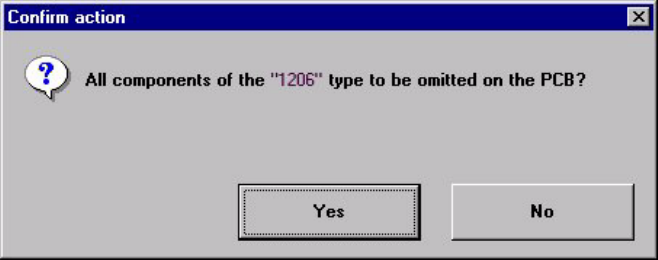

Å Click on the Omit components button. The following selection box is opened.
4
Å Confirm the query with Yes.
The entries for all tracks whose feeders contain the components that are not to be used to pop-
ulate the current PCB are displayed in the "Omitted components with alternate tracks:" table.
4
4 Placement Functions User Manual SIPLACE S-23 HM
4.3 Feeders Software Version SR.406.xx 02/00 US Edition
150
4.3.3 "Linear Feeder" View
When refilling the linear feeders with components, the operator must select the correct component
in the Setup view to refill an empty track (see Section 4.1.1). The track with the corresponding lin-
ear feeder must be vibrated so that the new components move to the front after the tray has been
inserted. 4
4
Å Click on the icon.
The "Linear feeder" view is displayed (see Fig. 4.3 - 4).
4
Fig. 4.3 - 4 "Linear feeder" view
