EDM V1.10 / Installation Manual 07/2011 Edition
4.2 Folder structure
In the following, the folder structure created by the default installation is illustrated.
Figure 4-1: Folder structure of the default installation
Folder Contents
SIPLACE EDM Applications and libraries
config Application configuration, client workflow configuration, filter
configuration, email configuration and logging configuration
Database Database for change notifications and Clearing Pool (Master
Server only )
DBScripts Scripts to create and access the database (Master Server only)
de, en, … Language-dependent resources
help Online documentation
logs Log files (for debugging among other things)
templateStorage Storage location for application templates
Table 4-4: Folders of the default installation
NOTICE
Under Windows Vista, Windows Server 2008 and more recent systems, the
templateStorage and logs folders are located under
%ProgramData%\SIPLACE\SIPLACE EDM.
15
EDM V1.10 / Installation Manual 07/2011 Edition
The installation of the components of the system is performed in the following the order:
1. Installation of the EDM Master Server.
2. The customer-specific application configuration is copied to the Master Server.
3. Installation of the EDM Line Servers.
4. The customer-specific application configuration is copied to the Line Servers.
5. Installation of the Clearing Pool host.
NOTICE
The configuration files created by the customer during the process analysis phase
– currently – need to be distributed manually to the Line Servers or to the Master Server
after completing the installation.
NOTICE
If you are migrating from an earlier version of EDM to EDM 1.10, please refer to section
4.4 Upgrading from a previous version for details of the installation procedure.
4.3 Setup
► Run the Setup.Exe program from the CD.
► In the dialog box that appears, click on the Next button.
► Accept the License Agreement.
Figure 4-2: License agreement
► Click the Next button.
16
EDM V1.10 / Installation Manual 07/2011 Edition
The following dialog box asks you to enter your contact information.
► Enter this information and click the Next button.

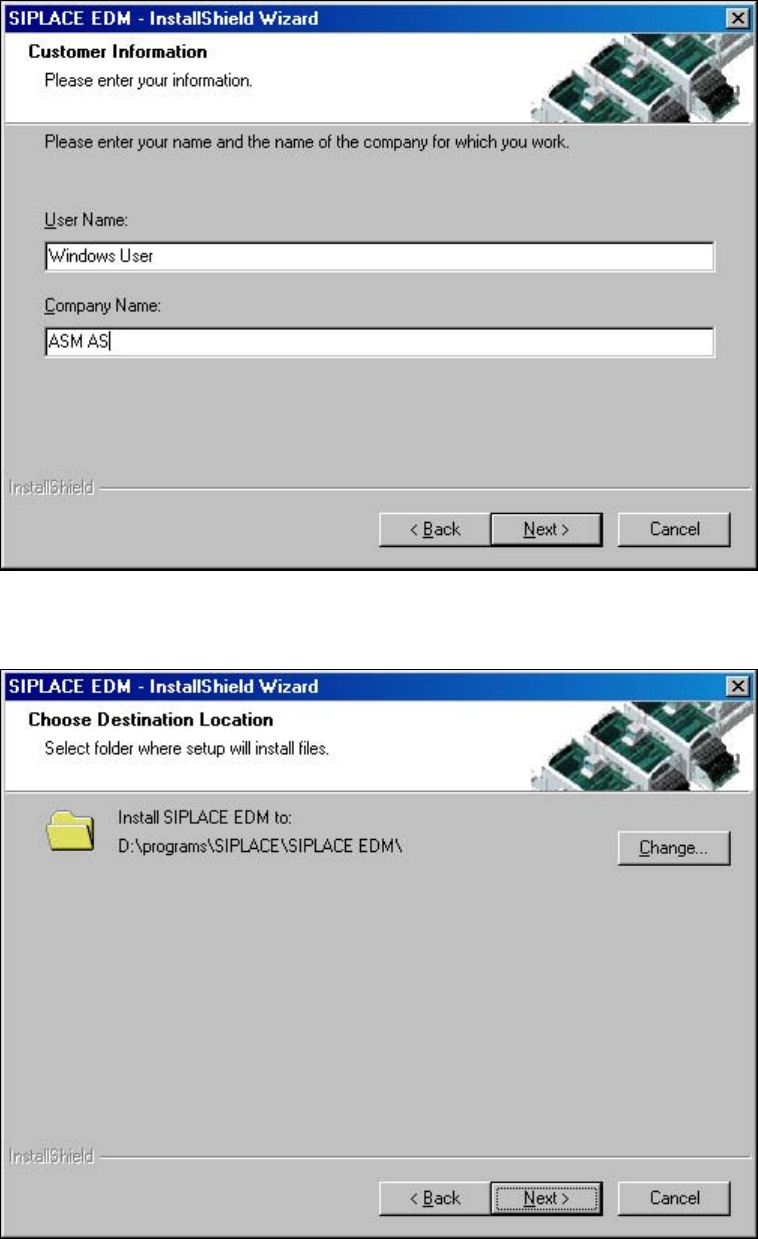

Figure 4-3: Contact information
► Select the target folder for the SIPLACE EDM installation.
Figure 4-4: Target folder for installation
17
