EDM V1.10 / Installation Manual 07/2011 Edition
The following dialog box asks you to enter your contact information.
► Enter this information and click the Next button.
Figure 4-3: Contact information
► Select the target folder for the SIPLACE EDM installation.
Figure 4-4: Target folder for installation
17
EDM V1.10 / Installation Manual 07/2011 Edition
Since SIPLACE EDM comprises several applications whose installation depends on the role of the
workstation, you must select the type of installation you want to perform.

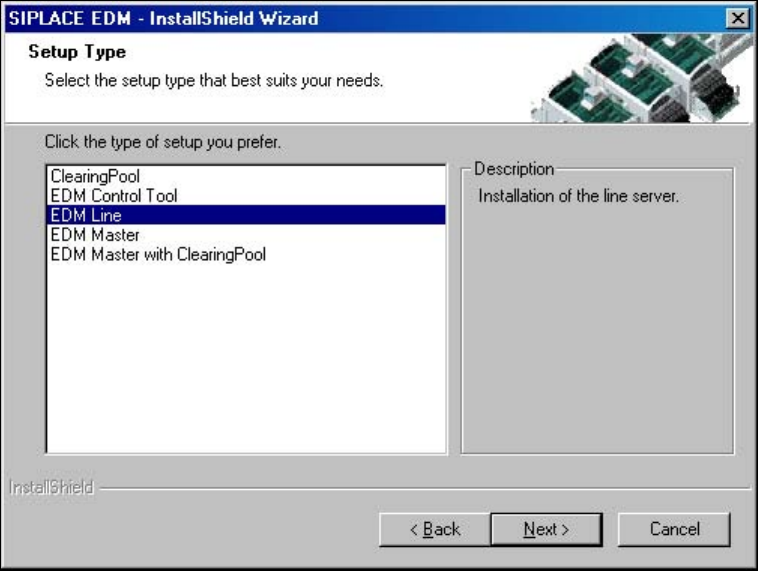

Figure 4-5:Type of EDM installation
The following setup types are available for selection:
● Clearing Pool
Installs the Clearing Pool GUI, the EDM Data Transfer Manager and the EDM Tool. Use this
option when you want to allow a data preparation engineer access to the Clearing Pool
database and push mode from his workstation.
● EDM Control Tool
Only installs the EDM Control Tool.
● EDM Line (Line Server)
Installs an EDM Line Server including the EDM Client. Use this option when you want to insert
a local SIPLACE Pro installation into a line in your EDM system.
● EDM Master (Master Server)
Installs an EDM Master Server, the Clearing Pool database and the EDM tool. Use this option
to install EDM on your central SIPLACE Pro server. There should only be one Master Server
per EDM system.
● EDM Master with Clearing Pool
Installs an EDM Master Server, a Clearing Pool database and a Clearing Pool GUI to access
the Clearing Pool database, the Data Transfer Manager and the EDM Tool.
18
EDM V1.10 / Installation Manual 07/2011 Edition
4.3.1 Clearing Pool
You only need to know which Clearing Pool database is to be accessed to install the Clearing Pool
GUI.
► Confirm the selection with the Next button.
The SIPLACE EDM installation checks if it can connect to the specified server and if a Clearing
Pool database is present there.
Figure 4-6: Selecting the Clearing Pool database
4.3.2 EDM Control Tool
If you connect to the Line Server and edit the SIPLACE Pro data from any client, the change dialog
box only appears on the remote client if you have also installed the EDM Control Tool on this
remote client.
► Select EDM Control Tool from the setup type dialog box.
The program is installed automatically.
