EDM V1.10 / Installation Manual 07/2011 Edition 5.4 EDM configuration 5.4.1 Application templates The application templates depict the sta tic part of t he customer process that is related to the data. They primarily def…
EDM V1.10 / Installation Manual 07/2011 Edition
5.4 EDM configuration
5.4.1 Application templates
The application templates depict the static part of the customer process that is related to the data.
They primarily define the object types to be transferred and whether or not they will be overwritten.
5.4.1.1 General settings

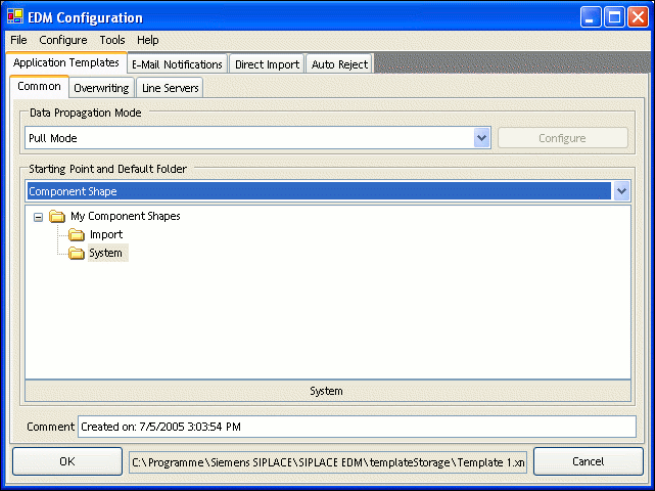

Figure 5-2: General settings for application templates
The general settings include:
● Type of data transfer. Currently, you can only select Pull Mode or Forced Pull Mode.
● Starting Point specifies the object type for which this template can be valid. A template can
only be valid for one object type at a time. However, it is possible to define more than one
template for an object type.
● Objects found in the Default folder and all its subfolders can be subsequently specified by the
line engineer for pushing from the master.
● An optional comment.
Pull mode
No additional settings can be specified for this type of data transfer between the Master Server and
Line Servers.
52
EDM V1.10 / Installation Manual 07/2011 Edition
Forced pull mode
For this type of data transfer, the time after which the data preparation engineer will be notified that
no new data has been pulled for the line must be specified via Configure. The time is specified in
hours.

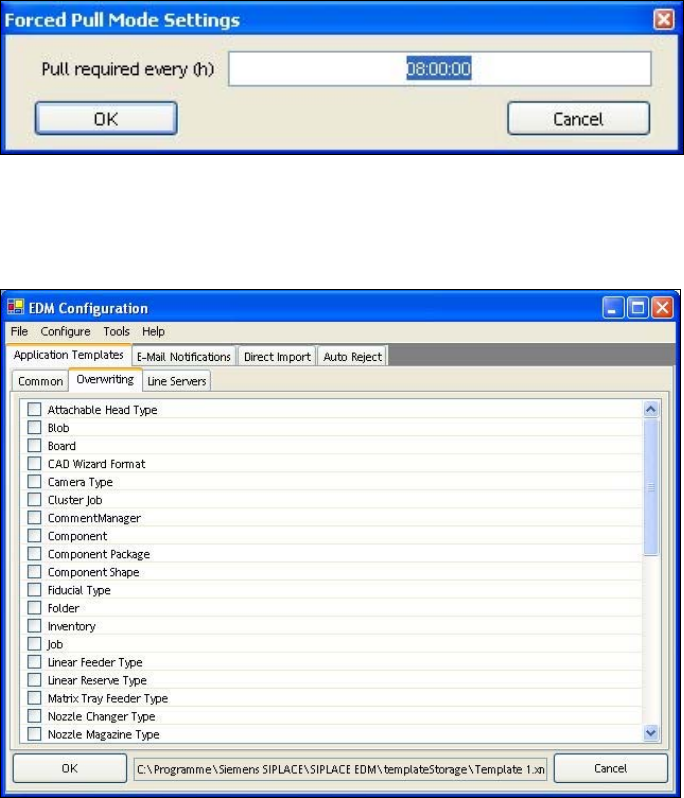

Figure 5-3: Forced pull mode configuration
5.4.1.2 Overwriting
Figure 5-4: Settings for overwriting object types
You can select the object types to be overwritten when the data is imported to the line here.
53
