5.5 Filter configuration

It is not always desirable to inform the data preparation engineer about a data change on a Line

Server, for example when a re-optimization is being performed on the line. In this case, a number

of internal SIPLACE Pro objects (for example HeadSteps, i.e. individual process steps for a head)

are changed, and these changes would then need to be commented accordingly by the user and

put in the Clearing Pool, but they do not contain any information. Furthermore, there are customer

processes that imply a selection of change notifications, for example when just the pure product

data (board, components, etc.) are centrally administered and the process-specific data are

recreated on each line. In such a scenario, only changes to the product data are of interest, and

changes to the jobs and recipes are not.

The NotificationFilterConfig.xml file found in the configuration folder is intended to take these

circumstances into account. In the file, you specify the object types and objects for which no

change notifications are to be sent to the Master Server. The file only affects a Line Server.

Change notifications can be filtered using a combination of:

● object type

● sub-object type

● individual properties of objects/sub-objects

● type of change to the object

● name of the changed object.

This restriction is implemented using regular expressions.

In the standard installation, a filter configuration is created that captures all irrelevant changes

made during optimization. Changes to NotificationFilterConfig.xml should only be made on the

basis of these default settings.

CAUTION

This part of the system is highly sensitive. In extreme cases, incorrect settings can lead

to the loss of important changes or, on the other hand, the data preparation engineer can

be "bombarded" by notifications regarding irrelevant changes.

EDM V1.10 / Installation Manual 07/2011 Edition

Figure 5-9: Configuration of the notification filter

The filter configuration comprises a set of ORed rules (see Figure 5-9). This means that as soon as

at least one of the defined conditions applies to the incoming notification, the notification is

rejected (no comment dialog box is opened and the notification is not transferred to the Master

Server). A defined rule is enabled if the associated box is checked.

EDM V1.10 / Installation Manual 07/2011 Edition

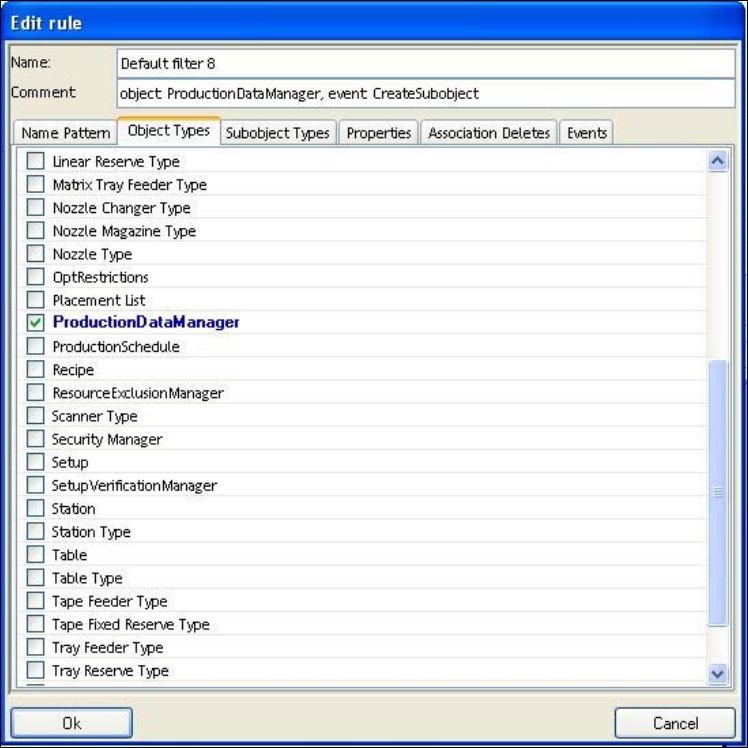

Figure 5-10: Configuration of a single rule

Every condition checks a subset of the properties of the notification. This set is ANDed, i.e. only

when all the properties checked by the condition have the values specified in the condition, the

notification is rejected by this condition.

The following properties can be assessed by a condition:

● Name (regular expression)

● Object type

● Sub-object type

● Property of object or sub-object

● Deletion of sub-objects of a particular object (association delete)

● Type of notification

● SIPLACE user and Windows user

There is a separate tab for each of these properties. If no value is selected in any of the tabs, this

property is not checked. If one or more values are selected, the value of the property in the

notification must match one of the values for the notification to be filtered.
