EDM V1.10 / Installation Manual 07/2011 Edition

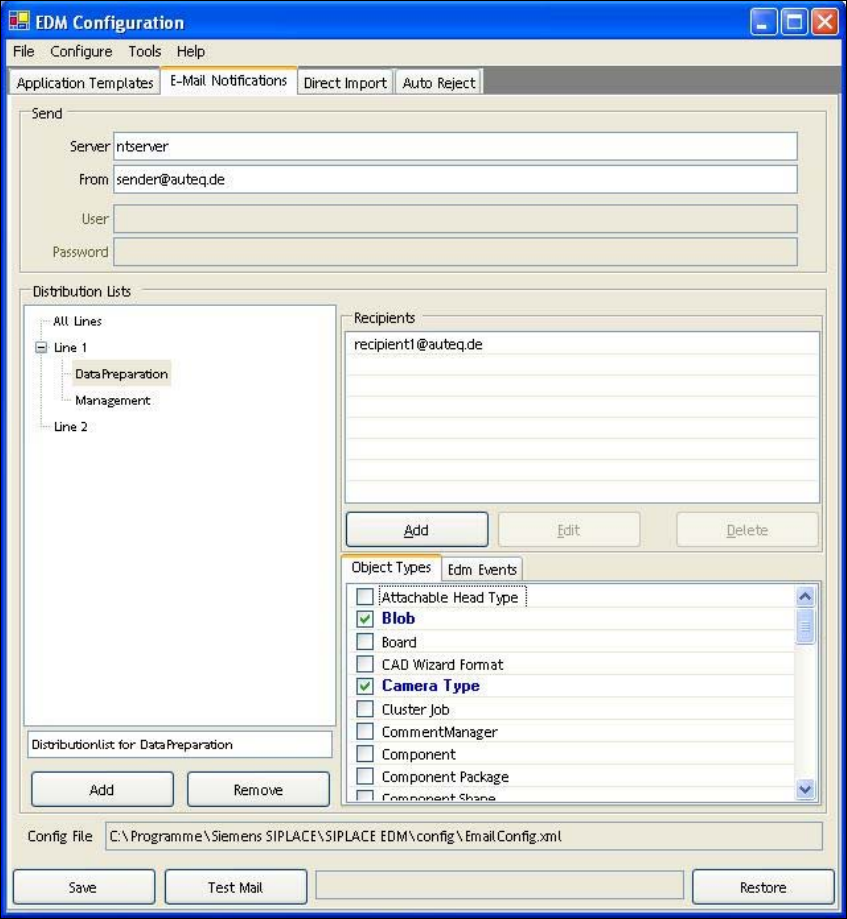

Figure 5-6: Configuration of email distribution lists
The storage location of the configuration file should be specified for informational purposes and
must not be changed. Direct manipulation of the configuration file should also be avoided.
5.4.2.1 Setting up a new list
A line must be selected before a new distribution list can be added. A name and a comment are
assigned to each new list.
5.4.2.2 Configuring a list
After a distribution list has been selected, the email addresses of the recipients and the object
types or EDM events monitored by the list can be entered. All recipients on the distribution list
receive emails regarding notifications which refer to one of the selected object types. Only those
notifications are taken into account that originate from the line for which the distribution list was
created.
If the recipients are to be notified about Forced Pull events, this event must be selected in the
EDM Events tab.
55
EDM V1.10 / Installation Manual 07/2011 Edition
5.4.2.3 General distribution list
The general distribution list reacts to notifications from all lines simultaneously, but is otherwise the
same as normal distribution lists.
5.4.3 Direct import of changed objects to the master database
It is possible to bypass the Clearing Pool and import objects changed on the lines directly into the
master database without the data preparation engineer inspecting the data.

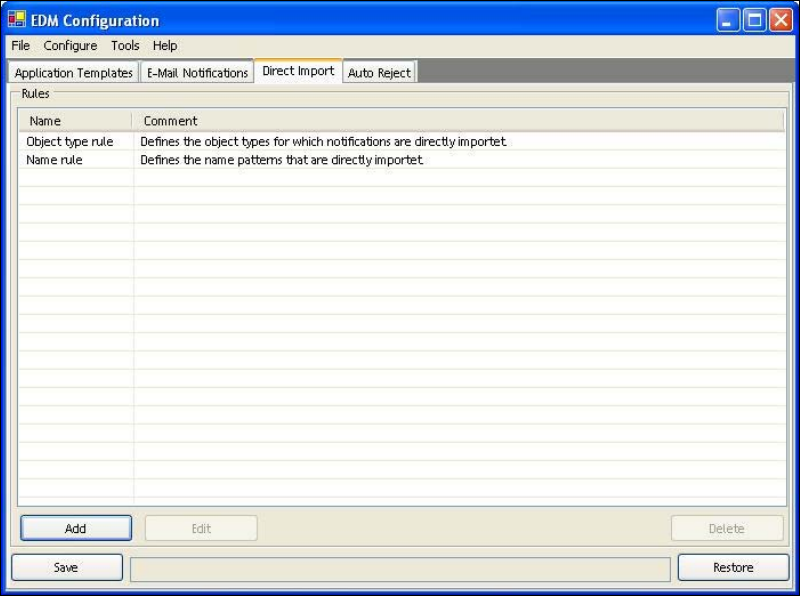

Figure 5-7: Configuration of notifications to be imported directly
Configuration is performed in the same way as for filter configuration (see section 5.5 Filter
configuration), but is carried out on the master. The configuration options, however, only allow
identification of the data using the:
● object type
● name of the changed object.
This restriction is implemented using regular expressions.
The configuration is stored in the ClearingPoolImportFilterConfig.xml file in the config folder.
56
EDM V1.10 / Installation Manual 07/2011 Edition
5.4.4 Automatic rejection of the changes
It is possible to bypass the Clearing Pool and automatically reject objects changed on the lines
without the data preparation engineer inspecting the data. The changes are rejected without being
saved.

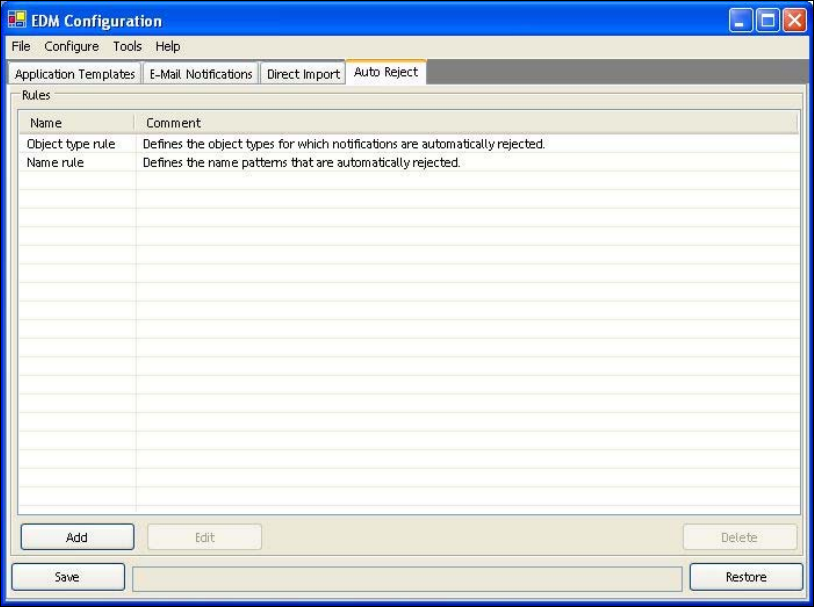

Figure 5-8: Configuration of notifications to be rejected automatically
Configuration is performed in the same way as for filter configuration (see 5.5 Filter configuration),
but is carried out on the master. The configuration options, however, only allow identification of the
data using the:
● object type
● name of the changed object.
This restriction is implemented using regular expressions.
The configuration is stored in the ClearingPoolRejectFilterConfig.xml file in the config folder.
57
