EDM V1.10 / Installation Manual 07/2011 Edition
4.3.4 EDM Master (Master Server) / EDM Master with Clearing Pool and Data
Transfer Manager
Figure 4-8: Configuring the EDM database
The installation procedure is identical for both options.
► Select the server for the Clearing Pool database.
► Enter the password for the database user 'sa'.
Only SQL server instances on the local host are available for selection.
If no EDM database yet exists:
► Confirm the creation of the new database.
► Enter the database options in the following screen (Figure 4-9: EDM database options).
The default settings are generally sufficient.
► Confirm your entries with Next.
21
EDM V1.10 / Installation Manual 07/2011 Edition

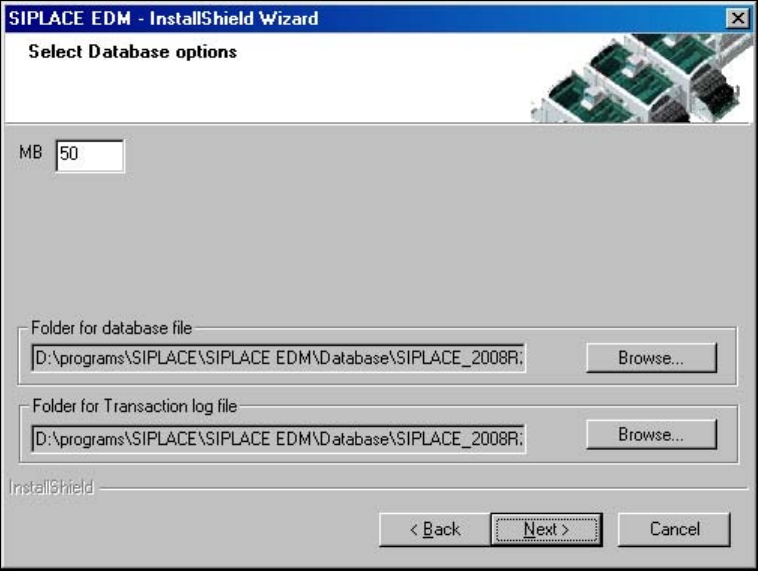

Figure 4-9: EDM database options
If a compatible EDM database has already been read in, this is taken over and converted to the
current version. Otherwise you are asked whether you want to replace the database or select a
different server.
► Confirm your selection with Next.
22
EDM V1.10 / Installation Manual 07/2011 Edition
4.3.5 Finishing the installation
Preparation for the installation is now complete, the files for SIPLACE EDM can be copied and the
configuration can be carried out. The screen below shows a summary of the activities that need to
be carried out for installing a Master Server.

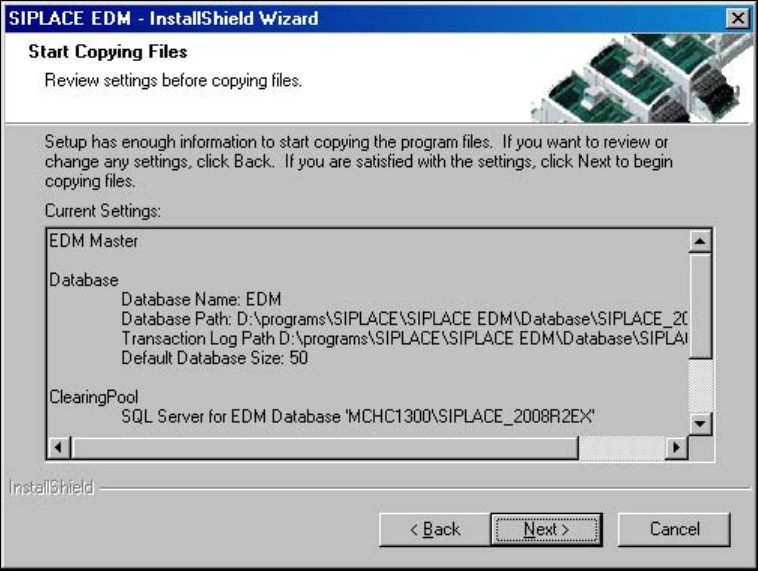

Figure 4-10: Finishing the installation
23
