- 11 -
4.2. Mechanical/Electrical Specifications
4.2.1. Usage environment conditions
KE-3010A/3010AC/3020VA/3020VRA
Power supply
Voltage
Three-phase 200V, 220V, 240V, 380V, 400V, 415V AC ±10% (See
Note 1)
Frequency 50/60Hz
Rated apparent power 3.0kVA
Air supply
Air pressure 0.5±0.05 MPa dry air
Maximum air
consumption
50L/min (ANR) (See Note 2)
Environment
requirements
During operation
Ambient temperature
+ 10 to + 35 °C
Placement accuracy
guarantee temperature
+ 20 to + 25 °C
Relative humidity 30 % to 80% RH (No condensation)
Altitude 1,000m or less
During transportation
or storage
Ambient temperature
- 15°C to + 70°C
Relative humidity 20 % to 95% RH (No condensation)
Noise
73 dB (A) or less (See
Note 3
)
Installation
conditions
(for a EN
machine)
Overvoltage category Category III according to IEC60664-1
Pollution degree Degree 3 according to IEC60664-1
Note 1: No power supply cable at the primary side is attached thereto.
We make NO WARRANTIES against any accident of the primary side wiring caused by
short–circuit of the power cable and so on. Please use a 5.5-mm
2
or more diameter of
power cable for each phase. (Note: the appropriate cross-section area of the cable
varies depending on the supplied power voltage and the length of the power cable.)
Cable length
(m)
Conductor cross section (mm
2
)
200Vseries 400Vseries
Less than 20
5.5
5.5
30 8.0 5.5
40
10.0
6.0
50
14.0
6.0
・
Peak current (at AC200V 3phase power) : 40A
Note 2: ANR conditions are as follows:
Temperature = 20
°
C,
Absolute pressure = 0.1MPa (=100kPa=1bar),
Relative humidity = 65%
Note 3: This value was measured with conforming to the JIS Z8731 regulation.
- 12 -

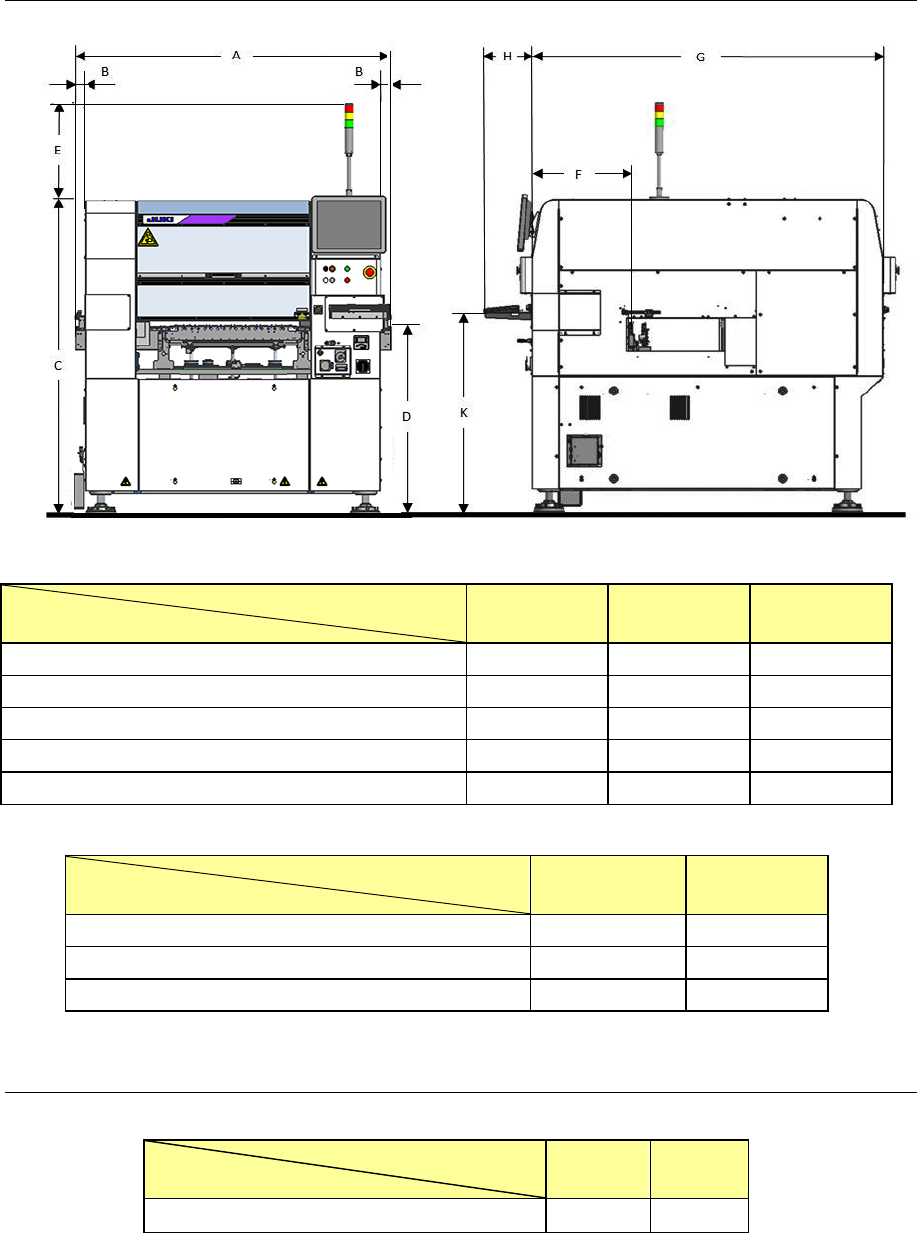

4.2.2. Outside dimension (except for the largest projections)
(Unit: mm)
PWB specification
Dimensions
M PWB L PWB L-Wide
A (transport length) 1,500 1,500 1,800
B (transport output amount) 50 50 200
E(Height of the signal light) 50 50 200
F (PWB transport path from the front side of the cover) 476 476 476
G(Depth of the machine (excluding protrusions)) 484 484 484
* The tolerance of the above dimensions is ±15 mm.
(Unit: mm)
Transport height
Dimensions
900mm 950mm
C (Top surface of the cover from the floor) 1500 1550
D (Top surface of the transport belt from the floor) 900 950
K (Bottom of the keyboard from the floor) 975 1025
* The tolerance of the above dimensions is ±5 mm.
4.2.3. Mass
(Unit: kg)
PWB specification
Model
M PWB L PWB
KE-3010A / 3010AC / 3020VA / 3020VRA 1,850 1,900
- 13 -
4.3. Component placement Cycle Time
(The Number of Component to Be Placed Per Hour)
① Laser recognition
(Unit: CPH)
KE-3010A / 3010AC *7 KE-3020VA / 3020VRA
Reference rail Front reference Rear reference Front reference Rear reference
PWB size
Component height
M L M L M L M L
6mm 18,500 18,500 17,500 15,500 - - - -
12mm 17,100 17,100 16,500 15,000 17,100 17,100 16,500 15,000
20mm - - - - 15,900 15,900 14,500 14,000
*1： This is the number of components to be placed for one hour when 400 pieces of 0603 and 1005
capacitors are placed onto a 200 mm x 200 mm board at an angle of 0, 90, 180 and 270 degrees
sequentially. (This method conforms to the IPC9850 regulation.)
*2： Electric feeders are used as a component supply device.
*3： KE-3020VA and KE-3020VRA place components in sequence by simultaneous pick-up of the 6 nozzles
of the LNC60 head.
*4： Since the 0402 components require to be placed in the particular sequence, when only the 0402
components are placed the placement cycle time is reduced to approximately half.
*5： For the rear reference, each value indicates the cycle time to be applied when components are placed
from a tape feeder attached on the front side.
*6： The cycle time will take longer by up to 3% when the placement monitor is used. In addition, when the
setting “The system pauses if a component existence error occurs” is enabled, the cycle time will take
longer by up to 30%.
*7： KE-3010AC corresponds only to L board, front reference, component height 6mm specification.
② Image recognition
(Unit: CPH)
Head
KE-3020VA
KE-3020VRA
KE-3010A（MNVC）
LNC60
＋
IC head
LNC60
PWB size
Supply form
M L M L
Feeder simultaneous pickup
9,000
9,000
9,000
9,000
DTS 5,100 5,100 5,100 5,100
MTS(TR5SNX) 5,100 5,100 5,100 5,100
MTC(TR6SNV) 1,200 1,200 1,200 1,200
Head
KE-3020VA
KE-3020VRA
KE-3010A（MNVC）
IC head(1 nozzle)
LNC60 (1 nozzle)
PWB size
Supply form
M L M L
DTS
2,200
2,400
2,200
2,400
2,400 2,400
MTS(TR5SNX)
2,100
2,300
2,100
2,300
2,300 2,300
MTC(TR6SNV) 1,300 1,300 ― ―
*1： This is the number of components to be placed for one hour when 36 pieces of QFP and BGA whose
outer dimension is 10 mm x 10 mm or less are placed onto a 330 mm x 250 mm board at an angle of 0,
90, 180 and 270 degrees sequentially.
*2
：
For a tape feeder, it indicates the placement cycle time to be applicable when lead components whose
outer dimensions are 10 mm x 10 mm or less are placed from a tape feeder attached on the rear side.
*3： Component height is 12 mm for M and L machine and 25mm for XL machine.
*4： The time for ATC replacement, board transport and BOC mark recognition is excluded.
