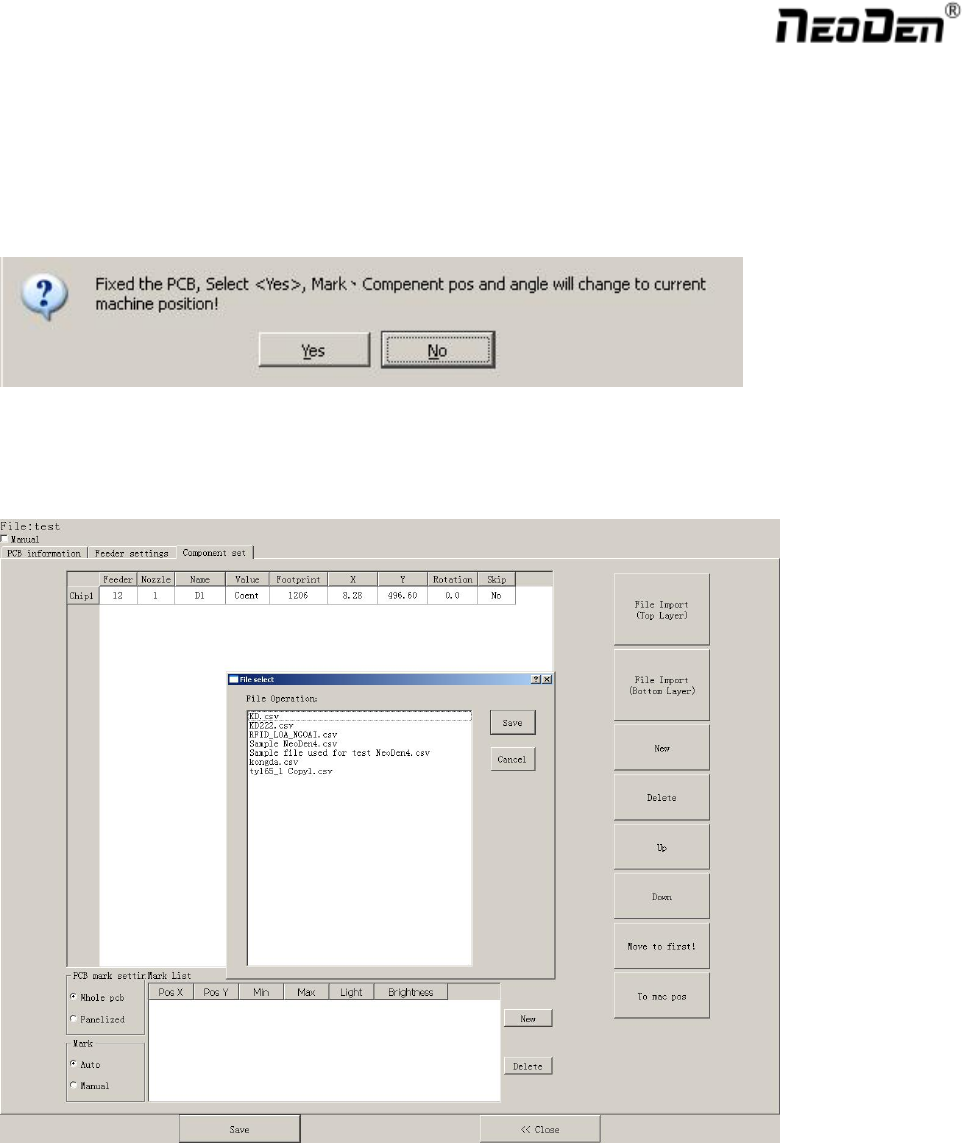

2) After the board arrives to its destination, click “change to current position” button, it will pop up a

message(refer to the image as below), click “Yes”, then the down-looking camera will start to recognize

fiducial marks.

3) After that, coordinates will be automatically converted to absolute values(machine coordinate) according to

the location and angle of board.

Then you can click align to adjust coordinates accordingly.

2.1.3.4. Import PCB Coordinate File

 Generate the coordinate file from PCB layout, make sure the unit is metric and the format is .csv. After

re-arrange the sequence of coordinate information that NeoDen3V could read, save and copy the file into

flash drive, connect it with the machine.

 Go to the programming file screen, unselect “Manual”, click “ Import Top file” button (refer to Illus.2.1.3.4),

select the coordinate file in the pop up. All the data will be imported automatically.

2.1.4 Feeder Settings

All component’s allocation should be operated in this interface, such as selection of nozzles and feeders, pick-up

position, alignment methods, etc.

2.1.4.1. Feeder Arrangement

Left feeders (Feeder 1-25; Right feeders (Feeder 26-45). Special feeders (Feeder 46-55).

There are two ways to setup feeders.

1) Before installing tape& reels.

Press “Allocate chip to feeder”, it will calculate how many different components according to chip list, and

automatically allocate them to each feeder in sequence.

2) After installed tape& reels.

Click on each feeder, it will pop out a drop-down list with all components’ specification, select one by one

according to actual allocation.

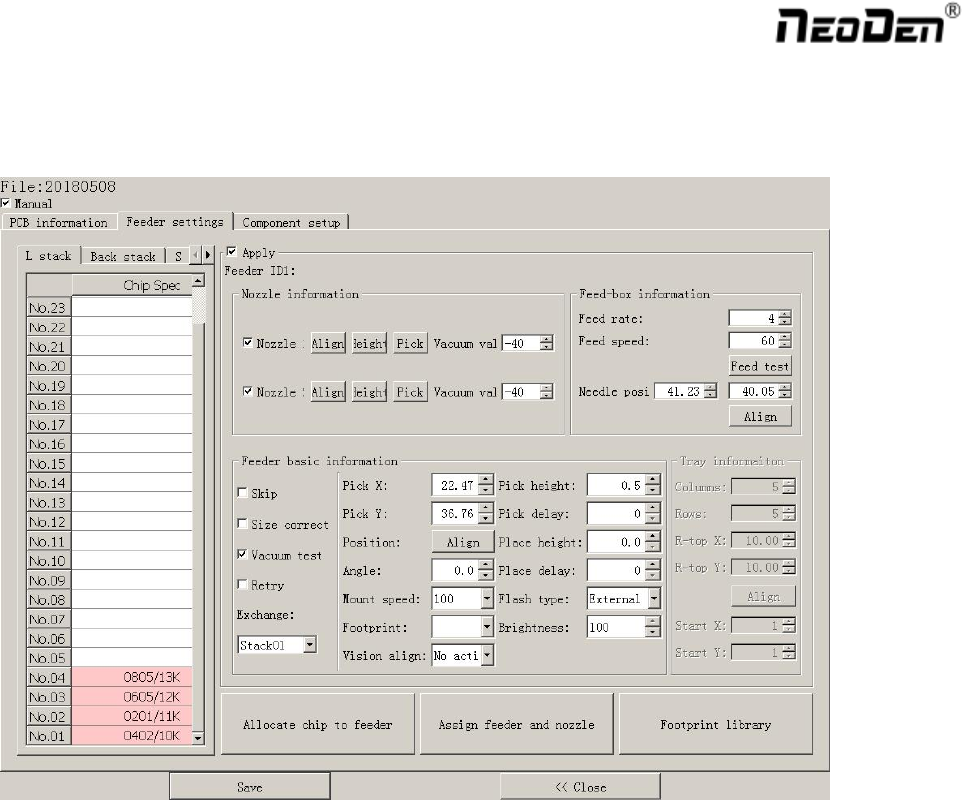

2.1.4.2. Feeder Configuration

Select one feeder and tick the item “Apply”, all configuration will be active under this feeder, now user can do

amendment. There’re 3 items: Nozzle information, Feed-box information, Feeder basic information.

One item will be always locked for Feed-box information(Tray feeder information),according to the differences of

components. Operation sequence: Feed-box information(Tray feeder information)---Feeder basic

information---Nozzle information. “Exchange” in Feeder basic information could be used if wrong tape was

placed.



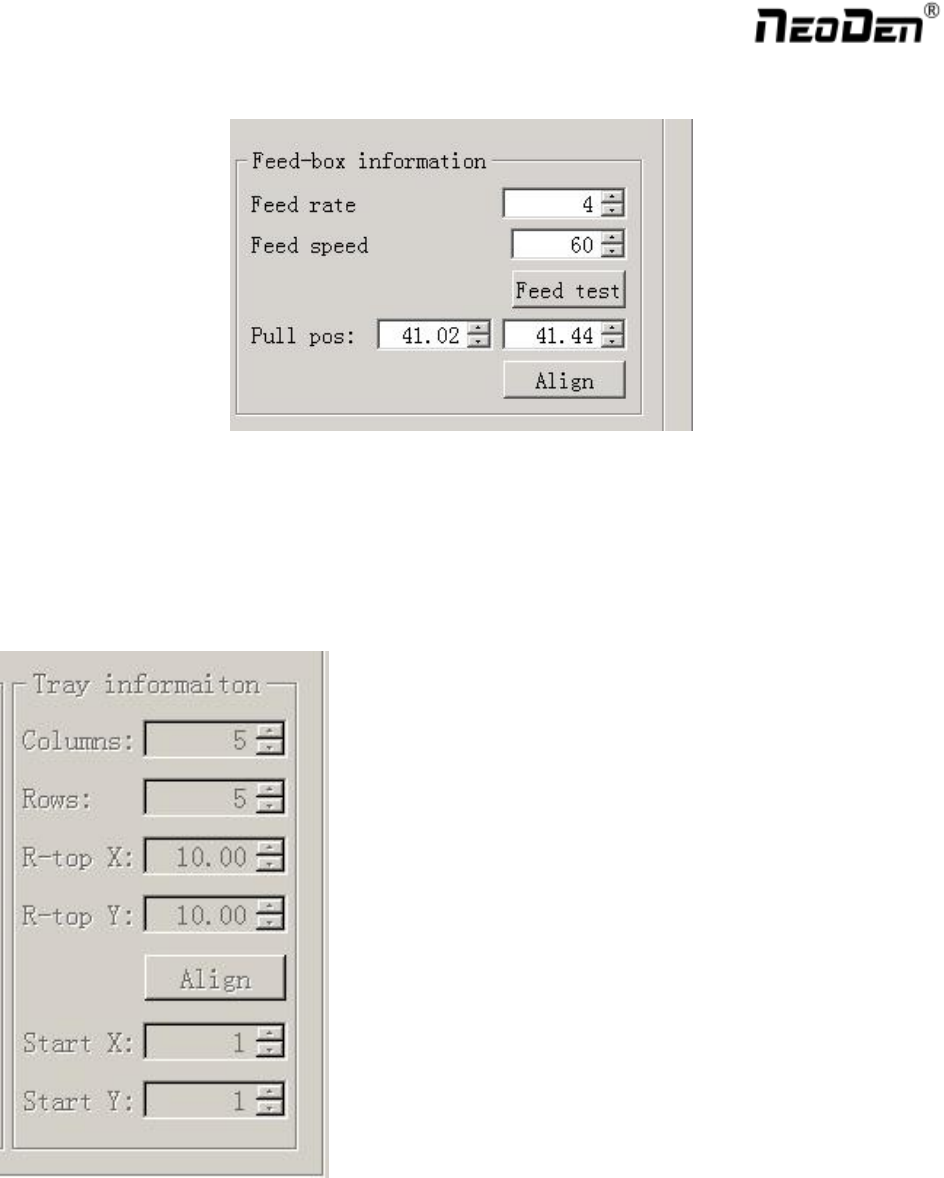

Feed-box Information Setting

Function: Adjust the feed rate of needle.

1) Feed rate: It's the distance between two adjacent holes' centers on tape. You can change the needle feeding

rate by change this value

2) Feed speed: Adjust speed by changing its value against different components. Default value is 1.

3) Feed test: After finishing above steps, user can click this item to test component feeding location.



Tray Feeder Information

Function: Use to set the component’s info from tray and tube package. Complete picking up operation under

special feeders by changing the values.

1) Rows: Component qty in each row (X-direction).

2) Columns: Component qty in each column (Y-direction).

3) Right top X/Y: Find the position of right top component by align. Generally it is the last component in IC

tray, and left bottom side is the first component in IC tray.

4) Start X/Y: This is used to define the position of 1

component, its default setting is X1, Y1 (that is to say 1

row, 1

column ). If some IC on the tray has been used, you can directly setting the start X/Y as actual
