31
3. Structure and maintenance instruction
3.1. Structure Chart

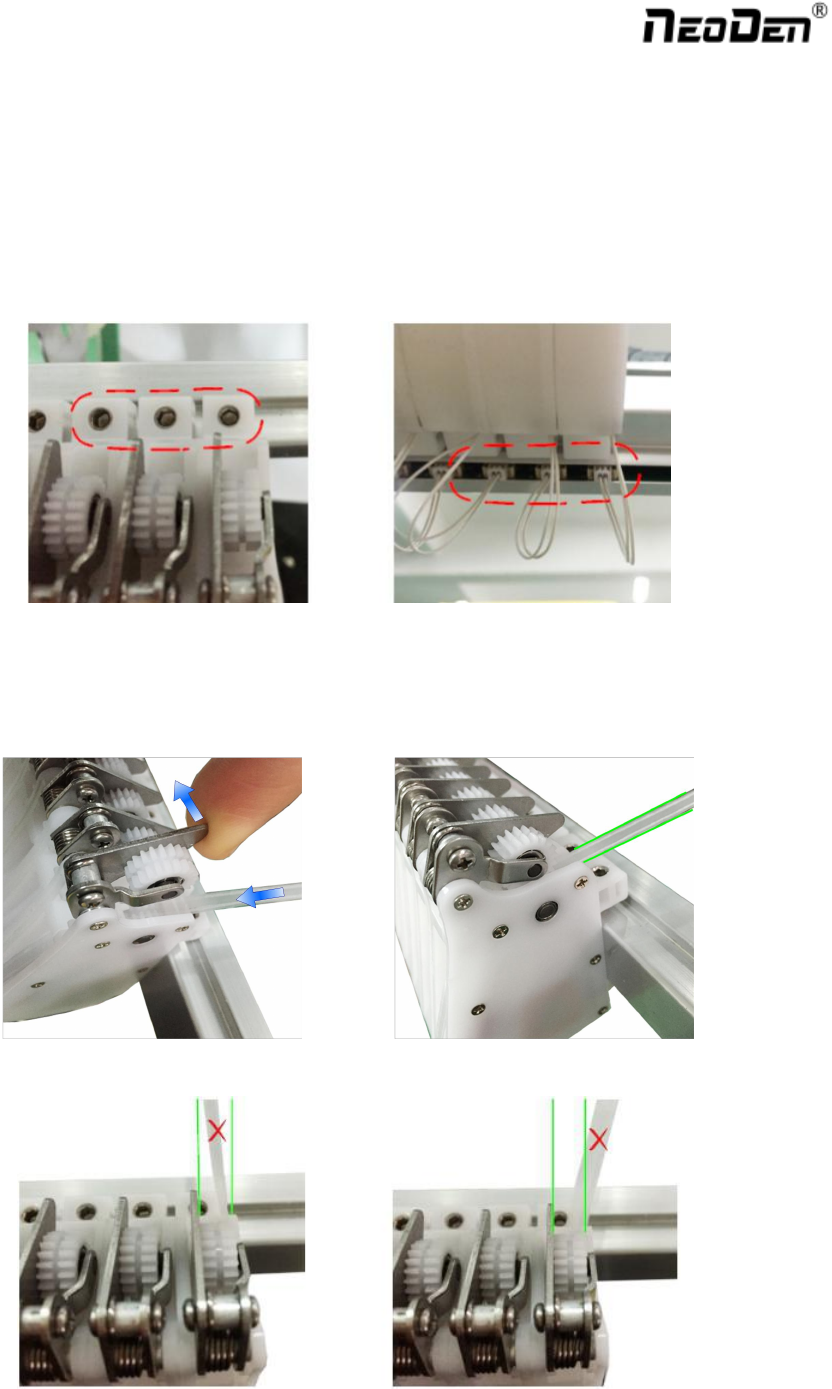

3.1.1. Peel Box
1) Fixation of Peel box
Fix the peel boxes on support bar and plug wires into connectors one by one.
And the ID of each peel box can be changed accordingly.
2) Load Cover Tape
Uplift the gear, while insert the cover tape into it and make sure the cover tape is flat but not kinked.
32

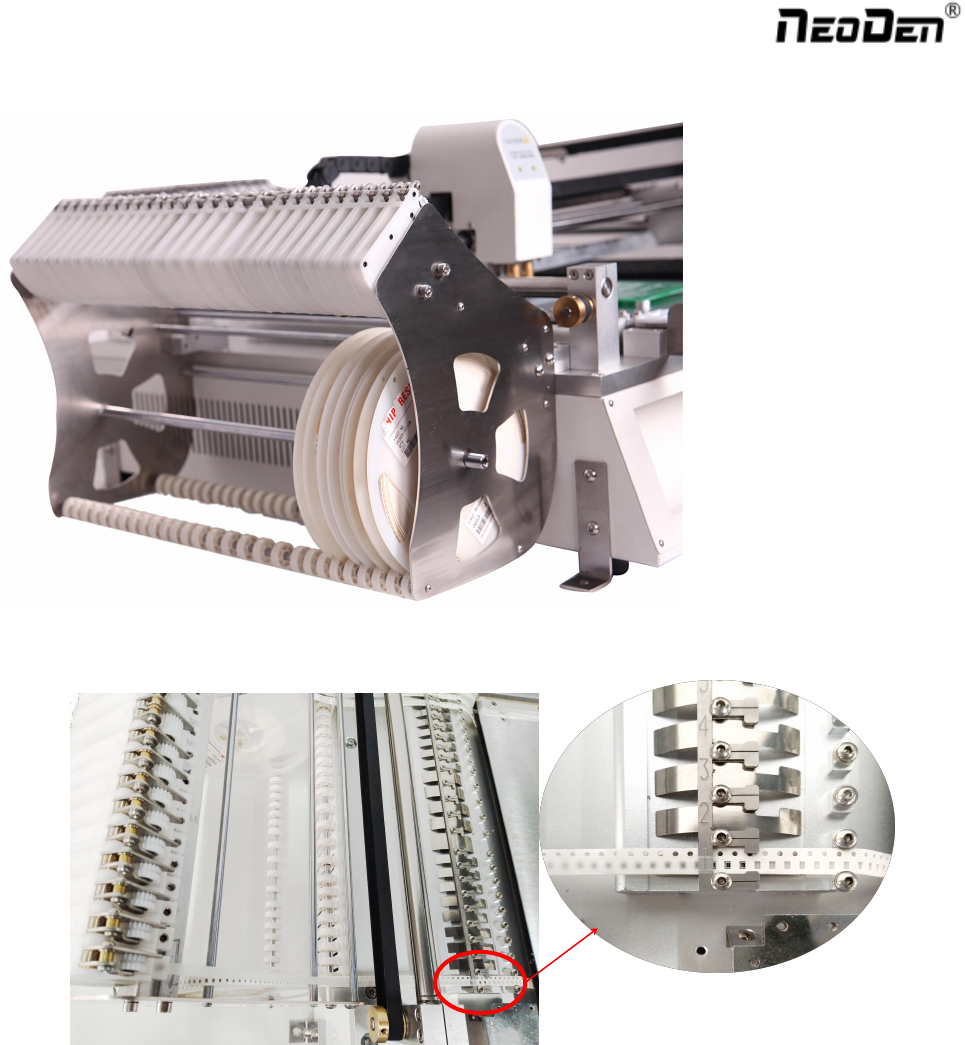

3.1.2. Tape Reel Loading
While loading tape reels on reel rack, the position of each tape reel should be aligned with its peel-box and feeder.
Methods of Tape loading：①Load the tape reel on reel rack；②Insert the tape into feeder；③Pull back the cover
tape from feed outlet；④ Pass the cover tape through pressure rod, then insert the cover tape into gear of peel box.

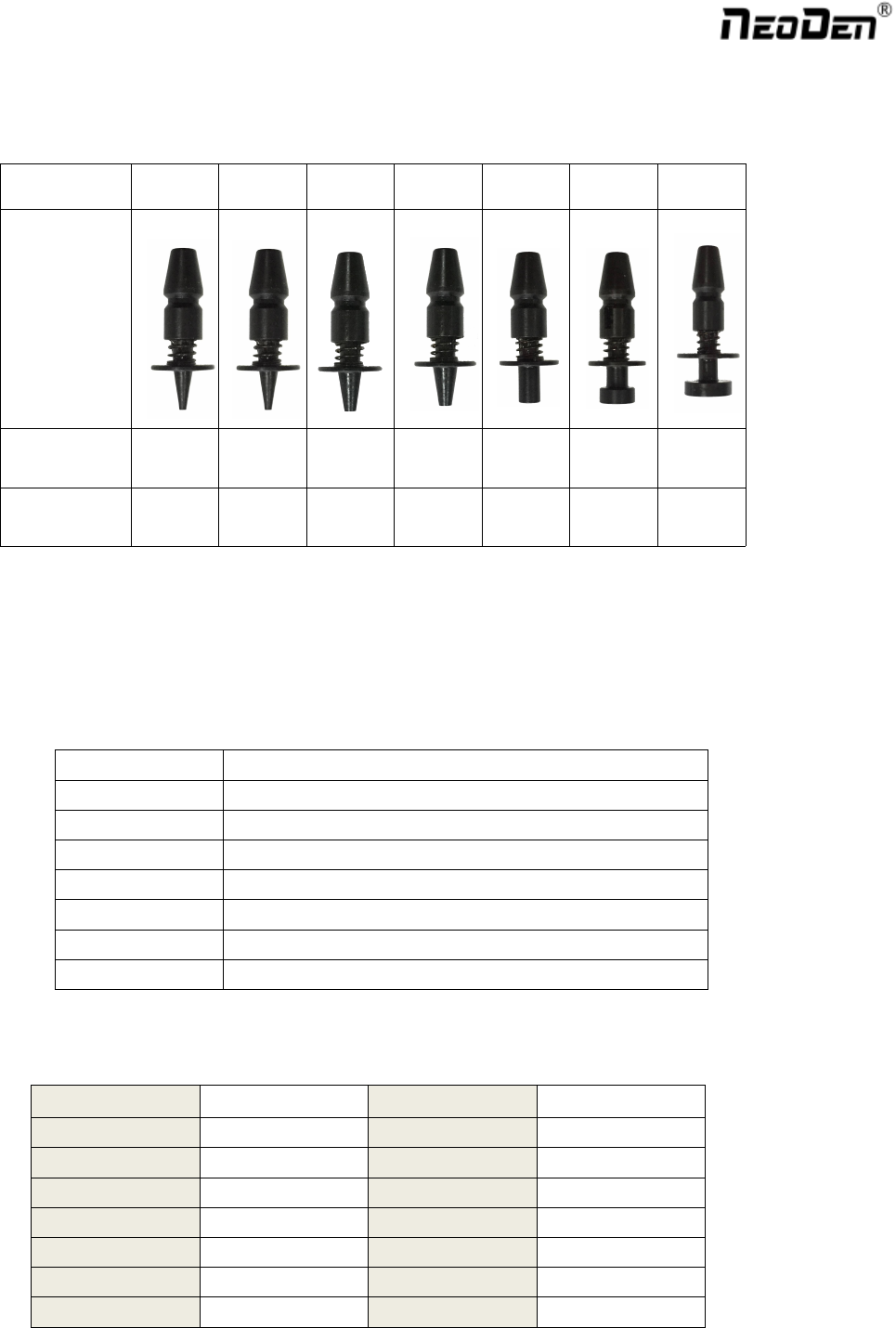

3.1.3. Nozzle
3.1.3.1. Size of Nozzle
Please choose nozzles from the size CN040 to CN750 according to the shape and size of components.
33
Table 1-1 Nozzle
3.1.3.2. Reference of Nozzle Selection
In order to ensure placement accuracy, please select nozzles according to the shape and size of components.
Table 1-2 Size Comparison of Nozzles
Table 1-3 Size Comparison of Components
Size
CN040
CN065
CN100
CN140
CN220
CN400
CN750
Illustration
Outer
Diameter
0.8mm
1.0mm
1.8mm
2.0mm
3.6mm
5.0mm
9.0mm
Inner
Diameter
0.4mm
0.7mm
1.0mm
1.4mm
2.2mm
4mm
7.5mm
Model
Recommendation（Imperial System）
CN040
0402
CN065
0402，0603 etc
CN100
0805,diode,1206,1210,etc
CN140
1206,1210,1812,2010，SOT23,5050,etc
CN220
SOP series ICs,SOT89,SOT223,SOT252,etc
CN400
ICs from 5 to 12mm
CN750
ICs bigger than 12mm
Component
Size
Component
Size
0603
1.6*0.8
0402
1.0*0.5
1206
3.2*1.6
0805
2.0*1.2
1812
4.5*3.2
1210
3.2*2.5
SMA
4.0*2.5
2010
5.0*2.5
SMC
6.6*5.6
SMB
4.0*3.3
SOT89
4.5*2.5
SOT23
3*1.4
TO252
6.5*6.3
SOT223
6.4*3.7
