User Manual SIPLACE S-23 HM 4 Placement Functions
Software Version SR.405.xx 05/99 Issue 4.1 Setup Display
115
4 Placement Functions
4.1 Setup Display
If the cluster has been specified with its corresponding setup, then the setup of each of the 4
locations can be displayed in this view.
4

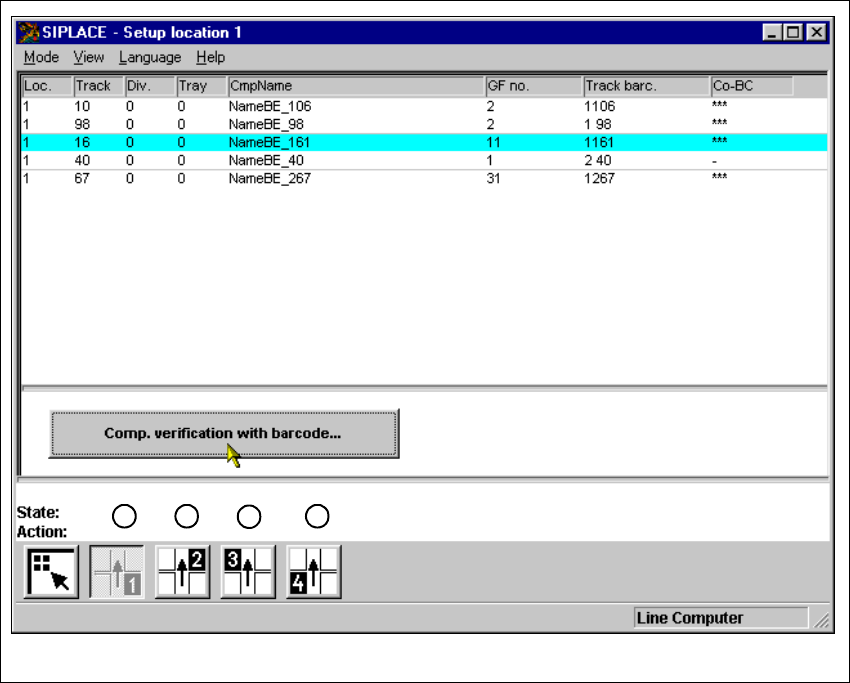

Fig. 4.1 - 1 ’Setup location 1’ view
Key to Fig. 4.1 - 1
(1) Display setup for location 1
(2) Display setup for location 2
(3) Display setup for location 3
(4) Display setup for location 4
1
2
3
4
4 Placement Functions User Manual SIPLACE S-23 HM
4.1 Setup Display Software Version SR.405.xx 05/99 Issue
116
4.1.1 "Setup location x" View
4
È Click on the icon in the toolbar in the Main view.
The user interface switches to the "Setup location x" view.
The setup data for the current location is presented in the display area in tabular form.
NOTE
The view is the same for each location. 4
4.1.1.1 Meaning of the Entries in the Setup Table
Loc.
The number of the location whose setup is to be displayed is entered in this column. (See
Chapter 3, Fig. 3.1 - 2 for the position of the locations)
Track
The number of the track on which the corresponding feeder is located is entered here.
Div.
The number of the feeder division from which the component in the corresponding feeder is to
be picked is entered in this column.
NOTE
The number for a tray division can also be entered here for other types of machines in the
SIPLACE series. 4
Tray
This column is irrelevant when setting up the locations of a SIPLACE S-23 HM.
(Only valid for automatic placement machines with wafflepack changers).
CmpName
The name of the corresponding component is entered in this column.
GF no.
The number of the package form for the corresponding component is entered here.
Track barc.
The track barcode assigned to the corresponding track is entered in this column.
User Manual SIPLACE S-23 HM 4 Placement Functions
Software Version SR.405.xx 05/99 Issue 4.1 Setup Display
117
CO-BC
This column shows whether or not a component barcode has been specified for the corre-
sponding component in the setup using the "***" or "-" symbol.
*** A barcode is specified for the component.
The "Comp. verification with barcode ..." button is active when you click
on these lines in the table (see Section 4.1.2). 4
- No barcode is specified for the component.
(The "Comp. verification with barcode ..." button is not active). 4
4.1.2 Component Verification With Barcode
You prevent a track from being refilled with the wrong components with this function when refilling
components with a specified component barcode.
The operator reads the track barcode and then the component barcode with the barcode reader
(see Chapter 12) . The two barcode assignments are compared with the help of the SC software.
Incorrect assignments are not accepted. 4
4
Requirements
The barcode reader must be connected to the station computer.
The "Track BC" option must be activated on the line computer (in the configuration editor) for
the corresponding station. (Only then will the "Component verification with barcode" option be
displayed in the machine options on the station computer).
The barcodes for the corresponding components must have been entered on the line computer
with the help of the component editor.
(A maximum of 6 different barcodes can be entered for a component at the present time).
The "Component verification with barcode" option must be active in the machine options.
4
Procedure
È Open th e Options menu in the Main view and click on the Machine options ... menu option.
The "Machine options" window is opened (see Chapter 3).
È Activate the checkbox for "Component verification with barcode".
È Click on Apply. The window closes.
È Switch the user interface to the "Setup location x" view.
È Click on the icon in the toolbar for the desired location (see Fig. 4.1 - 1).
