12 Station Extensions - Software User Manual SIPLACE S-23 HM
12.1 Remote Support Software Version SR.405.xx 05/99 Issue
390
12.1.5 Overview
The following configurations are possible for the customer’s placement line: 12
– Connection of the ISDN router to the local SIPLACE-LAN
– Connection of the ISDN router to the customer’s site LAN
12.1.5.1 Connecting the ISDN router to the local SIPLACE-LAN
This possibility is used when there is no site LAN available at the customer’s premises.
The customer will not need to implement any additional data security measures. 12
12
Fig. 12.1 - 1 Connection of ISDN router to the local SIPLACE-LAN
Line computer
Router
Station
computer
Machine
controller
SIPLACE
LAN
Router
Station
computer
LAN
Line computer
Customer‘s placement line Service center
ISDN
network
= LAN card
User Manual SIPLACE S-23 HM 12 Station Extensions - Software
Software Version SR.405.xx 05/99 Issue 12.1 Remote Support
391
12.1.5.2 Connecting the ISDN router to the customer’s site LAN
The advantage of this alternative is that several placement lines can be addressed via a single
router. 12
12
Fig. 12.1 - 2 Connection to the customer’s site LAN
12.1.6 Procedure and Operation
È Contact our service center (Munich, Norcross or Singapore).
È Follow the instructions given by the engineer.
12
Line computer
(LC)
Router
Station
computer
Machine
controller
SIPLACE
LAN
Router
Station
computer
LAN
Line computer
(LC)
Service center
Customer‘s central site network
= LAN card
ISDN
network
Customer‘s placement line
12 Station Extensions - Software User Manual SIPLACE S-23 HM
12.2 GEM Interface Software Version SR.405.xx 05/99 Issue
392
12.2 GEM Interface
12.2.1 General
Explanation of Terms:
GEM => Generic Equipment Model 12
SECS-II => Semiconductor Equipment Communication Standard, Part 2 12
Host computer => Communications computer 12
WIth the GEM/SECS-II interface, it is possible to control a SIPLACE station using any host com-
puter which is compatible with GEM. However, the station computer at the SIPLACE station must
be left connected to the line computer to allow the machine, set-up and cluster data to be pro-
grammed and loaded into the station computer. The station computer packs this data in a place-
ment program and makes this available to the host computer for uploading. During operation, and
depending on the control mode, the host or line computer provides the SIPLACE station with the
necessary machine, set-up and cluster data or with the placement program. 12
12

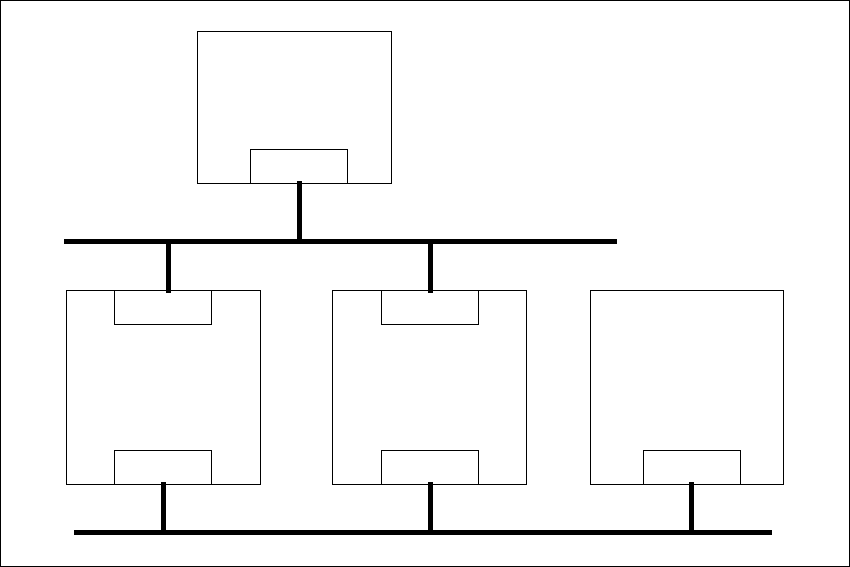

Fig. 12.2 - 1 Overall structure
12
Host
GEM
Line computer
LAN
SIPLACE S-23 HM
GEM
LAN
SIPLACE 80 F
4
SIPLACE 80 F
5
GEM
LAN
SIPLACE LAN
Customer‘s LAN
