(Cause 1) The recognition processing time of the selected component is dif ferent. (Reset Procedure in the case of Cause 1) Reset Procedure (1) Check the selected component and the parameter set in the “RECOG. TIME” text…

100%1 / 308

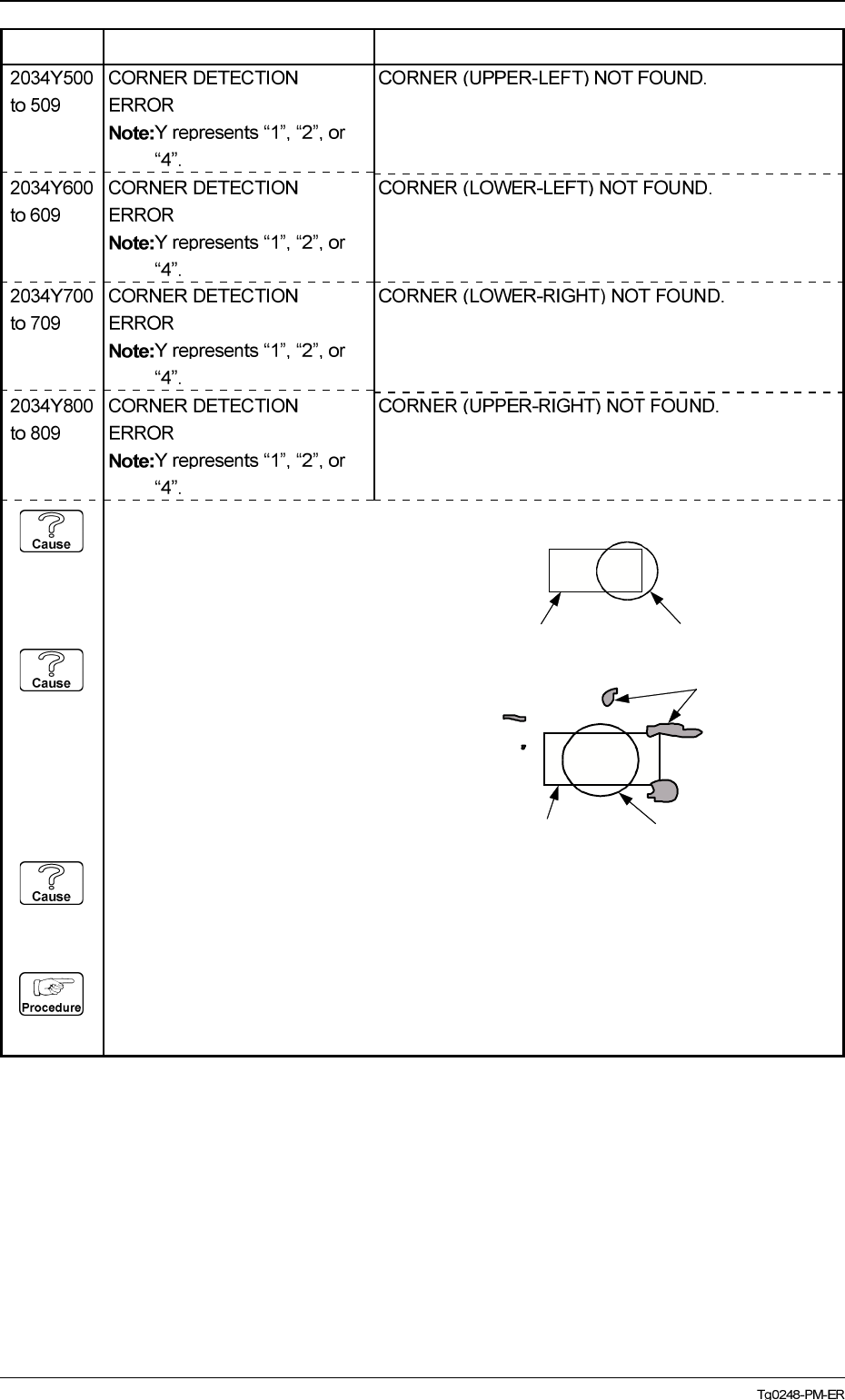

(Cause 1) The pick-up position has shifted from the specified one in the X direction.
(Cause 2) The tapered part of the vacuum nozzle end or the diffusion plate is stained.
(Cause 3) Improper parameters are set in the "FORM", "X SIZE", and "Y SIZE" data boxes of
the label "CORNER DATA".
(Reset Procedure in the case of Causes 1, 2 and 3)
Reset Procedure
(1) Check the component and the tape feeder.
(2) Clean the vacuum nozzle end or the diffusion plate.
5. Component Recognition Error Code and List of Error Messages
0103-001 4-43-1
Error Code Display A Display B
Component Vacuum Nozzle
Component
Vacuum Nozzle
Dirty Spots
(Cause 1) The recognition processing time of the selected component is different.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Check the selected component and the parameter set in the “RECOG. TIME” text box of the
label “SPEED DATA” in the component library data.
(2) If a wrong parameter is set in the component library data, correct it.
5. Component Recognition Error Code and List of Error Messages
Error Code Display A Display B
2036910M EXTERNAL SHAPE DETEC-
TION ERROR
Note:M represents “1” through
“6”.
LINEAR EDGE M NOT FOUND.
20369100 EXTERNAL SHAPE DETEC-
TION ERROR
SOME LINEAR EDGES CANNOT BE DETECTED.
2037X001 RECOGNITION OVERTIME
ERROR
Note:X represents “1” through
“4”.
RECOGNITOIN TOOK TOO MUCH TIME.
(Cause 1) When the selected component is picked up, the pick-up position and angle have shifted
greatly from the specified ones.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Check the selected component and the tape feeder.
5. Component Recognition Error Code and List of Error Messages
Error Code Display A Display B
2040A140 ELECTRICAL CONTACT (UP-
to 149 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (UPPER-RIGHT) OF ELECTRICAL CON-
TACT 1 IS UNABLE RECOGNITION.
2040A150 ELECTRICAL CONTACT (UP-
to 159 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
INTERNAL ERROR OCCURRED DURING EDGE
RECOGNITION OF ELECTRICAL CONTACT 1.
2040A010 ELECTRICAL CONTACT (UP-
to 049 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
NOZZLE PROTRUSION PRESENTS ON SOME ELEC-
TRICAL CONTACTS.
EDGE (LOWER-RIGHT) OF ELECTRICAL CONTACT 1
IS UNABLE RECOGNITION.
EDGE (UPPER-LEFT) OF ELECTRICAL CONTACT 1 IS
UNABLE RECOGNITION.
2040A190 ELECTRICAL CONTACT (UP-
to 199 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
EDGE (UPPER-RIGHT) OF ELECTRICAL CONTACT 1
IS UNABLE RECOGNITION.
2040A200 ELECTRICAL CONTACT (UP-
to 209 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
INTERNAL ERROR OCCURRED DURING CORNER
RECOGNITION OF ELECTRICAL CONTACT 2.
2040A220 ELECTRICAL CONTACT (UP-
to 229 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (LOWER-LEFT) OF ELECTRICAL CONTACT
2 IS UNABLE RECOGNITION.
2040A230 ELECTRICAL CONTACT (UP-
to 239 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (LOWER-RIGHT) OF ELECTRICAL CON-
TACT 2 IS UNABLE RECOGNITION.
2040A210 ELECTRICAL CONTACT (UP-
to 219 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (UPPER-LEFT) OF ELECTRICAL CONTACT
2 IS UNABLE RECOGNITION.
(NEXT PAGE)
2040A240 ELECTRICAL CONTACT (UP-
to 249 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (UPPER-RIGHT) OF ELECTRICAL CON-
TACT 2 IS UNABLE RECOGNITION.
2040A100 ELECTRICAL CONTACT (UP-
to 109 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
INTERNAL ERROR OCCURRED DURING CORNER
RECOGNITION OF ELECTRICAL CONTACT 1.
2040A110 ELECTRICAL CONTACT (UP-
to 119 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (UPPER-LEFT) OF ELECTRICAL CONTACT
1 IS UNABLE RECOGNITION.
2040A120 ELECTRICAL CONTACT (UP-
to 129 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (LOWER-LEFT) OF ELECTRICAL CONTACT
1 IS UNABLE RECOGNITION.
2040A130 ELECTRICAL CONTACT (UP-
to 139 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
CORNER (LOWER-RIGHT) OF ELECTRICAL CON-
TACT 1 IS UNABLE RECOGNITION.
2040A170 ELECTRICAL CONTACT (UP-
to 179 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
2040A180 ELECTRICAL CONTACT (UP-
to 189 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
2040A160 ELECTRICAL CONTACT (UP-
to 169 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
2040A250 ELECTRICAL CONTACT (UP-
to 259 PER) RECOGNITION ERROR
Note:A represents “2” or “3”.
INTERNAL ERROR OCCURRED DURING EDGE
RECOGNITION OF ELECTRICAL CONTACT 2.
EDGE (LOWER-LEFT) OF ELECTRICAL CONTACT 1
IS UNABLE RECOGNITION.
