Page 2-13 MACHINE P ARAMETER 2 3Y3C-E-MMD02-A01-01 Items of Machine Parameter 2-1-8 Judgment V alue Each judgment value during operation is set by this parameter . Acceptable recog rate The value to judge the error in th…
Page 2-12
3Y3C-E-MMD02-A01-01
Items of Machine Parameter
2-1-7 Status Indicator
This parameter enables to set indicator and buzzer under various states.
The display is arranged as the normal status (from the No. 1), the single/cycle stop error (from the
No. 27), and the emergency stop error (from the No. 53).
Press the button for the item to change under the optional status to change the setting.
Indicator
Indicator is set. No, Lit and Blink change in this order.
Buzzer
Buzzer is set. Buzz, Blink, and No change in turn.
Default
Pressing this initiates all setting to our standard.
Inspection by No.
Item of selected No. is displayed at the first of the figure.
Items of Machine Parameter
∗ As for CM88S-MU, [Yellow], [White], and
[Green] are displayed.
Page 2-13
MACHINE PARAMETER
2
3Y3C-E-MMD02-A01-01
Items of Machine Parameter

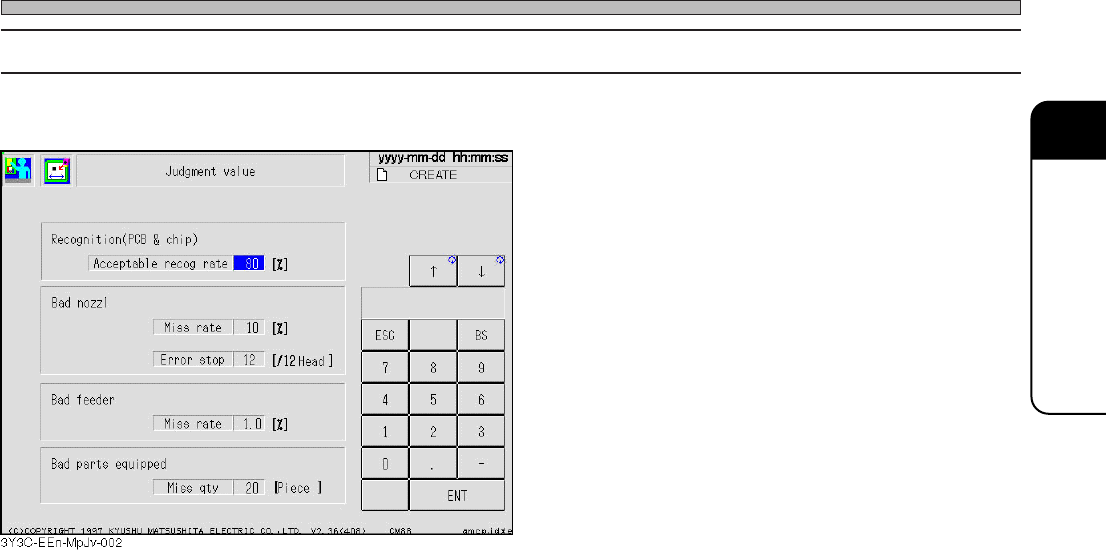

2-1-8 Judgment Value
Each judgment value during operation is set by this parameter.
Acceptable recog rate
The value to judge the error in the board recognition and chip recognition.
When the answer is below the set value, it is judged to be a recognition error.
Bad nozzle Miss rate
If either of the chip pickup fault, chip recognition fault or non-level chip is over the set value, that
nozzle is judged bad.
Bad nozzle Error stop
When bad nozzles among the same type are over the set number, machine stops as an error.
Bad feeder Miss rate
Fault rate for each tape feeder (sum of chip pickup fault, chip recognition fault, and non-level
chip) is over the set value, machine stops as an error.
Bad parts equipped Miss qty
Setting the miss quantity (except 0) carries out the pickup and sending within the range of the
specified miss quantity, and automatically sends the first parts to the pickup position, even when
the first pickup parts are not normally sent to the position for supplying the parts. (As for this
operation, the pickup quantity and miss quantity are not counted.) If the parts cannot be picked
up when the specified missing quantity is over, the machine stops as an error.
Page 2-14
3Y3C-E-MMD02-A01-02
Items of Machine Parameter
2-1-9 Optional Setting
This is the parameter to set the condition of system movement.
These can be changed when you are in engineer mode or when the machine parameters are
opened to an operator by customizing.
∗ The functions “PCB positioning speed” and “Oil cooling box” can be set by CM88S only.
PCB conveyor direction
Usually, board flow direction is fixed. But it is changeable on the machine with optional specifica-
tions which is applicable for both flows.
PCB eject
When transferring the board to the post-station, setting of the flow without condition or the flow
after receiving the demanding signal can be selected. If the process is in the line, usually set
“order signal.”
Pre process other company machine joint
The timing to turn off the board requirement signal for the pre-process machine can be set.
“No” : (By our specifications) When the transfer board comes to the front
conveyor stop position, the board requirement signal is turned OFF.
“Other company machine”: (By special specifications) When the transfer board shields the
entrance sensor of front conveyor, the board requirement signal is
turned OFF.
