Page 1-6 3Y3C-E-MMZ0A-A01-00 Mounting Position Calibration 10. Press Machine parameter . 11 . Press Machine mainte . 12 . Press Mount position .
Page 1-5
CALIBRATION
3Y3C-E-MMZ0A-A01-01
Mounting Position Calibration

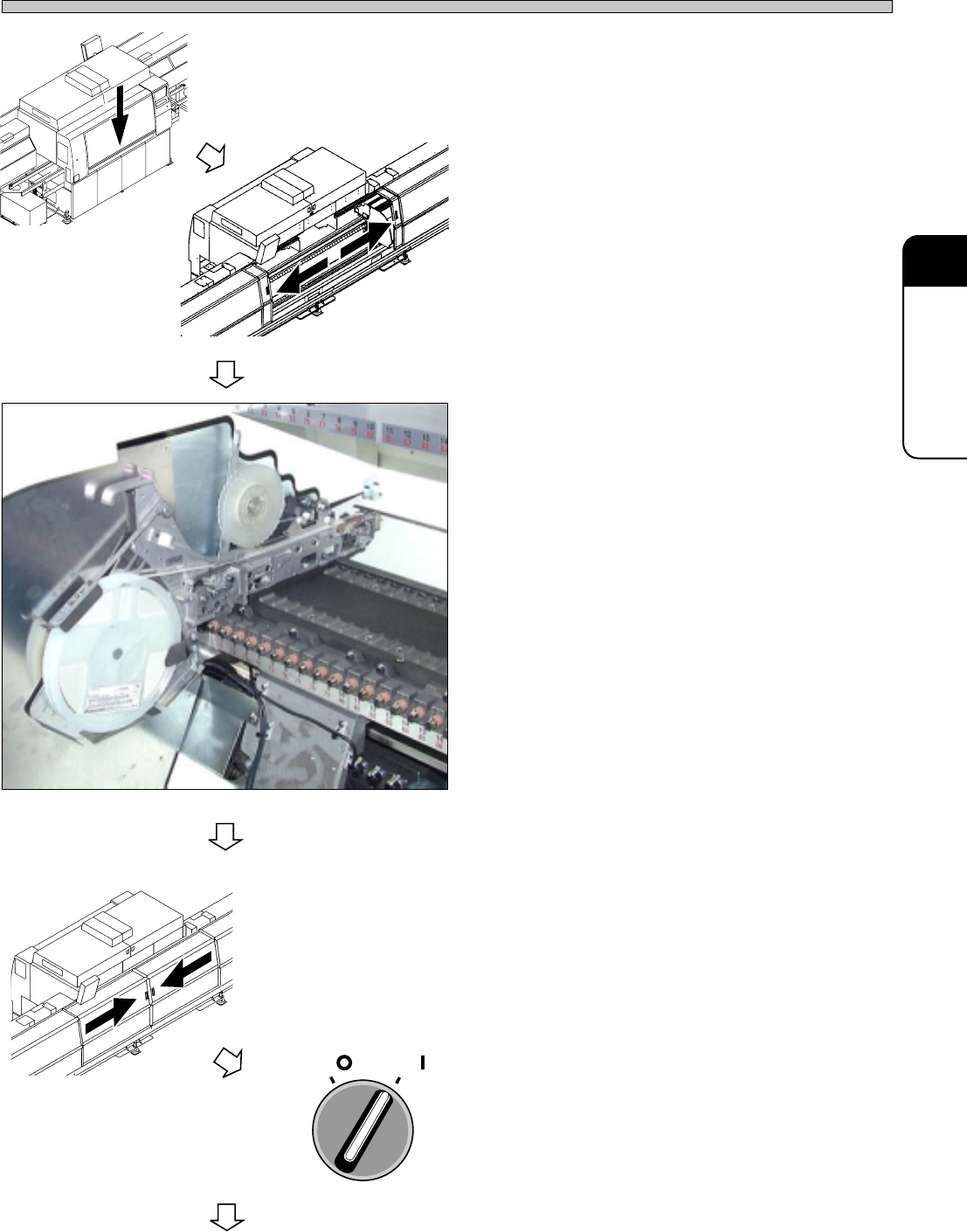

5. Close the front safety cover.
6. Open the rear center safety cover.
7. Set the tape feeder at the No. 1 slot on
the B stage.
∗ Set the chips that are selected from the data.
8. Close the rear center safety cover.
9. Turn ON the servo switch.
4G3C-AA01
3Y3C-138P
OFF ( )
ON ( )
SERVO
To the next page
3Y3C-AI01
3Y3C-AG01
Page 1-6
3Y3C-E-MMZ0A-A01-00
Mounting Position Calibration

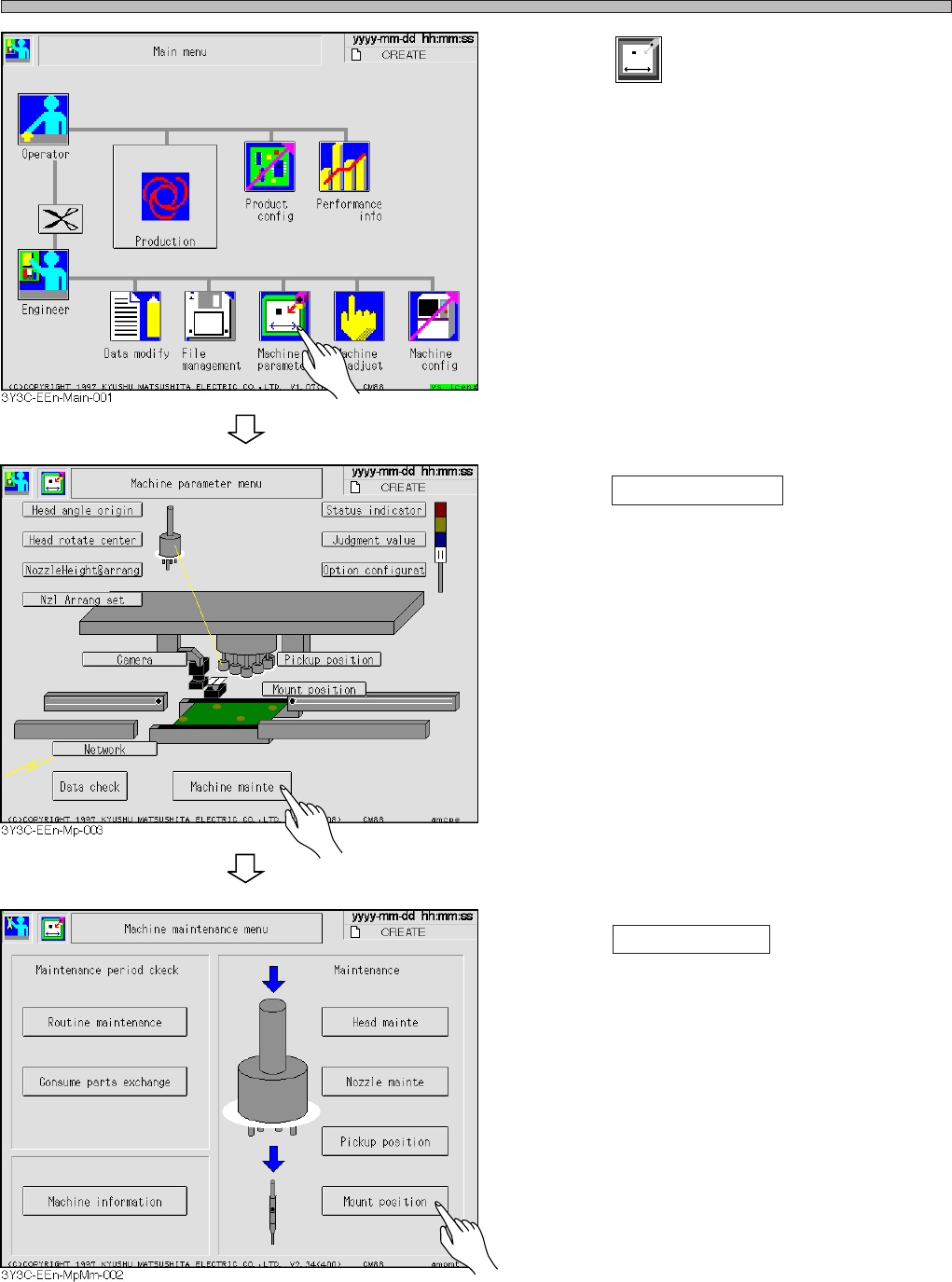

10. Press
Machine
parameter
.
11. Press Machine mainte .
12. Press Mount position .
Page 1-7
CALIBRATION
3Y3C-E-MMZ0A-A01-00
Mounting Position Calibration
4. Calibration

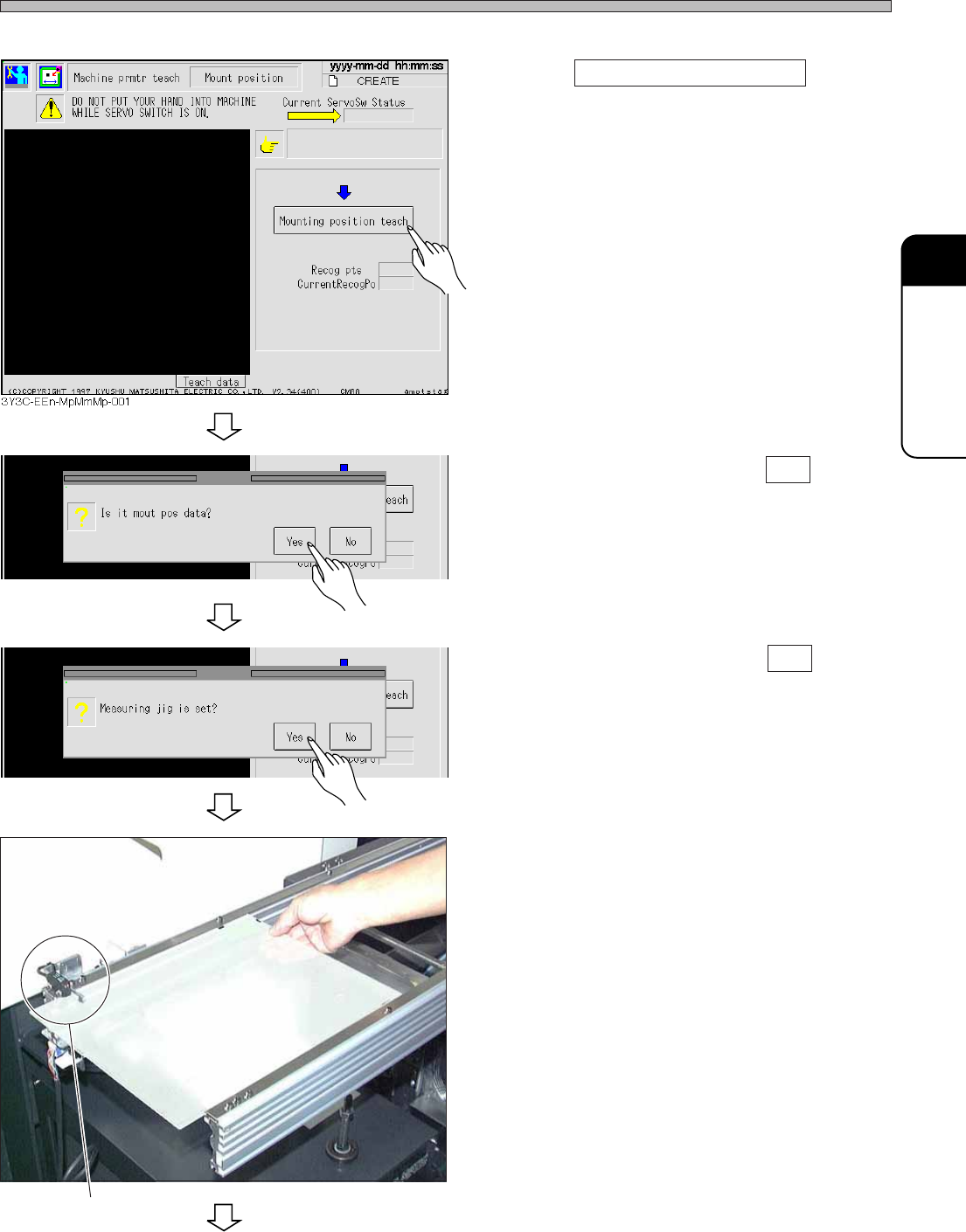

1. Press Mounting position teach .
• The confirmation message appears.
2. After confirmation, press Yes .
• The confirmation message appears.
3. After confirmation, press Yes .
• The message “Measuring jig is set?” appears.
4. Set the exclusively reserved board
onto the front conveyor.
∗ Put the board onto the position where the
sensor will be blocked.
Sensor
3Y3C-139P
3Y3C-EEn-MpMmMp-002
3Y3C-EEn-MpMmMp-003
To the next page
