9-1 9 本体改造キット REMODELING KIT, MAIN 45 37 20 51 41 56 32 45 36 45 37 35 4 3 45 36 30 17 31 23 22 22 21 26 24 40 21 2 2 51 56 29 40 28 25 27 1 55 44
8-3-4
8-3
スライド扉ユニット
DOOR UNIT, SLIDE
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
- 4-706-740-07
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X20SUS)
BOLT (M6X20SUS),HEXAGON SOCKET
16
M6X20SUS
54 4-707-208-71
ｶﾑ
ﾌｵﾛｱ
(CF8-A)
FOLLOWER, CAM (CF8-A)
4
CF8-A
55 4-719-686-31
ﾂｷﾞﾃ
ｴﾙﾎﾞ
ﾕﾆｵﾝ
(KQ2L04-M5)
UNION, JOINT ELBOW(KQ2L04-M5)
4
KQ2L04-M5, SMC
56 4-720-026-01
ﾄﾞｱ
-
ｽｲﾂﾁ
ﾖｳ
ｷ
- (D4DS-K3)
KEY, DOOR SWITCH (D4DS-K3)
2
D4DS-K3, OMRON
57 4-720-057-01
ｶﾗ
-
COLLAR
4
58 4-720-079-03
ﾛﾂﾄﾞ
ｶﾞ
-
ﾄﾞ
GUARD, ROD
4
59 4-720-229-01
ｼﾘﾝﾀﾞ
(CQSB20-10S)
CYLINDER (CQSB20-10S)
4
CQSB20-10S, SMC
60 4-720-242-01
ﾁﾖｳﾊﾞﾝ
(B-1078-13)
HINGE (B-1078-13)
6
B-1078-13, TAKIGEN
61 7-624-108-04
E
ｶﾞﾀ
ﾄﾒﾜ
4.0
STOP RING 4.0, TYPE -E
8
TYPE -E
62 7-682-275-09
+K 5X10
SCREW +K 5X10
8
+K 5X10
63 7-688-003-11
W 3, MIDDLE
W 3, MIDDLE
8
W 3, MIDDLE
64 7-688-004-11
W 4, MIDDLE
W 4, MIDDLE
24
W 4, MIDDLE
65 7-688-005-11
W 5, MIDDLE
W 5, MIDDLE
8
W 5, MIDDLE
66 7-688-006-11
W 6, MIDDLE
W 6, MIDDLE
8
W 6, MIDDLE
9-1
9
本体改造キット
REMODELING KIT, MAIN
45
37
20
51
41
56
32
45
36
45
37
35
4
3
45
36
30
17
31
23
22
22
21
26
24
40
21
2
2
51
56
29
40
28
25
27
1
55
44

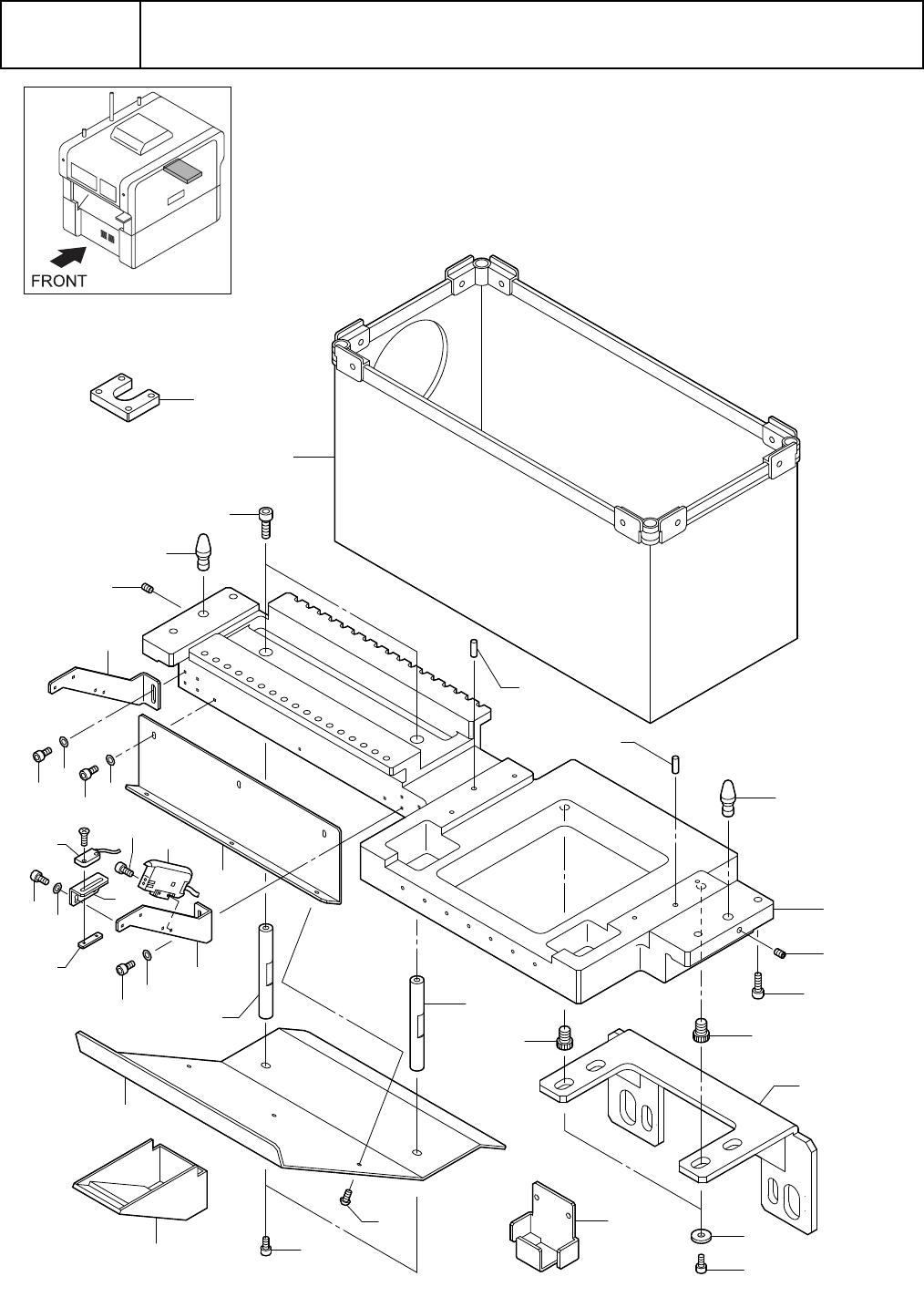

9-2
9
本体改造キット
REMODELING KIT, MAIN
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 3-294-654-01
ﾏｳﾝﾄ
ﾃ
-
ﾌﾞﾙ
TABLE, MOUNT
1
2 4-705-546-01
ﾍｲｺｳ
ﾋﾟﾝ
(
ﾌｱｲ
6)
PIN (DIA. 6), PARALLEL
2
DIA. 6
3 1-418-893-11
ﾌｱｲﾊﾞ
ｾﾝｻ
(E32-T16P)
SENSOR, FIBER (E32-T16P)
1
E32-T16P
4 1-480-833-12
(S)
ﾌｱｲﾊﾞｰ
ｾﾝｻ
ｱﾝﾌﾟ
ASSY (E3X-DA11-S-4)
(S) FIBER SENSOR AMPLIFIER ASSY
1
E3X-DA11-S-4
- 2-149-044-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X15 SUS)
BOLT, HEXAGON SOCKET (M6X15SUS
8
M6X15 SUS
17 2-886-465-01
ｲﾀ
ﾅﾂﾄ
(2)
NUT (2), PLATE
2
- 2-915-947-01
ｼﾞﾕｳｼﾞ
ｱﾅﾂｷ
ｻﾗ
ｺﾈｼﾞ
(M3 SUS)
SCREW (M3 SUS), (HOLE) PLATE
1
M3 SUS
- 2-915-947-21
ｼﾞﾕｳｼﾞ
ｱﾅﾂｷ
ｻﾗ
ｺﾈｼﾞ
(M3 SUS)
SCREW (M3 SUS), (HOLE) PLATE
4
M3 SUS
20 3-282-472-01
Y (+)
ｳﾚﾀﾝ
ｽﾄﾂﾊﾟ
STOPPER, Y (+) URETHANE
1
+
21 3-282-479-01
ﾏｳﾝﾄ
ﾌﾞﾗｹﾂﾄ
ﾖｳ
ｽﾍﾟ
-
ｻ
SPACER, MOUNT BRACKET
2
22 3-282-564-01
ﾊｲｼﾕﾂ
ｶﾞｲﾄﾞ
ｼﾔﾌﾄ
SHAFT, DISCHARGE GUIDE
2
23 3-282-626-01
ﾊｲｼﾕﾂ
ｶﾞｲﾄﾞ
ﾌﾞﾗｹﾂﾄ
BRACKET, DISCHARGE GUIDE
1
24 3-282-789-01
ｼﾖ
-
ﾄ
ﾊｲｼﾕﾂ
ｶﾊﾞ
-
COVER, SHORT DISCHARGE
1
25 3-294-608-02
ﾏｳﾝﾄ
ﾌﾞﾗｹﾂﾄ
BRACKET, MOUNT
1
26 3-294-614-01
ﾊﾟ
-
ﾂ
BOX (50*100
ﾀｲｵｳ
)
BOX (50*100 CORRESPOND), PARTS
1
27 3-294-615-01
ﾀﾞｽﾄ
ﾎﾞﾂｸｽ
(
ﾄﾚｲ
)
BOX (TRAY), DUST
1
28 3-294-616-02
ﾊﾟ
-
ﾂ
BOX
ｽﾀﾝﾄﾞ
STAND, PARTS BOX
1
29 3-700-983-01
ｽﾍﾟ
-
ｻ
-
SPACER
2
30 3-700-990-01
ｶｾﾂﾄ
ｳｷ
ｾﾝｻ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, CASSETTE FLOAT SENSOR
2
31 3-870-132-01
ｶｾﾂﾄ
ｳｷ
ｹﾝｼﾕﾂ
ﾌﾞﾗｹﾂﾄ
(L)
BRACKET (L), FLOAT DETECTION
1
32 3-870-132-11
ｶｾﾂﾄ
ｳｷ
ｹﾝｼﾕﾂ
ﾌﾞﾗｹﾂﾄ
(R)
BRACKET (R), FLOAT DETECTION
1
35 4-706-724-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X5)
BOLT (M3X5), HEXAGON SOCKET
2
M3X5
36 4-706-725-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X8)
BOLT (M4X8), HEXAGON SOCKET
4
M4X8
37 4-706-725-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X10)
BOLT (M4X10), HEXAGON SOCKET
48
M4X10
- 4-706-725-51
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X6)
BOLT (M4X6), HEXAGON SOCKET
9
M4X6
- 4-706-726-03
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X8SUS)
BOLT (M5X8SUS), HEXAGON SOCKET
5
M5X8SUS
