13-4-1 13-4 バッテリユニ ット BATTERY UN I T
13-3-2
13-3
ＳＥＲＶＯ Ｉ／Ｆ ユニット
SERVO (I/F) UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-789-286-12
SY-EX2 BOARD ASSY
BOARD ASSY, SY-EX2
2
2 2-694-394-01
SERVO I/F
ﾕﾆﾂﾄ
ｿｸﾒﾝ
ﾊﾟﾈﾙ
(
ﾋﾀﾞﾘ
PANEL (LEFT), SIDE
1
3 2-694-395-01
SERVO I/F
ﾕﾆﾂﾄ
ｿｸﾒﾝ
ﾊﾟﾈﾙ
(
ﾐｷﾞ
)
PANEL (RIGHT), SIDE
1
4 2-694-410-01
SERVO I/F
ﾕﾆﾂﾄ
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, SERVO I/F UNIT MAIN
1
5 4-706-151-11
ﾊｲｾﾝﾄﾞﾒ
(KR5G5)
CLAMP (KR5G5)
6
KR5G5, KYORITSU
6 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
16
KGLS-4S, MORIMIYA
7 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
8 4-707-937-01
ｺﾞﾑ
ｱｼ
(BU-4850 15
ｶﾞﾀ
)
FOOT (BU-4850 15 TYPE), RUBBER
4
BU-4850 15 TYPE,
SATO PARTS
9 4-711-852-31
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-9)
HANDLE, ROUND BAR (A-1042-C-9)
2
A-1042-C-9, TAKIGEN
10 7-681-000-12
+K M4X8
SCREW +K M4X8
6
+K M4X8
11 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
6
+PSW 3X6
12 7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
4
+PSW 4X8

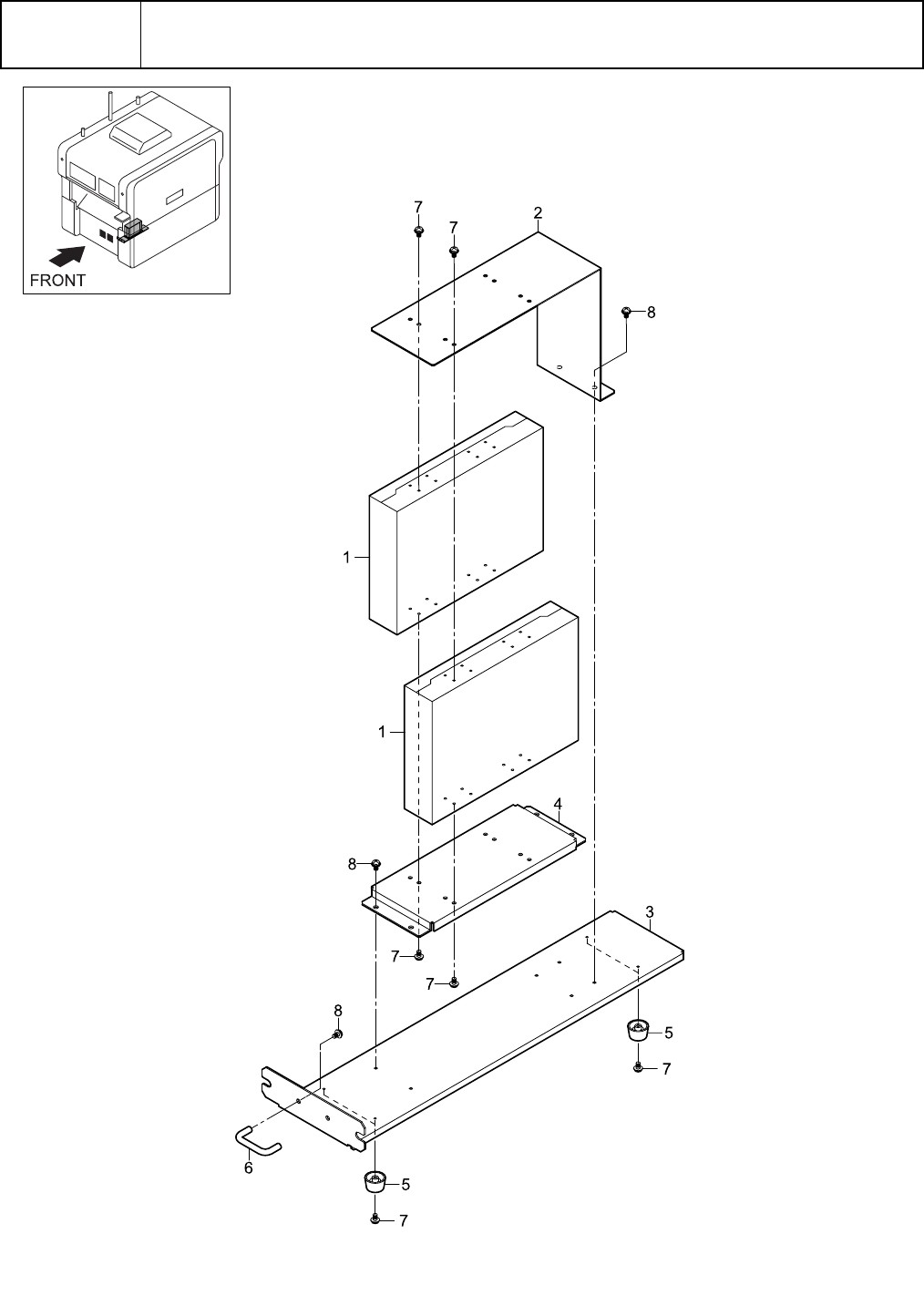

13-4-1
13-4
バッテリユニット
BATTERY UNIT
13-4-2
13-4
バッテリユニット
BATTERY UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-756-676-11
ﾊﾞﾂﾃﾘ
(BS10A-H24/2.0L)
BATTERY (BS10A-H24/2.0L)
2
BS10A-H24/2.0L, NIPRON
2 2-694-396-01
ﾊﾞﾂﾃﾘ
ｵｻｴ
ﾌﾞﾗｹﾂﾄ
BRACKET, BATTERY RETAINER
1
3 2-694-575-01
ﾊﾞﾂﾃﾘ
ﾕﾆﾂﾄ
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, BATTERY UNIT MAIN
1
4 2-694-576-01
ﾊﾞﾂﾃﾘ
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
BRACKET, BATTERY FITTING
1
5 4-707-937-11
ｺﾞﾑ
ｱｼ
(BU-4850 20
ｶﾞﾀ
)
FOOT, RUBBER (BU-4850 20 TYPE)
4
BU-4850 20 TYPE,
SATO PARTS
6 4-711-852-31
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-9)
HANDLE, ROUND BAR (A-1042-C-9)
1
A-1042-C-9, TAKIGEN
7 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
12
+PSW 3X6
8 7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
8
+PSW 4X8
