13-8-1 13-8 Ｉ／Ｏ ユニット３ I/ O U N IT (3 )
13-7-2
13-7
Ｉ／Ｏユニット２
I/O UNIT (2)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-789-403-11
EMG I/L
ｷﾊﾞﾝ
3-B ASSY
EMG I/L BOARD 3-B ASSY
1
2 1-789-405-11
LED
ｾｲｷﾞﾖ
ｷﾊﾞﾝ
4 ASSY
LED CONTROL BOARD 4 ASSY
1
3 2-694-416-01
I/O
ﾕﾆﾂﾄ
2,3
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, I/O UNIT 2,3 MAIN
1
4 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
10
KGLS-4S, MORIMIYA
5 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
6 4-707-937-11
ｺﾞﾑ
ｱｼ
(BU-4850 20
ｶﾞﾀ
)
FOOT, RUBBER (BU-4850 20 TYPE)
4
BU-4850 20 TYPE,
SATO PARTS
7 4-711-852-31
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-9)
HANDLE, ROUND BAR (A-1042-C-9)
1
A-1042-C-9, TAKIGEN
8 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
4
+PSW 3X6
9 7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
2
+PSW 4X8

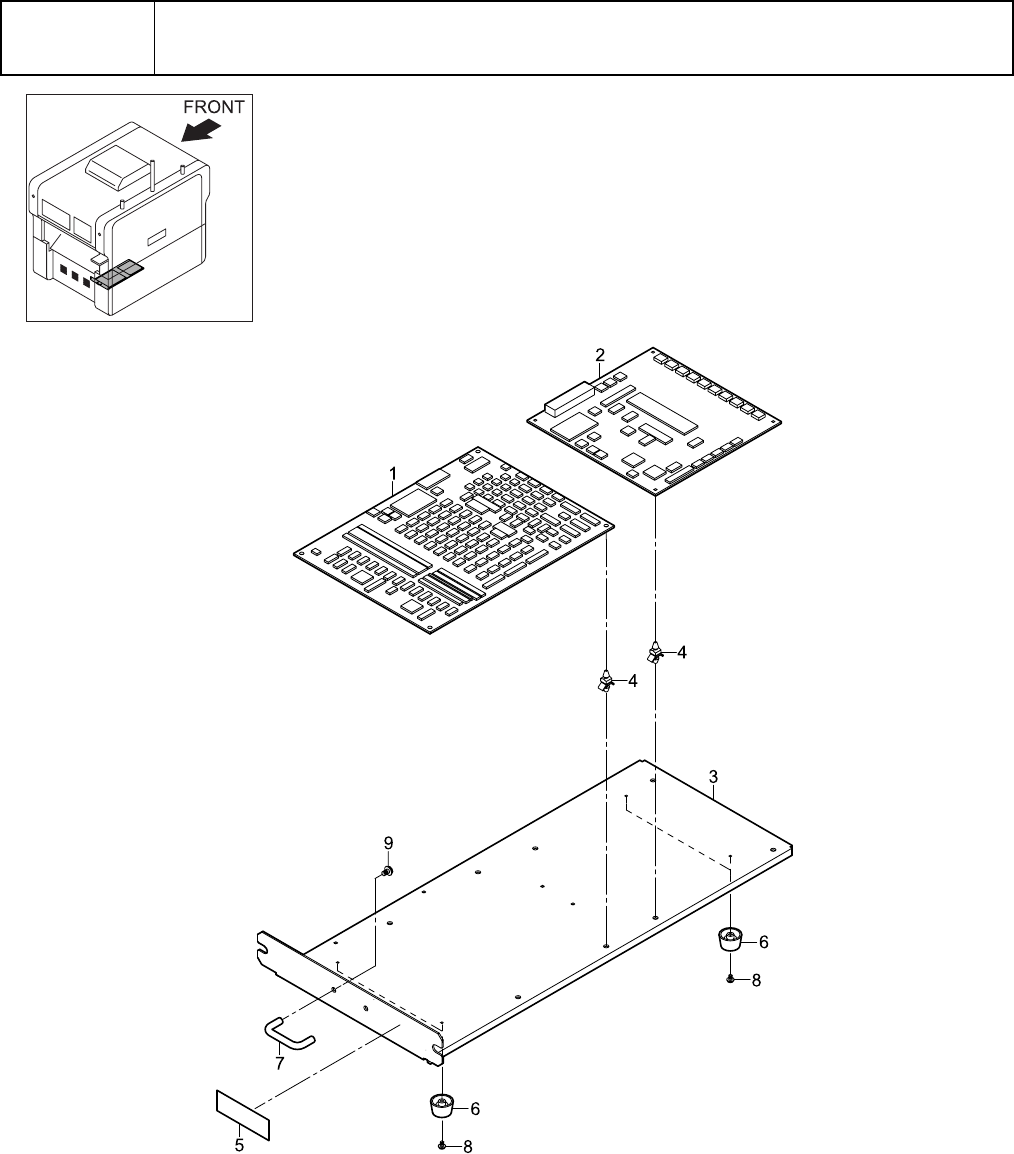

13-8-1
13-8
Ｉ／Ｏ ユニット３
I/O UNIT (3)
13-8-2
13-8
Ｉ／Ｏ ユニット３
I/O UNIT (3)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-789-403-11
EMG I/L
ｷﾊﾞﾝ
3-B ASSY
EMG I/L BOARD 3-B ASSY
1
2 1-789-405-11
LED
ｾｲｷﾞﾖ
ｷﾊﾞﾝ
4 ASSY
LED CONTROL BOARD 4 ASSY
1
3 2-694-416-01
I/O
ﾕﾆﾂﾄ
2,3
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, I/O UNIT 2,3 MAIN
1
4 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
10
KGLS-4S, MORIMIYA
5 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
6 4-707-937-11
ｺﾞﾑ
ｱｼ
(BU-4850 20
ｶﾞﾀ
)
FOOT, RUBBER (BU-4850 20 TYPE)
4
BU-4850 20 TYPE,
SATO PARTS
7 4-711-852-31
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-9)
HANDLE, ROUND BAR (A-1042-C-9)
1
A-1042-C-9, TAKIGEN
8 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
4
+PSW 3X6
9 7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
2
+PSW 4X8
