3-9-1 3-9 ノズルチェンジキッ ト（後側 ） CHANGE (R) K I T , NOZ ZL E 57 59 25 42 33 44 30 29 55 16 19 60 60 35 36 61 6 45 46 18 63 9 9 52 26 4 5 56 27 58 55 61 39 21 15 58 37 51 65 41 14 23 11 65 41 12 22 38 14 48 58 43 62 66 24 50 13…
3-8-4
3-8
ノズルチェンジキット（前側）
CHANGE (F) KIT, NOZZLE
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
53 3-703-360-52
ﾍｲｺｳﾋﾟﾝ
(
ﾌｱｲ
3X10)
PIN, PARALLEL (DIA. 3X10)
10
DIA. 3X10
54 4-706-724-03
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X12SUS)
BOLT (M3X12SUS),HEXAGON SOCKET
2
M3X12SUS
55 4-706-724-06
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X20SUS)
BOLT (M3X20SUS),HEXAGON SOCKET
4
M3X20SUS
56 4-706-724-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X6)
BOLT (M3X6), HEXAGON SOCKET
40
M3X6
57 4-706-725-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X8)
BOLT (M4X8), HEXAGON SOCKET
15
M4X8
58 4-706-725-05
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X20SUS)
BOLT (M4X20SUS),HEXAGON SOCKET
10
M4X20SUS
59 4-706-725-07
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X35SUS)
BOLT (M4X35SUS),HEXAGON SOCKET
4
M4X35SUS
60 4-706-726-05
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X16SUS)
BOLT (M5X16SUS),HEXAGON SOCKET
1
M5X16SUS
61 4-706-726-51
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X12)
BOLT (M5X12), HEXAGON SOCKET
20
M5X12
62 4-706-753-11
ﾂｷﾞﾃ
ﾚｼﾞﾕ
-
ｻ
(KQR06-08)
REJUICER, JOINT (KQR06-08)
1
KQR06-08,SMC
63 4-713-807-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X18)
BOLT, HEXAGON SOCKET (M3X18)
3
M3X18
64 4-714-782-21
ｽﾋﾟ
-
ﾄﾞ
ｺﾝﾄﾛ
-
ﾗ
(AS1201F-M5-04S)
CONTROLLER, SPEED(AS1201F-M5*)
2
AS1201F-M5-04S,SMC
65 4-718-721-04
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M2X6 SUS)
BOLT, HEXAGON SOCKET(M2X6 SUS)
12
M2X6 SUS
66 4-720-189-11
ﾂｷﾞﾃ
ﾁ
-
ｽﾞ
(KQ2T06-00)
JOINT, JOINT TEE (KQ2T06-00)
1
KQ2T06-00,SMC
67 7-632-385-40
ﾎﾟﾘｳﾚﾀﾝﾁﾕ
-
ﾌﾞ
(TU0425B)2.5X4X12M
TUBE, POLYURETHAN (TU0425B)
1
TU0425B,SMC
68 A-1544-284-A
ﾉｽﾞﾙ
ｶ
-
ﾄﾘﾂｼﾞ
ASSY
CARTRIDGE ASSY, NOZZLE
3
3-9-1
3-9

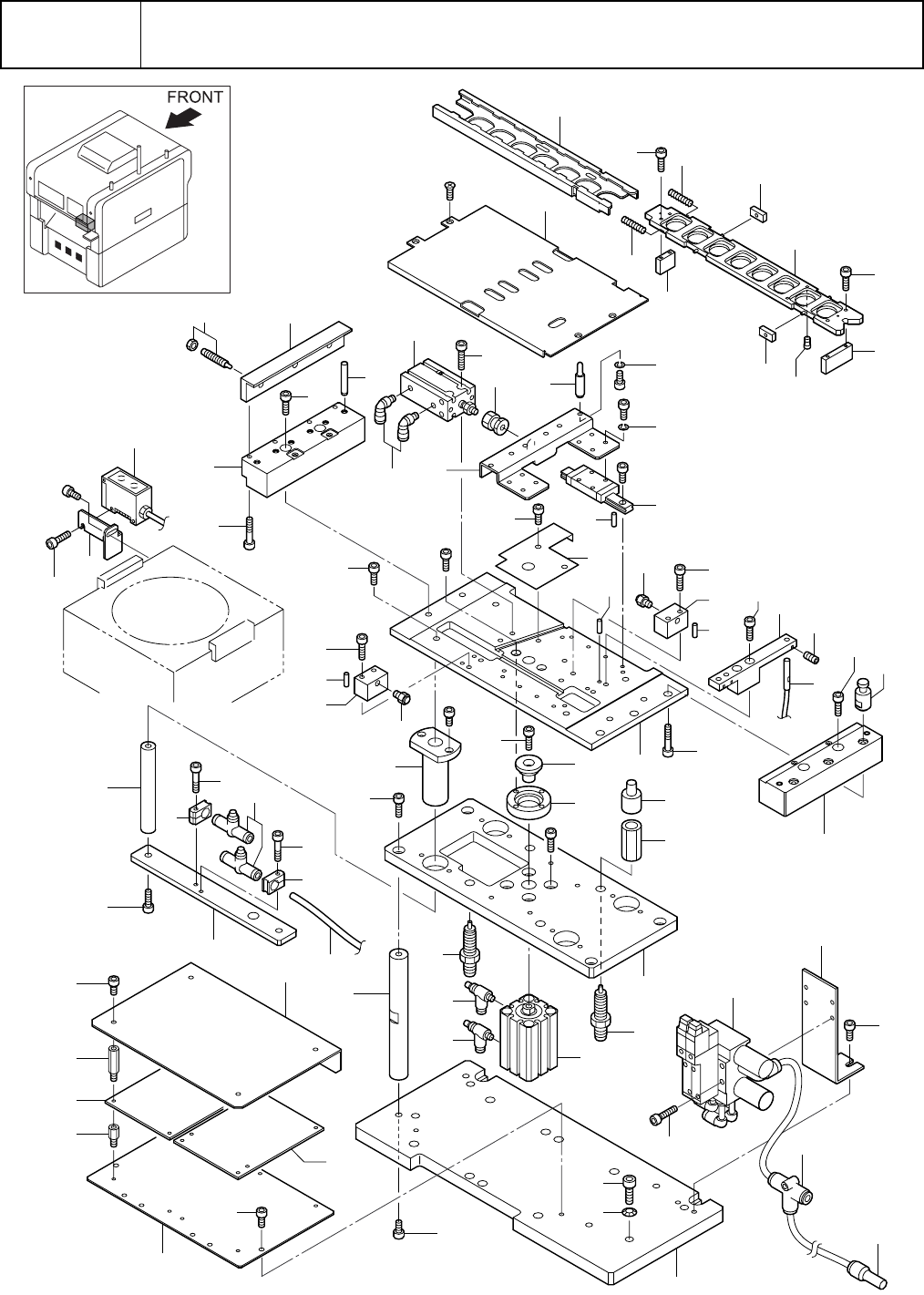

ノズルチェンジキット（後側）
CHANGE (R) KIT, NOZZLE
57
59
25
42
33
44
30
29
55
16
19
60
60
35
36
61
6
45
46
18
63
9
9
52
26
4
5
56
27
58
55
61
39
21
15
58
37
51
65
41
14
23
11
65
41
12
22
38
14
48
58
43
62
66
24
50
13
27
40
1
60
6
47
49
64
64
67
8
63
53
57
53
32
7
7
17
53
53
58
31
00
61
2
20
3
34
54
61
43
28
10
44
68
3-9-2
3-9
ノズルチェンジキット（後側）
CHANGE (R) KIT, NOZZLE
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 3-277-036-01
ｶ
-
ﾄﾘﾂｼﾞ
ﾚﾝｹﾂ
ﾍﾞ
-
ｽ
(
ｳｼﾛ
)
BASE (REAR), CARTRIDGE JOINT
1
REAR
2 1-480-824-11
(S)
ｷﾝｾﾂ
ｾﾝｻ
ASSY (GX-3S)
SENSOR ASSY, (S) APPROACH
3
GX-3S,SUNX
3 1-480-813-11
(S)
ｺｳﾃﾞﾝ
ｽｲﾂﾁ
ASSY (E3G-L11)
SWITCH ASSY, (S) (E3G-L11)
1
E3G-L11,OMRON
4 1-789-652-11
SDIOS-IN 16
ｷﾊﾞﾝ
ASSY
SDIOS-IN 16 BOARD ASSY
1
5 1-789-653-11
SDIOS-OUT 16
ｷﾊﾞﾝ
ASSY
SDIOS-OUT 16 BOARD ASSY
1
6 2-149-044-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X18 SUS)
BOLT, HEXAGON SOCKET (M6X18SUS
8
M6X18 SUS
7 2-913-409-01
ｽﾌﾟﾘﾝｸﾞ
ﾜﾂｼﾔ
3
､
TYPE 2
WASHER (3
､
TYPE 2), SPRING
16
3
､
TYPE 2
8 2-915-874-01
ｽﾋﾟ
-
ﾄﾞ
ｺﾝﾄﾛ
-
ﾗ
(AS1001F-04)
CONTROLLER (AS1001F-04), SPEED
2
AS1001F-04,SMC
9 2-918-785-01
ﾎﾙﾀﾞ
(TMH)
HOLDER (TMH)
2
TMH
10 2-918-852-01
ｴﾙﾎﾞ
ﾕﾆｵﾝ
(KJL04-M5)
UNION (KJL04-M5), ELBOW
2
KJL04-M5,SMC
11 3-277-017-02
ｶ
-
ﾄﾘﾂｼﾞ
ｽﾗｲﾀﾞ
SLIDER, CARTRIDGE
3
12 3-277-018-02
ｶ
-
ﾄﾘﾂｼﾞ
ｶﾊﾞ
-
COVER, CARTRIDGE
1
13 3-277-019-02
ｶ
-
ﾄﾘﾂｼﾞ
ﾍﾞ
-
ｽ
BASE, CARTRIDGE
1
14 3-277-020-02
ｽﾗｲﾄﾞ
ﾌﾞﾛﾂｸ
BLOCK, SLIDE
12
15 3-277-021-02
ｶ
-
ﾄﾘﾂｼﾞ
ｺﾃｲ
ﾌﾞﾛﾂｸ
(
ﾏｴ
)
BLOCK (FRONT), CARTRIDGE FIXED
1
FRONT
16 3-277-022-02
ｶ
-
ﾄﾘﾂｼﾞ
ｺﾃｲ
ﾌﾞﾛﾂｸ
(
ｳｼﾛ
)
BLOCK (REAR), CARTRIDGE FIXED
1
REAR
17 3-277-023-02
ｽﾗｲﾄﾞ
ﾋﾟﾝ
PIN, SLIDE
6
18 3-277-024-02
ｽﾄﾂﾊﾟ
-
ﾌﾟﾚ
-
ﾄ
PLATE, STOPPER
2
19 3-277-025-02
ﾁｴﾝｼﾞﾔ
-
ｼﾁﾕｳ
SUPPORT, CHANGER
4
20 3-277-026-02
ｶ
-
ﾄﾘﾂｼﾞ
ｷｼﾞﾕﾝ
ﾋﾟﾝ
PIN, CARTRIDGE STANDARD
3
21 3-277-027-02
ｶ
-
ﾄﾘﾂｼﾞ
ｶﾞｲﾄﾞ
GUIDE, CARTRIDGE
1
22 3-277-028-02
ｶ
-
ﾄﾘﾂｼﾞ
ｽﾀﾝﾄﾞ
(
ﾏｴ
)
STAND (FRONT), CARTRIDGE
3
FRONT
23 3-277-029-02
ｶ
-
ﾄﾘﾂｼﾞ
ｽﾀﾝﾄﾞ
(
ｳｼﾛ
)
STAND (REAR), CARTRIDGE
3
REAR
24 3-277-038-02
ﾁｴﾝｼﾞﾔ
-
ﾍﾞ
-
ｽ
BASE, CHANGER
1
25 3-277-039-01
ﾃﾞﾝｼﾞ
ﾍﾞﾝ
ﾌﾞﾗｹﾂﾄ
BRACKET, ELECTROMAGNETIC VALVE
1
26 3-277-040-01
ｷﾊﾞﾝ
ﾌﾞﾗｹﾂﾄ
BRACKET, PC BOARD
1
