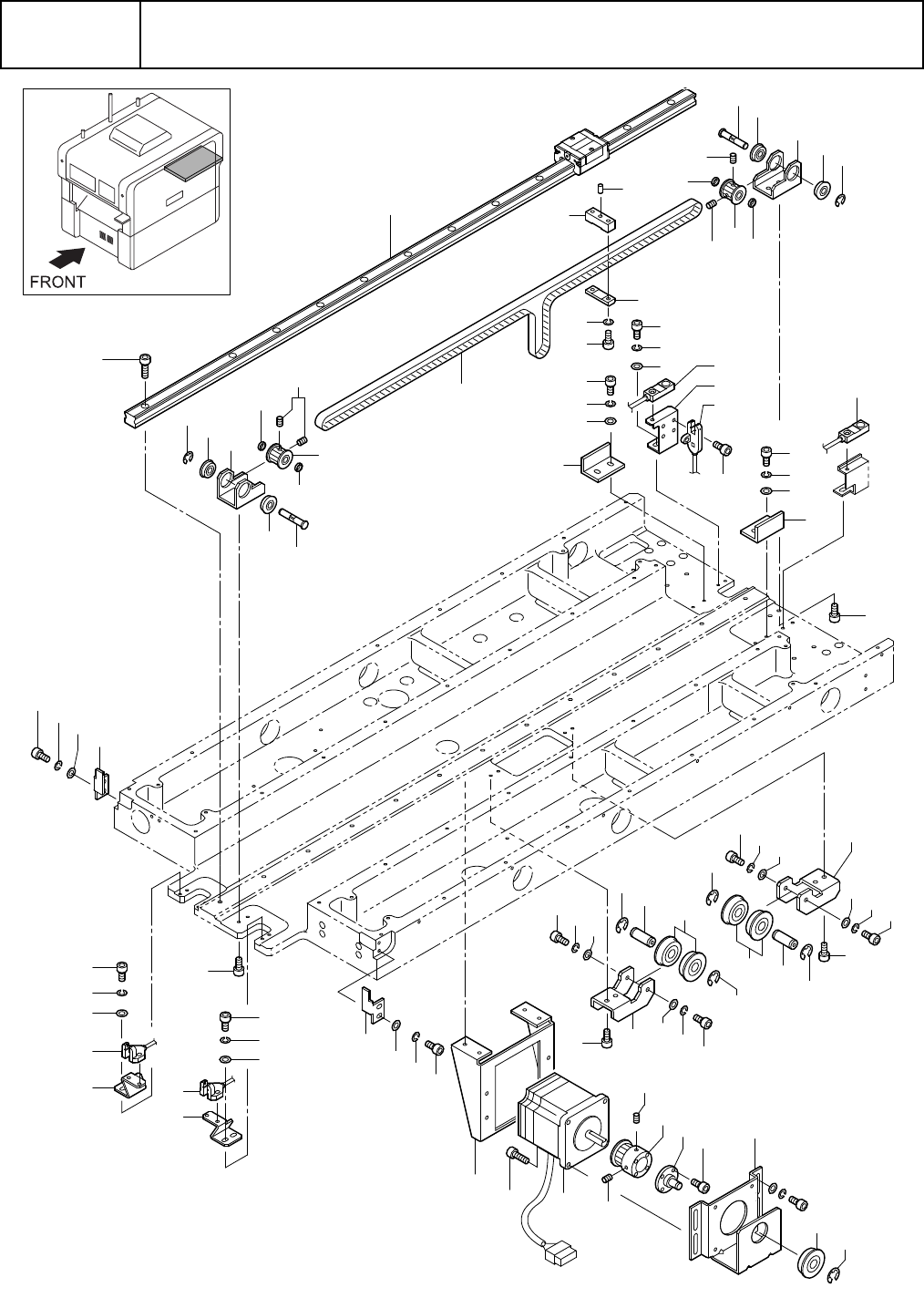

10-3-1
10-3
モータ駆動部ＡＳＳＹ／Ｓ軸
DRIVING BLOCK ASSY, MOTOR / S SHAFT
18
30
38
35
36
35
29
30
28
31
8
32
11
38
31
30
30
38
35
29
28
35
36
6
41
15
33
42
41
15
15
41
42
34
42
41
15
5
3
7
5
13
34
41
42
15
2
9
42
41
15
1
10
42
41
15
21
20
42
41
15
40
40
24
25
14
23
15
41
42
37
19
37
19
27
37
27
42
41
15
37
15
41
42
42
41
15
26
37
19
22
26
17
4
15
15
15
15
10-3-2
10-3
モータ駆動部ＡＳＳＹ／Ｓ軸
DRIVING BLOCK ASSY, MOTOR / S SHAFT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-487-184-11
(S)
ﾌｵﾄｾﾝｻ
ASSY (EE-SX771)
(S) PHOTO SENSOR ASSY (EE-SX771)
1
EE-SX771
2 1-487-185-11
(S)
ﾌｵﾄｾﾝｻ
ASSY (EE-SX871)
(S) PHOTO SENSOR ASSY (EE-SX871)
1
EE-SX871
3 1-487-186-11
(S)
ﾌｵﾄｾﾝｻ
ASSY (EE-SX872)
(S) PHOTO SENSOR ASSY (EE-SX872)
1
EE-SX872
4 1-763-504-11
ｽﾃﾂﾋﾟﾝｸﾞ
ﾓ
-
ﾀ
- (ASM66AC)
MOTOR, STEPPING (ASM66AC)
1
ASM66AC
5 1-487-174-11
(S)
ｷﾝｾﾂ
ｾﾝｻ
ASSY (TL-W1R5MC1)
(S) APPROACH SENSOR ASSY (*)
2
TL-W1R5MC1
6 3-282-377-01
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(1680-3GT-9)
BELT (1680-3GT-9), TIMING
1
1680-3GT-9
7 3-282-563-02
ｵ
-
ﾊﾞ
-
ﾗﾝ
ﾌﾞﾗｹﾂﾄ
BRACKET, OVERRUN
1
8 3-282-574-01
LM
ｶﾞｲﾄﾞ
(SSR15XV1UUE+767LY)
GUIDE (SSR15XV1UUE+767LY), LM
1
SSR15XV1UUE+767LY
9 3-294-572-01
ｾﾝｻ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, SENSOR
1
10 3-294-572-11
ｾﾝｻ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, SENSOR
1
11 3-703-360-10
ﾍｲｺｳﾋﾟﾝ
PIN, PARALLEL
1
- 4-702-261-02
ﾛﾂｶｸ
ｱﾅﾂｷ
ｻﾗ
ﾎﾞﾙﾄ
(M3X6)
BOLT, HEXAGON SOCKET (M3X6)
2
M3X6
13 4-706-724-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X5)
BOLT (M3X5), HEXAGON SOCKET
8
M3X5
14 4-706-724-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X6)
BOLT (M3X6), HEXAGON SOCKET
8
M3X6
15 4-706-724-21
ﾛﾂｶﾅ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X8)
BOLT (M3X8), HEXAGON SOCKET
14
M3X8
- 4-706-724-31
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X10)
BOLT (M3X10), HEXAGON SOCKET
1
M3X10
17 4-706-725-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X10)
BOLT (M4X10), HEXAGON SOCKET
4
M4X10
18 4-706-725-12
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X12SUS)
BOLT (M4X12SUS),HEXAGON SOCKET
13
M4X12SUS
19 4-711-285-01
ﾌﾗﾝｼﾞ
ﾂｷ
ﾐﾆﾁﾕｱ
ﾀﾏ
ｼﾞｸｳｹ
BEARING,MINIATURE BALL(FLANGE)
5
20 4-720-650-01
ﾊﾟﾚﾂﾄ
ｽﾄﾂﾊﾟ
-
STOPPER, PALLET
1
21 4-720-650-11
ﾊﾟﾚﾂﾄ
ｽﾄﾂﾊﾟ
-
STOPPER, PALLET
1
22 4-720-680-01
ﾓ
-
ﾀ
-
ﾌﾟﾚ
-
ﾄ
PLATE, MOTOR
1
23 4-720-681-01
ﾓ
-
ﾀ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, MOTOR
1
24 4-720-682-01
ﾓ
-
ﾀ
-
ﾌﾟ
-
ﾘ
PULLEY, MOTOR
1
25 4-720-683-01
ﾓ
-
ﾀ
-
ﾌﾟ
-
ﾘ
ｼﾔﾌﾄ
SHAFT, MOTOR PULLEY
1
26 4-720-684-01
ｱｲﾄﾞﾗ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, IDLER
2
10-3-3
10-3
モータ駆動部ＡＳＳＹ／Ｓ軸
DRIVING BLOCK ASSY, MOTOR / S SHAFT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
27 4-720-685-01
ｱｲﾄﾞﾗ
-
ｼﾔﾌﾄ
SHAFT, IDLER
2
28 4-720-686-01
ｶﾞｲﾄﾞ
ﾌﾟ
-
ﾘ
ﾌﾞﾗｹﾂﾄ
BRACKET, GUIDE PULLEY
2
29 4-720-687-01
ｶﾞｲﾄﾞ
ﾌﾟ
-
ﾘ
ｼﾔﾌﾄ
SHAFT, GUIDE PULLEY
2
30 4-720-688-01
ｶﾞｲﾄﾞ
ﾌﾟ
-
ﾘ
ｶﾗ
-
COLLAR, GUIDE PULLEY
4
31 4-720-689-01
ｶﾞｲﾄﾞ
ﾌﾟ
-
ﾘ
PULLEY, GUIDE
2
32 4-720-690-01
ﾍﾞﾙﾄ
ｸﾗﾝﾌﾟ
(1)
CLAMP (1), BELT
1
1
33 4-720-691-01
ﾍﾞﾙﾄ
ｸﾗﾝﾌﾟ
(2)
CLAMP (2), BELT
1
2
34 4-720-692-01
ﾁﾔﾂｸ
ｽﾄﾂﾊﾟ
STOPPER, CHUCK
2
35 4-720-699-01
ﾍﾞｱﾘﾝｸﾞ
(F695ZZ)
BEARING (F695ZZ)
4
F695ZZ
36 7-624-000-06
E
ｶﾞﾀ
ﾄﾒﾜ
4 (
ｼﾞｸﾖｳ
)
STOP RING 4, TYPE E
4
37 7-624-000-08
E
ｶﾞﾀ
ﾄﾒﾜ
6 (
ｼﾞｸﾖｳ
)
STOP RING 6, TYPE E
5
38 7-683-237-01
ﾄﾒﾈｼﾞ
6
ｶｸｱﾅ
3X3,
ﾋﾗｻｷ
SET-SCT,HEX. 3X3 FLAT POINT
2
- 7-683-239-08
6
ｶｸ
ｱﾅ
ﾂｷ
ﾄﾒ
ﾈｼﾞ
H3X5
SCREW H3X5
2
40 7-683-246-08
6
ｶｸｱﾅﾂｷ
ﾄﾒﾈｼﾞ
4.0X5,
ﾋﾗｻｷ
SET SCREW 4.0X5, FLAT-POINT
2
41 7-688-000-11
ｽﾌﾟﾘﾝｸﾞ
ﾜﾂｼﾔ
- 3, TYPE2
WASHER, SPRING 3, TYPE2
20
42 7-688-003-11
W 3, MIDDLE
W 3, MIDDLE
12
W 3, MIDDLE
