13-2-2 13-2 ＰＣユニット（後側） PC UNIT (R) ｲﾗｽ ﾄ番号 Re f.No. 部品コ ード Parts Code 部品名 Part s Name Serial No. 個数 Q't y 備考 Rem arks 同期 Repl. 1 1-474-020-11 ATX ﾃﾞﾝ ｹﾞﾝ (EN SP3-450P- S20-H1V POWE R, ATX (EN SP3-450P- S20-H1V 1 ENS…

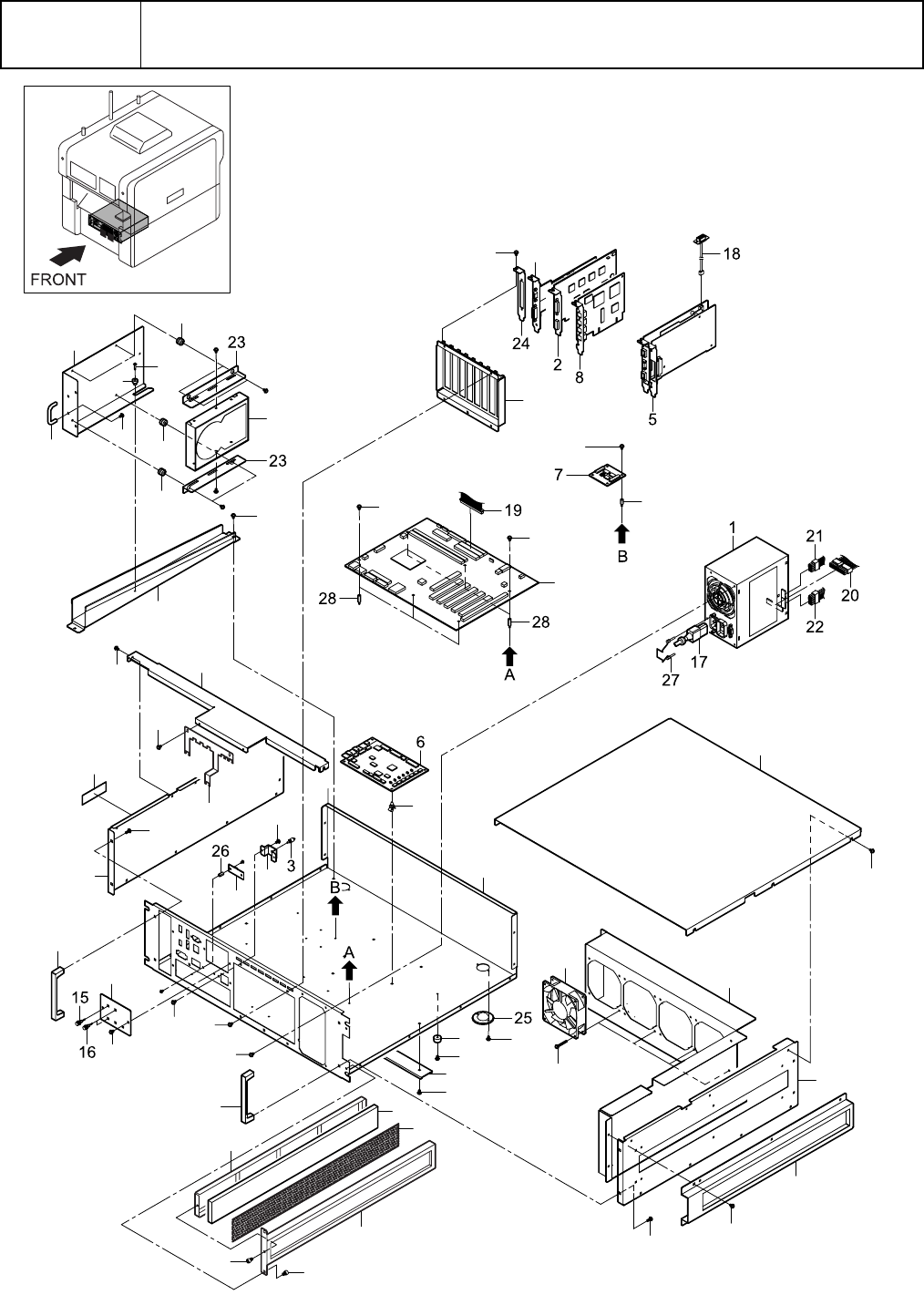

13-2-1
13-2
ＰＣユニット（後側）
PC UNIT (R)
49
58
61
58
41
45
46
42
53
54
39
61
55
59
58
35
32
40
61
57
62
4
34
61
31
51
58
29
61
49
52
47
57
33 30
63
61
37
38
58
48
14
61
48
48
60
61
44
56
43
50
59
59
59
12
36
13
59
13-2-2
13-2
ＰＣユニット（後側）
PC UNIT (R)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-474-020-11
ATX
ﾃﾞﾝｹﾞﾝ
(ENSP3-450P-S20-H1V
POWER, ATX (ENSP3-450P-S20-H1V
1
ENSP3-450P-S20-H1V,
NIPRON
2 1-761-984-11
ﾌﾚ
-
ﾑ
ｸﾞﾗﾊﾞ
(ASP-8504X-SMD4)
GRABBER, FRAME (ASP-8504X-SMD4
1
ASP-8504X-SMD4
3 1-786-766-11
ｵｼﾎﾞﾀﾝ
ｽｲﾂﾁ
(FB-15ANP2)
SWITCH, PUSH BUTTON (FB-15ANP2
1
FB-15ANP2, NKK
4 1-480-817-11
(S) DC
ﾌｱﾝ
ASSY (109P)
FAN ASSY, (S) DC (109P)
4
109P
5 1-789-485-11
SY-MC2
ﾎﾞ
-
ﾄﾞ
ASSY
BOARD ASSY, SY-MC2
1
6 1-789-538-12
RAS
ｷﾊﾞﾝ
2 ASSY (LED
ｷﾊﾞﾝ
ﾅｼ
)
RAS BOARD 2 ASSY
1
7 1-789-539-12
USB
ｼﾘｱﾙ
ﾍﾝｶﾝ
ｷﾊﾞﾝ
ASSY
USB SERIALCONVERSIONBOARD ASSY
1
8 1-789-598-11
PCI
ﾊﾞｽ
ｼﾘｱﾙ
DIO
ｵﾔｷﾖｸ
ｷﾊﾞﾝ
ASSY
PCIBUS SDIO-M BOARD ASSY
1
12 1-797-651-12
ATX
ﾏｻﾞ
-
ﾎﾞ
-
ﾄﾞ
(FB6F-L-4M)
BOARD, ATX MOTHER (FB6F-L-4M)
1
FB6F-L-4M, RICOH
13 1-797-652-11
ｸﾞﾗﾌｲﾂｸ
ｶ
-
ﾄﾞ
(MIL G550EX/D32AD
CARD, GRAPHIC (MIL G550EX/D32A
1
14 1-797-899-11
ﾊ
-
ﾄﾞ
ﾃﾞｲｽｸ
(HDS721680PLAT80)
DISK, HARD (HDS721680PLAT80)
1
HDS721680PLAT80, HITACHI
15 1-805-664-11
LED
ﾋﾖｳｼﾞﾄｳ
(UP06-67G)
INDICATOR LIGHT, LED (UP06-67G
1
UP06-67G
16 1-805-664-21
LED
ﾋﾖｳｼﾞﾄｳ
(UP06-67R)
NDICATOR LIGHT, LED (UP06-67R
2
UP06-67R
17 1-829-542-11
ﾃﾞﾝｹﾞﾝ
ｹ
-
ﾌﾞﾙ
(CESTS-2)
CABLE, POWER (CESTS-2)
1
CESTS-2
18 1-832-181-11
SYMC2
ｼﾘｱﾙ
ｹ
-
ﾌﾞﾙ
CABLE, SYMC2 SERIAL
1
19 1-833-191-11
ATA133
ﾖｳ
ｹ
-
ﾌﾞﾙ
(RF-171)
CABLE, ATA133 (RF-171)
1
RF-171, AINEX
20 1-833-192-11
ATX
ﾃﾞﾝｹﾞﾝ
ｹ
-
ﾌﾞﾙ
(WH-M2024-500
CABLE, ATX POWER (WH-M2024-500
1
21 1-833-193-11
ATX
ﾃﾞﾝｹﾞﾝ
ｹ
-
ﾌﾞﾙ
(WH-V0408-500
CABLE, ATX POWER (WH-V0408-500
1
22 1-833-194-11
ATX
ﾃﾞﾝｹﾞﾝ
ｹ
-
ﾌﾞﾙ
(WH-PP610-850
CABLE, ATX POWER (WH-PP610-850
1
23 2-148-234-02
PC
ﾕﾆﾂﾄ
3.5HDD
ｿｸﾒﾝ
ﾌﾞﾗｹﾂﾄ
BRACKET
2
24 2-148-238-01
PC
ﾕﾆﾂﾄ
FDD
ｺﾈｸﾀ
ﾊﾟﾈﾙ
PC UNIT FDD CONNECTOR PANEL
1
25 2-149-015-01
ﾎﾞ
-
ﾙ
ｷﾔｽﾀ
- (K-142-5L)
CASTER, BALL (K-142-5L)
2
K-142-5L, TAKIGEN
26 2-149-016-01
ｽﾍﾟ
-
ｻ
(SP-10)
SPACER (SP-10)
2
SP-10
27 2-149-019-01
ｹ
-
ﾌﾞﾙ
ﾛﾂｸ
ｶﾅｸﾞ
(KT01S-KTN6)
BRACKET, CABLE LOCK (KT01S-KTN
1
KT01S-KTN6, MISUMI
28 2-149-043-01
ｽﾍﾟ
-
ｻ
(SQ-15)
SPACER (SQ-15)
6
SQ-15
29 2-696-250-01
PC
ﾕﾆﾂﾄ
LED
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
BRACKET, PC UNIT LED FITTING
1
13-2-3
13-2
ＰＣユニット（後側）
PC UNIT (R)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
30 2-696-251-01
PC
ﾕﾆﾂﾄ
ｽｲﾂﾁ
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
BRACKET,PC UNIT SWITCH FITTING
1
31 2-696-255-02
PC
ﾕﾆﾂﾄ
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, PC UNIT (MAIN)
1
32 2-696-256-02
PC
ﾕﾆﾂﾄ
ｿｸﾒﾝ
ﾊﾟﾈﾙ
(
ﾐｷﾞ
)
PANEL (RIGHT), PC UNIT (SIDE)
1
33 2-696-257-02
PC
ﾕﾆﾂﾄ
ｿｸﾒﾝ
ﾊﾟﾈﾙ
(
ﾋﾀﾞﾘ
)
PANEL (LEFT), PC UNIT (SIDE)
1
34 2-696-258-01
PC
ﾕﾆﾂﾄ
ｼﾞﾖｳﾒﾝ
ﾊﾟﾈﾙ
PANEL, PC UNIT (UPPER)
1
35 2-696-259-02
PC
ﾕﾆﾂﾄ
ﾌｱﾝ
ﾄﾘﾂｹ
ﾊﾟﾈﾙ
PANEL, PC UNIT FAN FITTING
1
36 2-696-260-01
PC
ﾕﾆﾂﾄ
ｷﾊﾞﾝ
ﾄﾘﾂｹ
ﾊﾟﾈﾙ
PANEL,PC UNIT PC BOARD FITTING
1
37 2-696-261-02
PC
ﾕﾆﾂﾄ
ｽﾗｲﾄﾞ
ｶﾞｲﾄﾞ
GUIDE, PC UNIT SLIDE
1
38 2-696-262-01
PC
ﾕﾆﾂﾄ
ﾎｷﾖｳ
ｲﾀ
(1)
PLATE (1), REINFORCEMENT
1
39 2-696-263-01
PC
ﾕﾆﾂﾄ
ﾎｷﾖｳ
ｲﾀ
(2)
PLATE (2), REINFORCEMENT
1
40 2-696-264-02
PC
ﾕﾆﾂﾄ
ﾌｲﾙﾀ
-
ｼﾕｳﾉｳ
ﾊﾟﾈﾙ
PANEL, PC UNIT FILTER RECEIVE
1
41 2-696-265-02
PC
ﾕﾆﾂﾄ
ｷﾕｳｷ
ﾊﾟﾈﾙ
PANEL, PC UNIT INTAKE
1
42 2-696-266-02
PC
ﾕﾆﾂﾄ
ﾌｲﾙﾀ
-
ｵｻｴ
ﾊﾟﾈﾙ
PANEL, PC UNIT FILTER RETAINER
1
43 2-696-267-02
PC
ﾕﾆﾂﾄ
3.5HDD
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
BRACKET,PC UNIT 3.5HDD FITTING
1
44 2-697-040-01
ｼﾞﾕｼ
ｶﾗ
- (CLJHJ4-6-10)
COLLAR (CLJHJ4-6-10), RESIN
1
CLJHJ4-6-10
45 2-697-041-01
ﾌｲﾙﾀ
- (MF13-10)
FILTER (MF13-10)
1
MF13-10
46 3-212-362-01
PC
ﾕﾆﾂﾄ
ﾌｲﾙﾀ
-
ﾖｳ
ﾊﾟﾈﾙ
PANEL, PC UNIT FILTER
1
47 3-285-694-01
PC
ﾕﾆﾂﾄ
ｷﾊﾞﾝ
ｵｻｴ
(1)
RETAINER (1), PC UNIT PC BOARD
1
48 4-092-143-01
ﾌｱﾝ
ｸﾂｼﾖﾝ
CUSHION, FAN
4
49 4-705-232-11
ｶｸｶﾞﾀ
3
ｺﾞｳ
ﾄﾂﾃ
(A165-4)
HANDLE 3, SQUARE (165-4)
2
A165-4
50 4-705-584-11
ｽﾍﾟ
-
ｻ
(SQ-10)
SPACER (SQ-10)
4
SQ-10
51 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
4
KGLS-4S, MORIMIYA
52 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
53 4-706-725-02
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X5SUS)
BOLT (M4X5SUS), HEXAGON SOCKET
1
M4X5SUS
54 4-706-725-51
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X6)
BOLT (M4X6), HEXAGON SOCKET
2
M4X6
55 4-707-937-01
ｺﾞﾑ
ｱｼ
(BU-4850 15
ｶﾞﾀ
)
FOOT (BU-4850 15 TYPE), RUBBER
4
BU-4850 15 TYPE,
SATO PARTS
